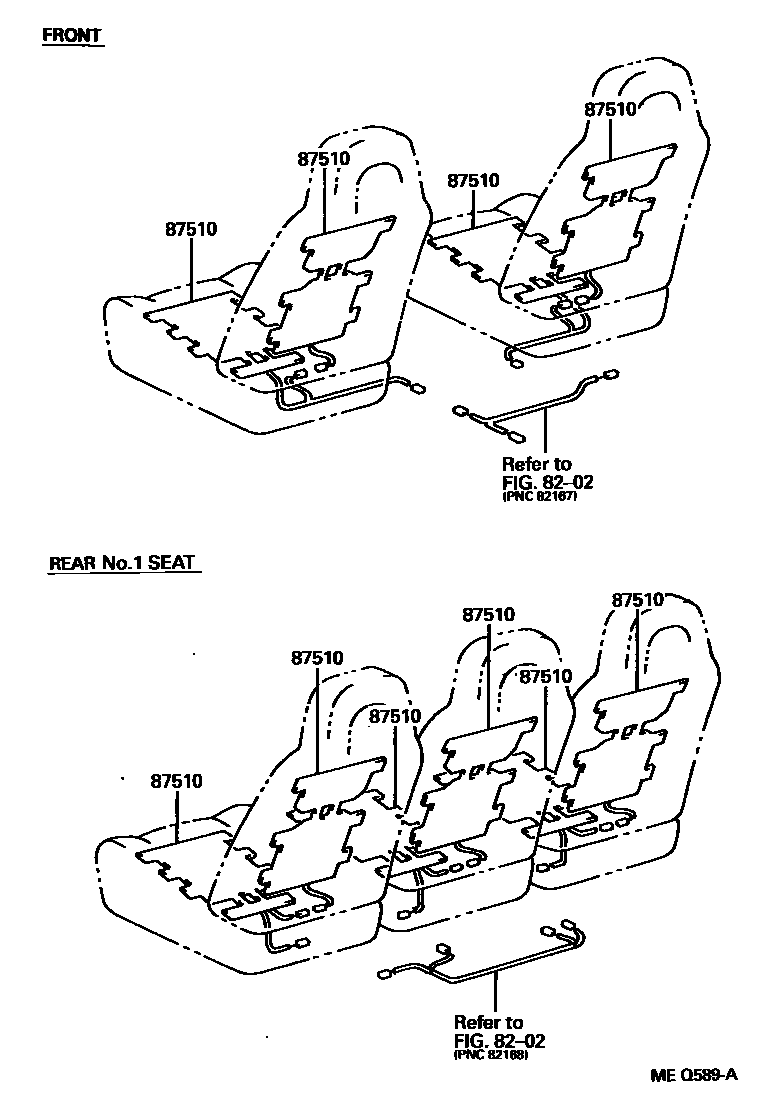

SEAT MOTOR & SEAT HEATER

8202WIRING & CLAMP

→ Go to FIG 82-02

87510HEATER ASSY, SEAT

main87510-28040iTCR1#,2#..LHD199108-199308

FR SEAT CUSHION,RH

main87510-28070iTCR1#,2#..LHD..W199308-199608

FR SEAT CUSHION,RH

main87510-28080iTCR1#,2#..LHD..W199308-199608

FR SEAT CUSHION,LH

main87510-28090×2iTCR1#,2#..LHD..W199308-199608

FR SEAT BACK

main87510-95D04iTCR1#,21..LHD199005-199108

FR SEAT CUSHION,LH

main87510-95D05×2iTCR1#,21..LHD199005-199108

FR SEAT BACK

main87510-95D06×3iTCR1#,2#..LHD199108-199308

RR NO.1 SEAT CUSHION

main87510-95D07×3iTCR1#,2#..LHD199108-199308

RR NO.1 SEAT BACK

2 parts on this diagram · 1 diagram in section
