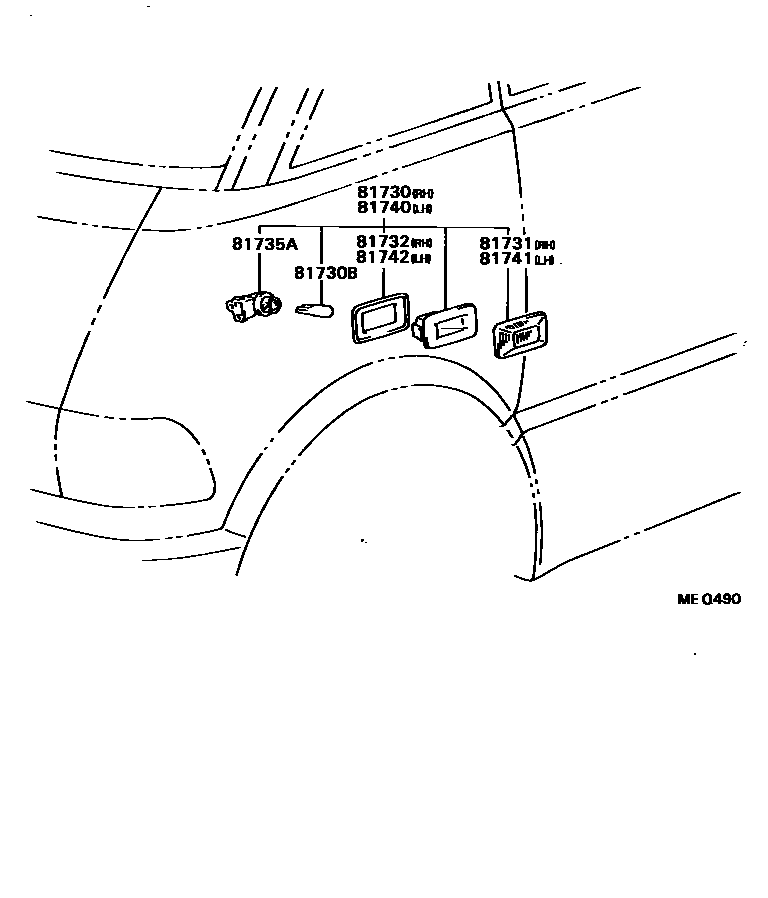

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-20190iTCR1#,2#199005-199008

main81730-20191iTCR1#,2#199008-199912

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iTCR1#,2#199005-199912

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-20190iTCR1#,2#199005-199008

main81731-20191iTCR1#,2#199008-199912

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-20190iTCR1#,2#199005-199912

81735ASOCKET & WIRE, SIDE TURN SIGNAL LAMP

main90075-99012×2iTCR1#,2#199005-199912

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-20190iTCR1#,2#199005-199008

main81730-20191iTCR1#,2#199008-199912

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-20190iTCR1#,2#199005-199008

main81731-20191iTCR1#,2#199008-199912

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-20190iTCR1#,2#199005-199912

8 parts on this diagram · 1 diagram in section
