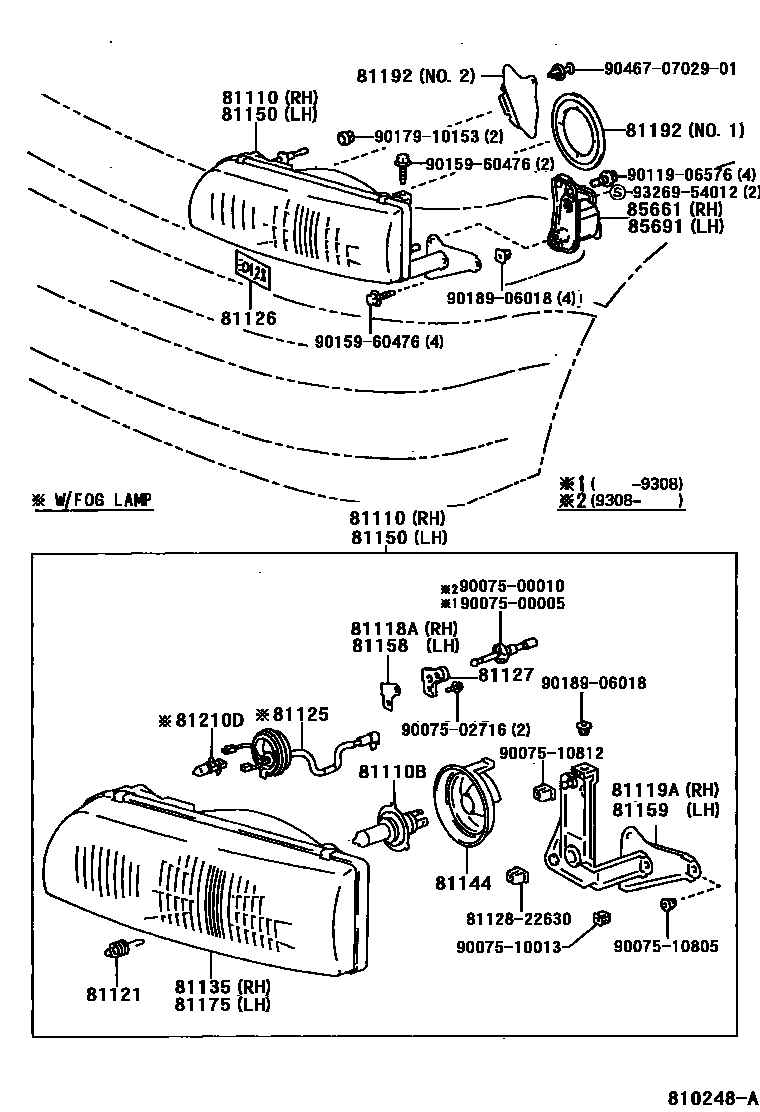

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-28340iTCR11..RHD..W199212-199308

main81110-28341iTCR11..RHD..W199308-199608

main81110-28342iTCR11..RHD..W199608-199912

main81110-28350iTCR1#,21..ARL199212-199308

main81110-28351iTCR1#..ARL; TCR11..RHD..MTM199308-199608

W/O(LEVELING MOTOR)

main81110-28352iTCR1#..ARL; TCR11..RHD..MTM199608-199912

W/O(LEVELING MOTOR)

main81110-28360iTCR1#,2#..LHD199212-199308

main81110-28361iTCR1#,2#..LHD199308-199608

main81110-28362iTCR10..LHD..ATM; TCR11..LHD..MTM199608-199912

DENMARK SPEC & EUROPE N1 SPEC

main81110-28370iTCR1#,21..LHD; TCR11..RHD..W199212-199308

RH,TRAFIC SPEC; W(LEVELING)

main81110-28371iTCR11..RHD..W199308-199608

RH,TRAFIC SPEC

main81110-28372iTCR1#,2#..LHD..W; TCR11..RHD..W199608-199912

RH,TRAFIC SPEC

main81110-28400iTCR11..ARL199408-199608

W(FR FOG LAMP)

main81110-28401iTCR11..ARL199608-199912

W(FR FOG LAMP)

main81110-95D04iTCR1#,2#..LHD199005-199212

main81110-95D05iTCR1#,21..LHD199005-199211

FRANCE SPEC

main81110-95D06iTCR1#,21..LHD; TCR11..RHD..W199005-199212

RH,TRAFIC SPEC; W(LEVELING)

main81110-95D07iTCR1#,2#..ARL199005-199212

main81110-95D08iTCR11..RHD..W199005-199212

main81110-95D09iTCR1#,2#..ARL199005-199308

W(FR FOG LAMP)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iTCR1#,2#199005-199212

12V 60/55W,*HAL *WH

main90981-13016×2iTCR1#,21..LHD199005-199211

12V 60/55W,*HAL *YE,FRANCE SPEC

main90981-22004×2iTCR10,2#;TCR11..ARL;TCR11..LHD; TCR11..RHD..W199212-199308

12V 60/55W,*HAL *WH; 12V 60/55W,*HAL *WH,RH,TRAFIC SPEC

81118ABRACKET, HEADLAMP, RH

main81118-95D01iTCR1#,2#199005-199912

81119ABRACKET ASSY, HEAD LAMP, RH

main81119-28310iTCR1#..ARL,GEN,V; TCR11..LHD..MTM199608-199912

DENMARK SPEC & EUROPE N1 SPEC

main81119-28371iTCR1#..LHD..W199308-199401

W(LEVELING)

main81119-95D01iTCR10,2#;TCR11..ARL;TCR11..LHD199005-199308

main81119-95D06iTCR1#,21..LHD; TCR11..RHD..W199005-199308

W(LEVELING)

81121SPRING, HEADLAMP TENSION

main90075-25505×2iTCR1#,2#199005-199912

81125CORD, HEADLAMP

main81125-95D01×2iTCR1#,2#199308-199912

81126PLATE, HEADLAMP

main81126-95J00×2iTCR1#,2#..W199401-199608

W(LEVELING)

81127BEARING, HEADLAMP, NO.1

main81129-95D01iTCR1#,2#199005-199912

RH

main81169-95D01iTCR1#,2#199005-199912

LH

81135UNIT ASSY, HEADLAMP, RH

main81130-28340iTCR11..RHD..W199308-199608

main81130-28342iTCR11..RHD..W199608-199912

main81130-28350iTCR1#,21..ARL199212-199608

main81130-28352iTCR1#..ARL; TCR11..RHD..MTM199608-199912

W/O(LEVELING MOTOR)

main81130-28360iTCR1#,2#..LHD199212-199608

main81130-28362iTCR10..LHD..ATM; TCR11..LHD..MTM199608-199912

DENMARK SPEC & EUROPE N1 SPEC

main81130-28370iTCR1#,21..LHD199212-199308

W(LEVELING)

main81130-28372iTCR1#,2#..LHD..W; TCR11..RHD..W199608-199912

RH,TRAFIC SPEC

main81130-28401iTCR11..ARL199608-199912

W(FR FOG LAMP)

main81130-95D04iTCR1#,2#..LHD; TCR11..RHD..W199005-199212

RH,TRAFIC SPEC

main81130-95D07iTCR11..RHD..W199212-199308

main81130-95D09iTCR11..ARL199408-199608

W(FR FOG LAMP)

81144COVER, HEADLAMP, NO.1

main81139-10450×2iTCR1#,2#199005-199912

81150HEADLAMP ASSY, LH

main81150-28340iTCR11..RHD..W199212-199308

main81150-28341iTCR11..RHD..W199308-199608

main81150-28342iTCR11..RHD..W199608-199912

main81150-28350iTCR1#,21..ARL199212-199308

main81150-28351iTCR1#..ARL; TCR11..RHD..MTM199308-199608

W/O(LEVELING MOTOR)

main81150-28352iTCR1#..ARL; TCR11..RHD..MTM199608-199912

W/O(LEVELING MOTOR)

main81150-28360iTCR1#,2#..LHD199212-199308

main81150-28361iTCR1#,2#..LHD199308-199608

main81150-28362iTCR10..LHD..ATM; TCR11..LHD..MTM199608-199912

DENMARK SPEC & EUROPE N1 SPEC

main81150-28370iTCR1#,21..LHD; TCR11..RHD..W199212-199308

RH,TRAFIC SPEC; W(LEVELING)

main81150-28371iTCR1#,2#..LHD..W199401-199608

W(LEVELING)

main81150-28372iTCR1#,2#..LHD..W; TCR11..RHD..W199608-199912

RH,TRAFIC SPEC

main81150-28400iTCR1#..ARL199308-199408

W(FR FOG LAMP)

main81150-28401iTCR11..ARL199608-199912

W(FR FOG LAMP)

main81150-95D04iTCR1#,2#..LHD199005-199212

main81150-95D05iTCR1#,21..LHD199005-199211

FRANCE SPEC

main81150-95D06iTCR1#,21..LHD; TCR11..RHD..W199005-199212

RH,TRAFIC SPEC; W(LEVELING)

main81150-95D07iTCR1#,2#..ARL199005-199212

main81150-95D08iTCR11..RHD..W199005-199212

main81150-95D09iTCR1#,2#..ARL199005-199308

W(FR FOG LAMP)

81158BRACKET, HEADLAMP, LH

main81118-95D01iTCR1#,2#199005-199912

81159BRACKET ASSY, HEAD LAMP, LH

main81159-28310iTCR10,2#;TCR11..ARL;TCR11..LHD199308-199608

main81159-28371iTCR1#,2#..W199608-199912

main81159-95D01iTCR10,2#;TCR11..ARL;TCR11..LHD199005-199308

main81159-95D06iTCR1#,21..LHD; TCR11..RHD..W199005-199308

W(LEVELING)

81175UNIT ASSY, HEADLAMP, LH

main81170-28340iTCR11..RHD..W199308-199608

main81170-28342iTCR11..RHD..W199608-199912

main81170-28350iTCR11..RHD..MTM199308-199608

W/O(LEVELING MOTOR)

main81170-28352iTCR1#..ARL; TCR11..RHD..MTM199608-199912

W/O(LEVELING MOTOR)

main81170-28360iTCR1#,2#..LHD199212-199608

main81170-28362iTCR10..LHD..ATM; TCR11..LHD..MTM199608-199912

W(LEVELING)

main81170-28370iTCR1#..LHD..W199308-199401

W(LEVELING)

main81170-28372iTCR1#,2#..LHD..W; TCR11..RHD..W199608-199912

RH,TRAFIC SPEC

main81170-28401iTCR11..ARL199608-199912

W(FR FOG LAMP)

main81170-95D04iTCR21..W199212-199308

FRANCE SPEC

main81170-95D07iTCR11..RHD..W199212-199308

main81170-95D09iTCR1#,2#..ARL199005-199408

W(FR FOG LAMP)

81192SEAL, HEADLAMP

main81192-28010×2iTCR1#,2#199005-199912

NO.1

main81192-28020iTCR1#,2#199005-199912

NO.2

81210DBULB, FOG LAMP

main90981-13017×2iTCR1#,2#..ARL199005-199408

12V 55W,*HAL *WH

85661MOTOR, HEADLAMP LEVELING, RH

main85661-95D00iTCR1#..LHD..W; TCR2#199401-199608

*FRG OR FINLAND SPEC; FINLAND SPEC

85691MOTOR, HEADLAMP LEVELING, LH

main85691-95D00iTCR1#,21..LHD199005-199308

*FRG

8112822630NUT, HEADLAMP

main81128-22630

9007500005

main90075-00005

9007500010

main90075-00010

9007502716

main90075-02716

9007510013

main90075-10013

9007510805

main90075-10805

9007510812

main90075-10812

9011906576

main90119-06576

9015960476

main90159-60476

9017910153

main90179-10153

9018906018

main90189-06018

904670702901

main90467-0702901

9326954012

main93269-54012

31 parts on this diagram · 1 diagram in section
