E
EPC Data

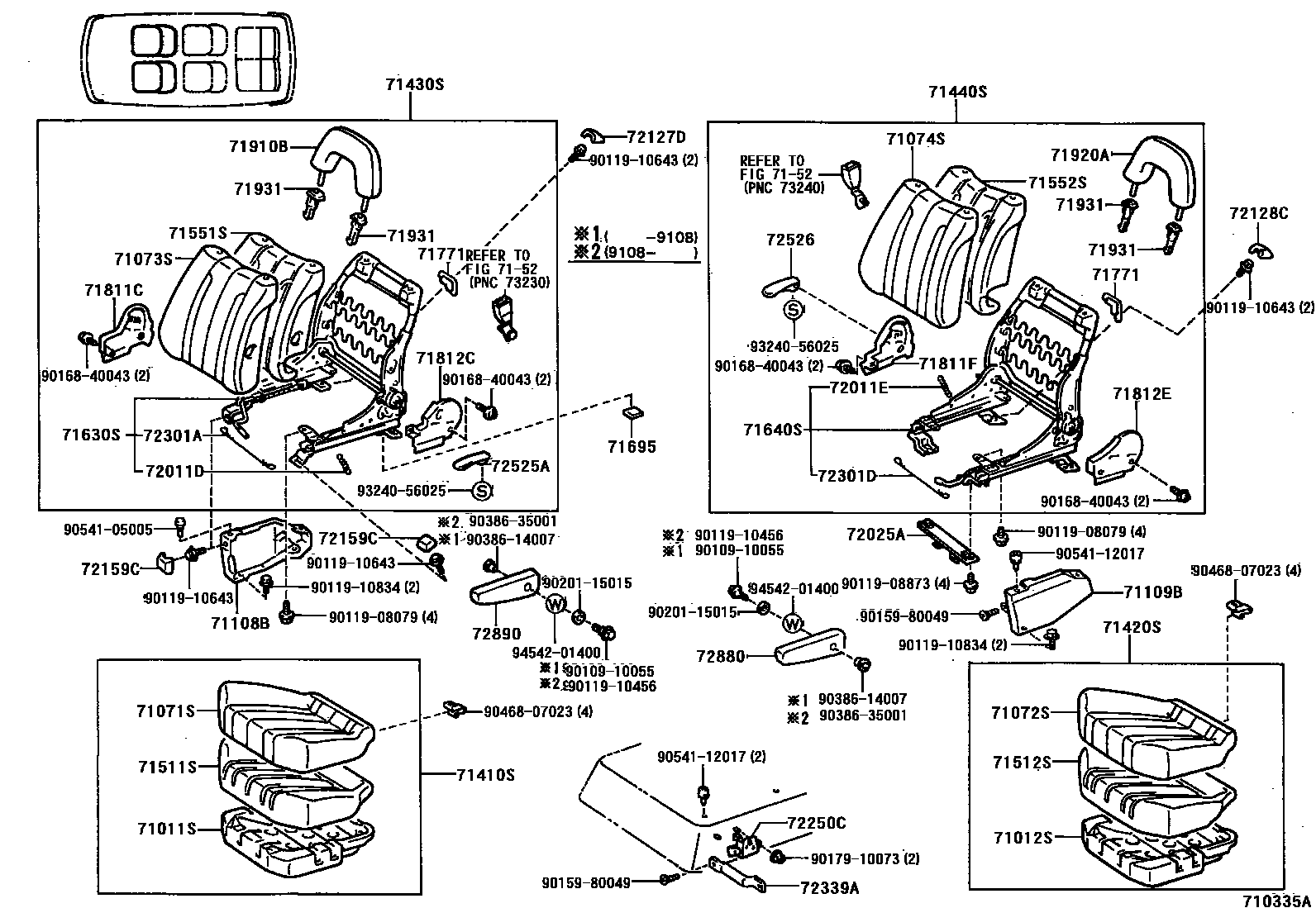

SEAT & SEAT TRACK

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-28160i199608-199912
main71011-95D03i199005-199608
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-28160i199608-199912
W(CAPTAIN SEAT)
main71012-28130i199801-199912
main71012-95D00i199005-199608
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-28090-03i199108-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-28100-03i199005-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-28100-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71071-28100-E0i199108-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71071-28110-03i199005-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-28110-05i199005-199108
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71071-28110-E0i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71071-28470-B1i199308-199608
LIGHT GRAY,TRIM1#
main71071-28480-B1i199308-199608
LIGHT GRAY,TRIM1#
main71071-28480-E2i199308-199608
LIGHT GREIGE,TRIM4#
main71071-28500-B1i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-28510-B1i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-28510-E1i199308-199608
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71071-28520-B1i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71071-28520-E1i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71071-28530-B1i199308-199608
LIGHT GRAY,TRIM1#
main71071-28530-E1i199508-199608
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71071-28730-B0i199608-199912
BLUISH GRAY,TRIM1#
main71071-28730-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71071-28840-B0i199608-199801
BLUISH GRAY,TRIM1#
main71071-28840-E0i199608-199801
MD.GREIGE,TRIM4#
main71071-28841-B1i199801-199912
BLUISH GRAY,TRIM1#
main71071-28860-B0i199608-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-28870-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-28871-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-28880-B2i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-28881-B3i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-28890-B2i199608-199801
BLUISH GRAY,TRIM1#
main71071-28890-E2i199608-199801
W(CAPTAIN SEAT),MEDIUM GREGE,TRIM4#
main71071-28891-B3i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71071-2J010-B2i199801-199912
MI.GRAY,TRIM1#
main71071-2J010-E0i199608-199801
MD. GREIGE,TRIM4#
main71071-2J180-B0i199603-199604
SPECIAL EDITION(SWITZERLAND),BLUISH GRAY,TRIM1
main71071-2J350-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71071-95D06-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71071-95D06-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71071-95D06-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71071-95D09-03i199005-199308
LIGHT GRAY,TRIM1#
main71071-95D10-03i199108-199308
LIGHT GRAY,TRIM1#
main71071-95D10-05i199005-199108
LIGHT GREIGE,TRIM4#
main71071-95D10-E1i199108-199308
LIGHT GREIGE,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-28891-B3i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71072-28090-03i199108-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-28100-03i199005-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-28100-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71072-28100-E1i199108-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71072-28110-03i199005-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-28110-05i199005-199108
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71072-28110-E0i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71072-28470-B1i199308-199608
LIGHT GRAY,TRIM1#
main71072-28480-B1i199308-199608
LIGHT GRAY,TRIM1#
main71072-28480-E2i199308-199608
LIGHT GREIGE,TRIM4#
main71072-28500-B1i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-28510-B1i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-28510-E1i199308-199608
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71072-28520-B1i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71072-28520-E1i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71072-28530-B1i199308-199608
LIGHT GRAY,TRIM1#
main71072-28530-E1i199308-199608
LIGHT GREIGE,TRIM4#
main71072-28720-B0i199608-199912
BLUISH GRAY,TRIM1#
main71072-28720-E0i199705-199801
MD. GREIGE,TRIM4#
main71072-28830-B0i199608-199801
BLUISH GRAY,TRIM1#
main71072-28830-E0i199608-199801
MD.GREIGE,TRIM4#
main71072-28831-B1i199801-199912
BLUISH GRAY,TRIM1#
main71072-28850-B0i199608-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-28860-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-28861-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-28870-B2i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-28871-B3i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-28880-B2i199608-199801
BLUISH GRAY,TRIM1#
main71072-28880-E2i199608-199801
W(CAPTAIN SEAT),MEDIUM GREGE,TRIM4#
main71072-28890-B2i199801-199912
W(LEATHER SEAT),MI.GRAY,TRIM1#
main71072-28890-E0i199608-199801
W(LEATHER SEAT),MD.GREIGE,TRIM4#
main71072-2J160-B0i199603-199604
SPECIAL EDITION(SWITZERLAND),BLUISH GRAY,TRIM1
main71072-2J330-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71072-95D06-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71072-95D06-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71072-95D06-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71072-95D07-03i199005-199108
LIGHT GRAY,TRIM1#
main71072-95D07-05i199005-199108
LIGHT GREIGE,TRIM4#
main71072-95D07-E3i199108-199308
LIGHT GREIGE,TRIM4#
main71072-95D09-03i199005-199308
LIGHT GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-28090-03i199005-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28100-03i199005-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28100-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28110-03i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28110-05i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28111-B0i199108-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28111-E0i199108-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28120-03i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28120-05i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28121-B0i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28121-E0i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28130-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71073-28130-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71073-28131-B0i199108-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71073-28131-E0i199108-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71073-28140-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71073-28140-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71073-28141-B0i199108-199308
LIGHT GRAY,TRIM1#
main71073-28141-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71073-28160-B0i199108-199308
LIGHT GRAY,TRIM1#
main71073-28160-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71073-28380-B1i199308-199608
LIGHT GRAY,TRIM1#
main71073-28400-B2i199308-199508
LIGHT GRAY,TRIM1#
main71073-28400-E3i199308-199508
LIGHT GREIGE,TRIM4#
main71073-28420-B1i199308-199508
LIGHT GRAY,TRIM1#
main71073-28420-E1i199308-199508
LIGHT GREIGE,TRIM4#
main71073-28430-B1i199408-199508
LIGHT GRAY,TRIM1#
main71073-28430-E1i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71073-28440-B1i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28450-B1i199308-199508
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28450-E1i199308-199508
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28460-B1i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28460-E1i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71073-28650-B0i199508-199608
GRAY,TRIM1#
main71073-28650-E0i199508-199608
GREGE,TRIM4#
main71073-28680-B0i199608-199912
BLUISH GRAY,TRIM1#
main71073-28680-E0i199705-199801
MD. GREIGE,TRIM4#
main71073-28700-B0i199608-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-28710-B0i199608-199801
BLUISH GRAY,TRIM1#
main71073-28710-E0i199608-199801
MD.GREIGE,TRIM4#
main71073-28711-B2i199801-199912
BLUISH GRAY,TRIM1#
main71073-28730-B2i199801-199912
MI.GRAY,TRIM1#
main71073-28730-E0i199608-199801
MD.GREIGE,TRIM4#
main71073-28740-B1i199608-199801
BLUISH GRAY,TRIM1#
main71073-28740-E1i199608-199801
MEDIUM GREGE,TRIM4#
main71073-28741-B2i199801-199912
BLUISH GRAY,TRIM1#
main71073-28750-B1i199608-199801
BLUISH GRAY,TRIM1#
main71073-28750-E1i199608-199801
MEDIUM GREGE,TRIM4#
main71073-28751-B2i199801-199912
BLUISH GRAY,TRIM1#
main71073-28760-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-28761-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-28770-B1i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-28771-B2i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-2J020-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71073-2J020-E0i199508-199608
GREGE,TRIM4#
main71073-2J030-B0i199508-199608
GRAY,TRIM1#
main71073-2J030-E0i199508-199608
W(CAPTAIN SEAT),GREGE,TRIM4#
main71073-2J040-B0i199508-199608
W(SEAT HEATER),GRAY,TRIM1#
main71073-2J040-E0i199508-199608
W(SEAT HEATER),GREGE,TRIM4#
main71073-2J050-B0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GRAY,TRIM1#
main71073-2J050-E0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GREGE,TRIM4#
main71073-2J200-B0i199603-199604
SPECIAL EDITION(SWITZERLAND),BLUISH GRAY,TRIM1
main71073-2J450-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71073-95D07-03i199005-199308
LIGHT GRAY,TRIM1#
main71073-95D08-03i199005-199108
LIGHT GRAY,TRIM1#
main71073-95D08-05i199005-199108
LIGHT GREIGE,TRIM4#
main71073-95D09-03i199005-199108
W(ARMREST),LIGHT GRAY,TRIM1#
main71073-95D09-05i199005-199108
W(ARMREST),LIGHT GREIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-28090-03i199108-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-28380-B1i199308-199608
LIGHT GRAY,TRIM1#
main71073-28440-B1i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71073-2J200-B0i199603-199604
SPECIAL EDITION(SWITZERLAND),BLUISH GRAY,TRIM1
main71073-95D07-03i199005-199308
LIGHT GRAY,TRIM1#
main71074-28090-03i199005-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28090-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28100-03i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28100-05i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28101-B0i199108-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28101-E0i199108-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28110-03i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28110-05i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28111-B0i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28111-E0i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28130-03i199005-199108
LIGHT GRAY,TRIM1#
main71074-28130-05i199005-199108
LIGHT GREIGE,TRIM4#
main71074-28140-03i199005-199108
W(ARMREST),LIGHT GRAY,TRIM1#
main71074-28140-05i199005-199108
W(ARMREST),LIGHT GREIGE,TRIM4#
main71074-28141-B0i199108-199308
LIGHT GRAY,TRIM1#
main71074-28141-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71074-28150-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71074-28150-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71074-28151-B0i199108-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71074-28151-E0i199108-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71074-28160-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71074-28160-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71074-28161-B0i199108-199308
LIGHT GRAY,TRIM1#
main71074-28161-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71074-28470-B2i199308-199508
LIGHT GRAY,TRIM1#
main71074-28470-E2i199308-199508
LIGHT GREIGE,TRIM4#
main71074-28480-B1i199308-199508
LIGHT GRAY,TRIM1#
main71074-28480-E1i199308-199508
LIGHT GREIGE,TRIM4#
main71074-28490-B1i199308-199508
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71074-28490-E1i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71074-28500-B1i199308-199508
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28500-E1i199308-199508
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28510-B1i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71074-28510-E1i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71074-28590-B1i199308-199508
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71074-28590-E1i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71074-28740-B0i199705-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main71074-28740-E0i199705-199801
MD. GREIGE,TRIM4#
main71074-28760-B0i199608-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-28790-B2i199801-199912
MI.GRAY,TRIM1#
main71074-28790-E0i199608-199801
GREIGE,TRIM4#
main71074-28800-B0i199608-199801
BLUISH GRAY,TRIM1#
main71074-28800-E0i199608-199801
MD.GREIGE,TRIM4#
main71074-28801-B1i199801-199912
BLUISH GRAY,TRIM1#
main71074-28810-B1i199608-199801
BLUISH GRAY,TRIM1#
main71074-28810-E1i199608-199801
MEDIUM GREGE,TRIM4#
main71074-28811-B2i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71074-28820-B1i199608-199801
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71074-28821-B2i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71074-28830-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-28831-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-28840-B1i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-28841-B2i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-2J090-B0i199508-199608
GRAY,TRIM1#
main71074-2J090-E0i199508-199608
GREGE,TRIM4#
main71074-2J100-B0i199508-199608
GRAY,TRIM1#
main71074-2J100-E0i199508-199608
GREGE,TRIM4#
main71074-2J110-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71074-2J110-E0i199508-199608
W(CAPTAIN SEAT),GREGE,TRIM4#
main71074-2J120-B0i199508-199608
W(SEAT HEATER),GRAY,TRIM1#
main71074-2J120-E0i199508-199608
W(SEAT HEATER),GREGE,TRIM4#
main71074-2J130-B0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GRAY,TRIM1#
main71074-2J130-E0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GREGE,TRIM4#
main71074-2J140-B0i199508-199608
GRAY,TRIM1#
main71074-2J140-E0i199508-199608
W(CAPTAIN SEAT),GREGE,TRIM4#
main71074-2J230-B1i199608-199801
BLUISH GRAY,TRIM1#
main71074-2J230-E1i199608-199801
MEDIUM GREGE,TRIM4#
main71074-2J231-B2i199801-199912
BLUISH GRAY,TRIM1#
main71074-2J240-B0i199608-199912
BLUISH GRAY,TRIM1#
main71074-2J400-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
71108BLEG SUB-ASSY, FRONT SEAT, RH
main71108-95D00-03i199005-199108
GRAY,TRIM1#
main71108-95D00-05i199005-199108
GREIGE,TRIM4#
main71108-95D00-B0i199308-199912
GRAY,TRIM1#
main71108-95D00-E2i199608-199801
GREIGE,TRIM4#
main71108-95D01-03i199005-199108
GRAY,TRIM1#
main71108-95D01-05i199005-199108
GREIGE,TRIM4#
main71108-95D01-B0i199308-199912
GRAY,TRIM1#
main71108-95D01-E2i199608-199801
GREIGE,TRIM4#
71109BLEG SUB-ASSY, FRONT SEAT, LH
main71109-28020-B0i199308-199608
GRAY,TRIM1#
main71109-28020-E0i199308-199608
GREIGE,TRIM4#
main71109-28030-B0i199308-199608
GRAY,TRIM1#
main71109-28030-E0i199308-199608
GREIGE,TRIM4#
main71109-28070-B0i199608-199912
BLUISH GRAY,TRIM1#
main71109-28070-E0i199608-199801
GREIGE,TRIM4#
main71109-28080-B0i199608-199912
BLUISH GRAY,TRIM1#
main71109-28080-E0i199608-199801
GREIGE,TRIM4#
main71109-95D00-03i199005-199108
GRAY,TRIM1#
main71109-95D00-05i199005-199308
GREIGE,TRIM4#
main71109-95D01-03i199005-199108
GRAY,TRIM1#
main71109-95D01-05i199108-199308
GREIGE,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-28090-03i199005-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-28100-03i199005-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-28100-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71410-28100-E1i199108-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71410-28110-03i199005-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-28110-05i199005-199108
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71410-28110-E1i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71410-28340-B0i199308-199608
LIGHT GRAY,TRIM1#
main71410-28350-B0i199308-199608
LIGHT GRAY,TRIM1#
main71410-28350-E0i199308-199608
LIGHT GREIGE,TRIM4#
main71410-28370-B0i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-28380-B0i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-28380-E0i199308-199608
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71410-28390-B0i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71410-28390-E0i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71410-28400-B0i199308-199608
LIGHT GRAY,TRIM1#
main71410-28400-E0i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71410-28830-B0i199608-199912
BLUISH GRAY,TRIM1#
main71410-28830-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71410-28840-B0i199608-199801
BLUISH GRAY,TRIM1#
main71410-28840-E0i199608-199801
MD.GREIGE,TRIM4#
main71410-28841-B1i199801-199912
BLUISH GRAY,TRIM1#
main71410-28860-B1i199801-199912
LEATHER,BLUISH GRAY,TRIM1#
main71410-28860-E0i199608-199801
LEATHER,MD. GREIGE,TRIM4#
main71410-28870-B0i199608-199801
BLUISH GRAY,TRIM1#
main71410-28870-E0i199608-199801
MD. GREIGE,TRIM4#
main71410-28871-B2i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71410-28880-B0i199608-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-28890-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-28891-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-2J010-B0i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-2J011-B1i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-2J290-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71410-95D03-03i199005-199308
LIGHT GRAY,TRIM1#
main71410-95D04-03i199108-199308
LIGHT GRAY,TRIM1#
main71410-95D04-05i199005-199108
LIGHT GREIGE,TRIM4#
main71410-95D04-E2i199108-199308
LIGHT GREIGE,TRIM4#
main71410-95D05-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71410-95D05-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71410-95D05-E1i199108-199308
LIGHT GREIGE,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-28090-03i199108-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-28100-03i199005-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-28100-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71420-28100-E1i199108-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71420-28110-03i199005-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-28110-05i199005-199108
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71420-28110-E1i199108-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71420-28340-B0i199308-199608
LIGHT GRAY,TRIM1#
main71420-28350-B0i199308-199608
LIGHT GRAY,TRIM1#
main71420-28350-E0i199308-199608
LIGHT GREIGE,TRIM4#
main71420-28370-B0i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-28380-B0i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-28380-E0i199308-199608
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71420-28390-B0i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71420-28390-E0i199308-199608
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71420-28400-B0i199308-199608
LIGHT GRAY,TRIM1#
main71420-28400-E0i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71420-28770-B0i199608-199912
BLUISH GRAY,TRIM1#
main71420-28770-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71420-28780-B0i199608-199801
BLUISH GRAY,TRIM1#
main71420-28780-E0i199608-199801
MD.GREIGE,TRIM4#
main71420-28781-B1i199801-199912
BLUISH GRAY,TRIM1#
main71420-28800-B1i199801-199912
BLUISH GRAY,TRIM1#
main71420-28800-E0i199608-199801
MD. GREIGE,TRIM4#
main71420-28810-B0i199608-199801
BLUISH GRAY,TRIM1#
main71420-28810-E0i199608-199801
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
main71420-28811-B2i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71420-28820-B0i199608-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-28830-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-28831-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-28840-B0i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-28841-B1i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-2J260-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71420-95D01-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71420-95D01-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71420-95D01-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71420-95D04-03i199005-199308
LIGHT GRAY,TRIM1#
main71420-95D05-03i199005-199108
LIGHT GRAY,TRIM1#
main71420-95D05-05i199005-199108
LIGHT GREIGE,TRIM4#
main71420-95D05-E2i199108-199308
LIGHT GREIGE,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-28360-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71430-28130-03i199108-199304
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28131-B0i199304-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28140-03i199005-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28140-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28150-03i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28150-05i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28151-B0i199108-199304
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28151-E0i199108-199304
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28152-B0i199304-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28152-E0i199304-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28160-03i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28160-05i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28161-B0i199108-199304
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28161-E0i199108-199304
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28162-B0i199304-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28162-E0i199304-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28170-B0i199108-199304
LIGHT GRAY,TRIM1#
main71430-28170-E0i199108-199304
LIGHT GREIGE,TRIM4#
main71430-28171-B0i199304-199308
LIGHT GRAY,TRIM1#
main71430-28171-E0i199304-199308
LIGHT GREIGE,TRIM4#
main71430-28180-B0i199108-199304
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71430-28180-E0i199108-199304
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71430-28181-B0i199304-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71430-28181-E0i199304-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71430-28190-B0i199108-199308
LIGHT GRAY,TRIM1#
main71430-28190-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71430-28200-B0i199108-199308
LIGHT GRAY,TRIM1#
main71430-28200-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71430-28460-B0i199304-199308
LIGHT GRAY,TRIM1#
main71430-28510-B0i199308-199508
LIGHT GRAY,TRIM1#
main71430-28520-B0i199308-199508
LIGHT GRAY,TRIM1#
main71430-28520-E0i199308-199508
LIGHT GREIGE,TRIM4#
main71430-28530-B0i199308-199508
LIGHT GRAY,TRIM1#
main71430-28530-E0i199308-199508
LIGHT GREIGE,TRIM4#
main71430-28540i199408-199508
W(CAPTAIN SEAT)
main71430-28540-B0i199308-199408
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71430-28540-E0i199308-199408
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71430-28550-B0i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28560-B0i199308-199508
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28560-E0i199308-199508
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-28570-B0i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71430-28570-E0i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71430-2J080-B0i199508-199608
BLUISH GRAY,TRIM1#
main71430-2J090-B0i199508-199608
BLUISH GRAY,TRIM1#
main71430-2J090-E0i199508-199608
MD. GREIGE,TRIM4#
main71430-2J100-B0i199508-199608
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71430-2J100-E0i199508-199608
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
main71430-2J150-B0i199508-199608
GRAY,TRIM1#
main71430-2J150-E0i199508-199608
GREIGE,TRIM4#
main71430-2J160-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71430-2J160-E0i199508-199608
GREIGE,TRIM4#
main71430-2J170-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71430-2J170-E0i199508-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
main71430-2J180-B0i199508-199608
W(SEAT HEATER),GRAY,TRIM1#
main71430-2J180-E0i199508-199608
W(SEAT HEATER),GREIGE,TRIM4#
main71430-2J190-B0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GRAY,TRIM1#
main71430-2J190-E0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GREIGE,TRIM4#
main71430-2J280-B0i199705-199801
CHINA SPEC,BLUISH GRAY,TRIM1#
main71430-2J280-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71430-2J281-B0i199801-199912
BLUISH GRAY,TRIM1#
main71430-2J300-B0i199608-199801
BLUISH GRAY,TRIM1#
main71430-2J301-B1i199801-199912
BLUISH GRAY,TRIM1#
main71430-2J320-E0i199608-199801
LEATHER,MD. GREIGE,TRIM4#
main71430-2J321-B1i199801-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main71430-2J330-B0i199608-199801
BLUISH GRAY,TRIM1#
main71430-2J330-E0i199608-199801
MD. GREIGE,TRIM4#
main71430-2J331-B2i199801-199912
BLUSIH GRAY,TRIM1#
main71430-2J340-B0i199608-199801
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71430-2J341-B1i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71430-2J350-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-2J351-B0i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-2J360-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-2J361-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-2J370-B0i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-2J371-B1i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-2J380-B0i199608-199801
BLUISH GRAY,TRIM1#
main71430-2J381-B0i199801-199912
BLUISH GRAY,TRIM1#
main71430-2J390-B0i199608-199801
BLUISH GRAY,TRIM1#
main71430-2J390-E0i199608-199801
MD.GREIGE,TRIM4#
main71430-2J391-B1i199801-199912
BLUISH GRAY,TRIM1#
main71430-2J400-B0i199608-199801
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71430-2J400-E0i199608-199801
MD. GREIGE,TRIM4#
main71430-2J401-B1i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71430-2J410-B0i199608-199801
BLUISH GRAY,TRIM1#
main71430-2J411-B1i199801-199912
BLUISH GRAY,TRIM1#
main71430-95D04-03i199005-199308
LIGHT GRAY,TRIM1#
main71430-95D05-03i199005-199304
LIGHT GRAY,TRIM1#
main71430-95D07-03i199005-199108
LIGHT GRAY,TRIM1#
main71430-95D07-05i199005-199108
LIGHT GREIGE,TRIM4#
main71430-95D08-03i199005-199108
LIGHT GRAY,TRIM1#
main71430-95D08-05i199005-199108
LIGHT GREIGE,TRIM4#
main71430-95D09-03i199005-199108
W(ARMREST),LIGHT GRAY,TRIM1#
main71430-95D09-05i199005-199108
W(ARMREST),LIGHT GREIGE,TRIM4#
main71430-95D10-03i199005-199108
W(ARMREST),LIGHT GRAY,TRIM1#
main71430-95D10-05i199005-199108
W(ARMREST),LIGHT GREIGE,TRIM4#
main71430-95D11-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71430-95D11-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71430-95D12-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71430-95D12-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71070-28010-B0i199705-199801
CHINA SPEC,BLUISH GRAY,TRIM1#
main71070-28010-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71070-28011-B0i199801-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main71070-28190-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71440-28090-03i199108-199304
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28091-B0i199304-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28100-03i199005-199108
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28100-05i199005-199108
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28110-03i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28110-05i199005-199108
W(ARMREST & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28111-B0i199108-199304
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28111-E0i199108-199304
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28112-B0i199304-199308
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28112-E0i199304-199308
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28120-03i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28120-05i199005-199108
W(ARMREST & CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28121-B0i199108-199304
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28121-E0i199108-199304
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28122-B0i199304-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28122-E0i199304-199308
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28150-B0i199108-199304
LIGHT GRAY,TRIM1#
main71440-28150-E0i199108-199304
LIGHT GREIGE,TRIM4#
main71440-28151-B0i199304-199308
LIGHT GRAY,TRIM1#
main71440-28151-E0i199304-199308
LIGHT GREIGE,TRIM4#
main71440-28160-B0i199108-199304
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71440-28160-E0i199108-199304
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71440-28161-B0i199304-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71440-28161-E0i199304-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71440-28170-B0i199108-199308
LIGHT GRAY,TRIM1#
main71440-28170-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71440-28180-B0i199108-199308
LIGHT GRAY,TRIM1#
main71440-28180-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71440-28370-B0i199408-199508
LIGHT GRAY,TRIM1#
main71440-28460-B0i199304-199308
LIGHT GRAY,TRIM1#
main71440-28510-B0i199308-199608
LIGHT GRAY,TRIM1#
main71440-28520-B0i199308-199508
LIGHT GRAY,TRIM1#
main71440-28520-E0i199308-199508
LIGHT GREIGE,TRIM4#
main71440-28530-B0i199308-199508
LIGHT GRAY,TRIM1#
main71440-28530-E0i199308-199508
LIGHT GREIGE,TRIM4#
main71440-28540-B0i199308-199508
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71440-28540-E0i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71440-28550-B0i199308-199608
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28560-B0i199308-199508
W(SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28560-E0i199308-199508
W(SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28570-B0i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GRAY,TRIM1#
main71440-28570-E0i199308-199508
W(CAPTAIN SEAT & SEAT HEATER),LIGHT GREIGE,TRIM4#
main71440-28660-B0i199308-199508
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71440-28660-E0i199308-199508
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71440-2J080-B0i199508-199608
GRAY,TRIM1#
main71440-2J080-E0i199508-199608
GREIGE,TRIM4#
main71440-2J090-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71440-2J090-E0i199508-199608
GREIGE,TRIM4#
main71440-2J100-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71440-2J100-E0i199508-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
main71440-2J110-B0i199508-199608
W(SEAT HEATER),GRAY,TRIM1#
main71440-2J110-E0i199508-199608
W(SEAT HEATER),GREIGE,TRIM4#
main71440-2J120-B0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GRAY,TRIM1#
main71440-2J120-E0i199508-199608
W(CAPTAIN SEAT & SEAT HEATER),GREIGE,TRIM4#
main71440-2J130-B0i199508-199608
GRAY,TRIM1#
main71440-2J160-B0i199508-199608
W(CAPTAIN SEAT),GRAY,TRIM1#
main71440-2J160-E0i199508-199608
W(CAPTAIN SEAT),GREIGE,TRIM4#
main71440-2J200-E0i199608-199610
LEATHER,MD. GREIGE,TRIM4#
main71440-2J210-B0i199608-199801
BLUISH GRAY,TRIM1#
main71440-2J211-B0i199801-199912
BLUISH GRAY,TRIM1#
main71440-2J220-B0i199608-199801
BLUISH GRAY,TRIM1#
main71440-2J220-E0i199608-199801
MD.GREIGE,TRIM4#
main71440-2J221-B1i199801-199912
BLUISH GRAY,TRIM1#
main71440-2J230-B0i199608-199801
BLUISH GRAY,TRIM1#
main71440-2J230-E0i199608-199801
MD. GREIGE,TRIM4#
main71440-2J231-B2i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71440-2J240-B0i199608-199801
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71440-2J241-B1i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71440-2J250-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-2J251-B0i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-2J260-B0i199608-199801
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-2J261-B1i199801-199912
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-2J270-B0i199608-199801
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-2J271-B1i199801-199912
W(CAPTAIN SEAT & SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-2J280-B0i199608-199801
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71440-2J280-E0i199608-199801
MD. GREIGE,TRIM4#
main71440-2J281-B1i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71440-2J290-B0i199608-199801
BLUISH GRAY,TRIM1#
main71440-2J291-B1i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main71440-2J390-B0i199608-199801
W(SPLIT SEAT),BLUISH GRAY,TRIM1#
main71440-2J391-B1i199801-199912
BLUISH GRAY,TRIM1#
main71440-2J410-E0i199610-199801
GREIGE,TRIM4#
main71440-2J411-B1i199801-199912
BLUISH GRAY,TRIM1#
main71440-95D04-03i199005-199304
LIGHT GRAY,TRIM1#
main71440-95D05-03i199005-199308
LIGHT GRAY,TRIM1#
main71440-95D07-03i199005-199108
LIGHT GRAY,TRIM1#
main71440-95D07-05i199005-199108
LIGHT GREIGE,TRIM4#
main71440-95D09-03i199005-199108
W(ARMREST),LIGHT GRAY,TRIM1#
main71440-95D09-05i199005-199108
W(ARMREST),LIGHT GREIGE,TRIM4#
main71440-95D11-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71440-95D11-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main71440-95D12-03i199005-199108
LIGHT GRAY,TRIM1#
main71440-95D12-05i199005-199108
LIGHT GREIGE,TRIM4#
main71440-95D14-03i199005-199108
W(ARMREST),LIGHT GRAY,TRIM1#
main71440-95D14-05i199005-199108
W(ARMREST),LIGHT GREIGE,TRIM4#
main71440-95D16-03i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main71440-95D16-05i199005-199108
W(ARMREST & CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-28100i199308-199608
main71511-28160i199608-199801
main71511-28170i199608-199912
W(LEATHER SEAT)
main71511-95D00i199005-199308
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-28160i199608-199912
main71512-28100i199308-199608
main71512-28170i199608-199912
W(LEATHER SEAT)
main71512-95D00i199005-199308
7152
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-28110i199308-199608
main71551-28120i199308-199608
main71551-28190i199705-199912
CHINA SPEC
main71551-28200i199608-199912
main71551-28260i199608-199912
W(LEATHER SEAT)
main71551-95D00i199005-199308
main71551-95D01i199005-199108
W(ARMREST)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-28110i199308-199608
main71551-28120i199401-199608
main71551-28190i199705-199912
CHINA SPEC
main71551-28200i199608-199912
main71551-95D00i199005-199308
main71552-28140i199308-199401
main71552-28220i199608-199912
W(LEATHER SEAT)
main71552-95D00i199005-199108
W(ARMREST)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-28070i199108-199308
main71630-28180i199308-199608
main71630-28190i199308-199608
main71630-28310i199705-199801
CHINA SPEC
main71630-28320i199608-199801
main71630-28330i199801-199912
CHINA SPEC
main71630-28340i199801-199912
main71630-28390i199608-199801
W(LEATHER SEAT)
main71630-28400i199801-199912
W(LEATHER SEAT)
main71630-95D02i199108-199308
main71630-95D03i199005-199108
W(ARMREST)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-28060i199108-199308
W(SEAT HEATER)
main71640-28070i199108-199308
main71640-28230i199308-199608
main71640-28240i199308-199608
main71640-28250i199308-199608
W(SEAT HEATER)
main71640-28260i199308-199608
W(SEAT HEATER)
main71640-28360i199610-199801
W(SEAT HEATER)
main71640-28370i199610-199801
W(SEAT HEATER)
main71640-28380i199801-199912
W(SEAT HEATER)
main71640-28390i199801-199912
W(CAPTAIN SEAT & SEAT HEATER)
main71640-28410i199608-199610
W(LEATHER SEAT)
main71640-28420i199610-199801
main71640-28430i199610-199801
main71640-28440i199610-199801
W(LEATHER SEAT)
main71640-28470i199801-199912
CHINA SPEC
main71640-28480i199801-199912
main71640-28490i199801-199912
W(LEATHER SEAT)
main71640-95D02i199108-199308
W(SEAT HEATER)
main71640-95D03i199005-199108
W(ARMREST & SEAT HEATER)
main71640-95D04i199108-199308
main71640-95D05i199005-199108
W(ARMREST)
71695PROTECTOR, REAR SEATBACK
main71695-28020i199209-199608
71771PROTECTOR, FRONT SEATBACK HEADREST STAY
main71771-28020×4i199005-199308
71811CCOVER, RECLINING ADJUSTER, RH
main71811-28090-B0i199608-199912
BLUISH GRAY,TRIM1#
main71811-28090-E0i199608-199801
MD.GREIGE,TRIM4#
main71811-95D00-03i199005-199108
GRAY,TRIM1#
main71811-95D00-05i199005-199108
GREIGE,TRIM4#
main71811-95D00-B0i199308-199608
GRAY,TRIM1#
main71811-95D00-E2i199308-199608
GREIGE,TRIM4#
71811FCOVER, RECLINING ADJUSTER, RH
main71811-28100-B0i199608-199912
BLUISH GRAY,TRIM1#
main71811-28100-E0i199608-199801
MD.GREIGE,TRIM4#
main71811-95D02-03i199005-199108
GRAY,TRIM1#
main71811-95D02-05i199005-199108
GREIGE,TRIM4#
main71811-95D02-B0i199308-199608
GRAY,TRIM1#
main71811-95D02-E2i199308-199608
GREIGE,TRIM4#
71812CCOVER, RECLINING ADJUSTER, LH
main71812-28130-B0i199608-199912
BLUISH GRAY,TRIM1#
main71812-28130-E0i199608-199801
MD.GREIGE,TRIM4#
main71812-95D00-03i199005-199308
GRAY,TRIM1#
main71812-95D00-05i199108-199308
GREIGE,TRIM4#
main71812-95D00-B0i199308-199608
GRAY,TRIM1#
main71812-95D00-E2i199308-199608
GREIGE,TRIM4#
71812ECOVER, RECLINING ADJUSTER, LH
main71812-28100-B0i199608-199912
BLUISH GRAY,TRIM1#
main71812-28100-E0i199608-199801
MD.GREIGE,TRIM4#
main71812-95D03-03i199005-199108
GRAY,TRIM1#
main71812-95D03-05i199005-199108
GREIGE,TRIM4#
main71812-95D03-B0i199308-199608
GRAY,TRIM1#
main71812-95D03-E2i199308-199608
GREIGE,TRIM4#
71910BHEADREST ASSY, FRONT SEAT
main71910-28050-03i199005-199308
LIGHT GRAY,TRIM1#
main71910-28060-03i199005-199308
LIGHT GRAY,TRIM1#
main71910-28060-05i199005-199108
LIGHT GREIGE,TRIM4#
main71910-28060-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71910-28200-B1i199308-199608
LIGHT GRAY,TRIM1#
main71910-28210-B2i199308-199608
GRAY,TRIM1#
main71910-28210-E3i199308-199608
GREGE,TRIM4#
main71910-28490-B0i199603-199604
SPECIAL EDITION(SWITZERLAND),BLUISH GRAY,TRIM1
main71910-28680-B0i199705-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main71910-28680-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71910-28690-B0i199608-199801
BLUISH GRAY,TRIM1#
main71910-28690-E0i199608-199801
MD.GREIGE,TRIM4#
main71910-28691-B1×2i199801-199912
BLUISH GRAY,TRIM1#
main71910-28700-B2×2i199801-199912
MEDIUM GRAY,TRIM1#
main71910-28700-E0i199608-199801
MD. GREIGE,TRIM4#
main71910-28870-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71910-95D04-03i199005-199308
LIGHT GRAY,TRIM1#
main71910-95D04-05i199005-199108
LIGHT GREIGE,TRIM4#
main71910-95D04-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71910-95D06-03i199005-199308
LIGHT GRAY,TRIM1#
71920AHEADREST ASSY, FRONT SEAT, LH
main71910-28050-03i199005-199308
LIGHT GRAY,TRIM1#
main71910-28200-B1i199308-199608
LIGHT GRAY,TRIM1#
main71910-28490-B0i199603-199604
SPECIAL EDITION(SWITZERLAND),BLUISH GRAY,TRIM1
main71910-28700-E0i199608-199801
MD. GREIGE,TRIM4#
main71910-28870-B0i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main71910-95D06-03i199005-199308
LIGHT GRAY,TRIM1#
main71920-28010-03i199005-199308
LIGHT GRAY,TRIM1#
main71920-28010-05i199005-199108
LIGHT GREIGE,TRIM4#
main71920-28010-E0i199108-199308
LIGHT GREIGE,TRIM4#
main71920-28030-B2i199308-199608
GRAY,TRIM1#
main71920-28030-E3i199308-199608
GREGE,TRIM4#
main71920-28190-B0i199608-199912
BLUISH GRAY,TRIM1#
main71920-28190-E0i199705-199801
CHINA SPEC,MD. GREIGE,TRIM4#
main71920-28200-B0i199608-199801
BLUISH GRAY,TRIM1#
main71920-28200-E0i199608-199801
MD.GREIGE,TRIM4#
main71920-95D01-03i199005-199308
LIGHT GRAY,TRIM1#
main71920-95D01-05i199005-199108
LIGHT GREIGE,TRIM4#
main71920-95D01-E0i199108-199308
LIGHT GREIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-13×2i199005-199308
W(LOCK),LIGHT GRAY,TRIM1#
main71930-12050-15×2i199005-199308
W(LOCK),LIGHT GREIGE,TRIM4#
main71930-28030-B0×2i199308-199912
W(LOCK),GRAY,TRIM1#
main71930-28030-E0×2i199308-199608
W(LOCK),GREIGE,TRIM4#
main71931-28030-B0×2i199308-199912
W/O(LOCK),GRAY,TRIM1#
main71931-28030-E0×2i199608-199801
W/O(LOCK),GREIGE,TRIM4#
72011DSPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER)
main90506-12060×2i199005-199608
72011ESPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER)
main90506-12060×2i199005-199608
72025ASTRIKER SUB-ASSY, FRONT SEAT LOCK
main72025-28040i199608-199912
main72025-28050i199608-199912
main72025-95D00i199108-199608
W(SEAT HEATER)
main72025-95D01i199005-199608
main72025-95D02i199005-199608
72127DCOVER, SEAT TRACK BRACKET, FRONT, RH
main72127-28020-B0×2i199608-199912
BLUISH GRAY,TRIM1#
main72127-28020-E0×2i199608-199801
MD.GREIGE,TRIM4#
main72127-95D01-03×2i199005-199108
GRAY,TRIM1#
main72127-95D01-05×2i199005-199108
GREIGE,TRIM4#
main72127-95D01-B0×2i199308-199608
GRAY,TRIM1#
main72127-95D01-E2×2i199308-199608
GREIGE,TRIM4#
72128CCOVER, SEAT TRACK BRACKET, FRONT, LH
main72128-28020-B0×2i199608-199912
BLUISH GRAY,TRIM1#
main72128-28020-E0×2i199608-199801
MD.GREIGE,TRIM4#
main72128-95D00-03×2i199005-199108
GRAY,TRIM1#
main72128-95D00-05×2i199005-199108
GREIGE,TRIM4#
main72128-95D00-B0×2i199308-199608
GRAY,TRIM1#
main72128-95D00-E2×2i199308-199608
GREIGE,TRIM4#
72159CCOVER, FRONT SEAT TRACK BRACKET
main71139-28020-B0i199608-199912
BLUISH GRAY,TRIM1#
main71139-28020-E0i199608-199801
MD.GREIGE,TRIM4#
main72159-95D00-03×2i199005-199108
GRAY,TRIM1#
main72159-95D00-05×2i199005-199108
GREIGE,TRIM4#
main72159-95D00-B0×2i199308-199608
GRAY,TRIM1#
main72159-95D00-C0×2i199308-199608
BLACK,TRIM11,4#
main72159-95D00-E2×2i199308-199608
GREIGE,TRIM41
72250CLOCK ASSY, FRONT SEAT
main72250-28010i199608-199912
main72250-95D00i199005-199608
72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
main72301-28050i199608-199801
main72301-95D00i199005-199608
72301DWIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
main72301-28050i199608-199801
main72301-95D00i199005-199608
72339AFRAME, FRONT SEAT LEG SUPPORT
main72339-28010i199005-199608
main72339-28030i199608-199912
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-28040-B0i199608-199912
BLUISH GRAY,TRIM1#
main72525-28040-E0i199608-199801
MD. GREIGE,TRIM4#
main72525-95D00-03i199005-199108
GRAY,TRIM1#
main72525-95D00-05i199005-199108
GREIGE,TRIM4#
main72525-95D00-B0i199308-199608
GRAY,TRIM1#
main72525-95D00-E2i199308-199608
GREIGE,TRIM4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-28030-B0i199608-199912
BLUISH GRAY,TRIM1#
main72526-28030-E0i199608-199801
MD. GREIGE,TRIM4#
main72526-95D00-03i199005-199108
GRAY,TRIM1#
main72526-95D00-05i199005-199108
GREIGE,TRIM4#
main72526-95D00-B0i199308-199608
GRAY,TRIM1#
main72526-95D00-E2i199308-199608
GREIGE,TRIM4#
72880ARMREST ASSY, SEAT, C RH
main72890-28040-03i199005-199108
LIGHT GRAY,TRIM1#
main72890-28040-05i199005-199108
LIGHT GREIGE,TRIM4#
main72890-28050-03i199005-199108
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main72890-28050-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main72890-28070-B0i199108-199308
LIGHT GRAY,TRIM1#
main72890-28070-E1i199108-199308
LIGHT GREIGE,TRIM4#
main72890-28080-B0i199108-199308
LIGHT GRAY,TRIM1#
main72890-28080-E0i199108-199308
LIGHT GREIGE,TRIM4#
main72890-28170-B0i199308-199408
LIGHT GRAY,TRIM1#
main72890-28170-E0i199308-199408
LIGHT GREIGE,TRIM4#
main72890-28180-B0i199308-199408
LIGHT GRAY,TRIM1#
main72890-28180-E0i199308-199408
LIGHT GREIGE,TRIM4#
main72890-28270-B0i199408-199508
BLUISH GRAY,TRIM1#
main72890-28270-E0i199408-199508
MD. GREIGE,TRIM4#
main72890-28280-B0i199408-199508
BLUISH GRAY,TRIM1#
main72890-28280-E0i199408-199508
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
main72890-28370-B0i199508-199608
GRAY,TRIM1#
main72890-28370-E0i199508-199608
GREIGE,TRIM4#
main72890-28380-B0i199508-199608
GRAY,TRIM1#
main72890-28380-E0i199508-199608
GREIGE,TRIM4#
main72890-28390-B1i199801-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main72890-28390-E0i199608-199801
GREIGE,TRIM4#
main72890-28430-B0i199608-199801
BLUISH GRAY,TRIM1#
main72890-28430-E0i199608-199801
MD.GREIGE,TRIM4#
main72890-28440-B0i199608-199801
BLUISH GRAY,TRIM1#
main72890-28440-E0i199608-199801
MD. GREIGE,TRIM4#
main72890-28500-B0i199801-199912
BLUISH GRAY,TRIM1#
main72890-28510-B0i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main72890-95D09-03i199005-199108
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main72890-95D09-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main72890-95D12-03i199005-199108
LIGHT GRAY,TRIM1#
main72890-95D12-05i199005-199108
LIGHT GREIGE,TRIM4#
72890ARMREST ASSY, SEAT, C LH
main72880-28030-03i199005-199108
LIGHT GRAY,TRIM1#
main72880-28030-05i199005-199108
LIGHT GREIGE,TRIM4#
main72880-28040-03i199005-199108
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main72880-28040-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main72880-28060-B0i199108-199308
LIGHT GRAY,TRIM1#
main72880-28060-E1i199108-199308
LIGHT GREIGE,TRIM4#
main72880-28070-B0i199108-199308
LIGHT GRAY,TRIM1#
main72880-28070-E0i199108-199308
LIGHT GREIGE,TRIM4#
main72880-28160-B0i199308-199408
LIGHT GRAY,TRIM1#
main72880-28160-E0i199308-199408
LIGHT GREIGE,TRIM4#
main72880-28170-B0i199308-199408
LIGHT GRAY,TRIM1#
main72880-28170-E0i199308-199408
LIGHT GREIGE,TRIM4#
main72880-28270-B0i199408-199508
BLUISH GRAY,TRIM1#
main72880-28270-E0i199408-199508
MD. GREIGE,TRIM4#
main72880-28280-B0i199408-199508
BLUISH GRAY,TRIM1#
main72880-28280-E0i199408-199508
W(CAPTAIN SEAT),MD. GREIGE,TRIM4#
main72880-28400-B0i199508-199608
GRAY,TRIM1#
main72880-28400-E0i199508-199608
GREIGE,TRIM4#
main72880-28410-B0i199508-199608
GRAY,TRIM1#
main72880-28410-E0i199508-199608
GREIGE,TRIM4#
main72880-28420-B1i199801-199912
CHINA SPEC,BLUISH GRAY,TRIM1#
main72880-28420-E0i199608-199801
GREIGE,TRIM4#
main72880-28490-B0i199608-199801
BLUISH GRAY,TRIM1#
main72880-28490-E0i199608-199801
MD.GREIGE,TRIM4#
main72880-28500-B0i199608-199801
BLUISH GRAY,TRIM1#
main72880-28500-E0i199608-199801
MD. GREIGE,TRIM4#
main72880-28610-B0i199801-199912
BLUISH GRAY,TRIM1#
main72880-28620-B0i199801-199912
W(CAPTAIN SEAT),BLUISH GRAY,TRIM1#
main72880-95D03-03i199005-199108
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main72880-95D03-05i199005-199108
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main72880-95D06-03i199005-199108
LIGHT GRAY,TRIM1#
main72880-95D06-05i199005-199108
LIGHT GREIGE,TRIM4#
9010910055
main90109-10055
9011908079
main90119-08079
9011908873
main90119-08873
9011910456
main90119-10456
9011910643
main90119-10643
9011910834
main90119-10834
9015980049
main90159-80049
9016840043
main90168-40043
9017910073
main90179-10073
9020115015
main90201-15015
9038614007
main90386-14007
9038635001
main90386-35001
9046807023
main90468-07023
9054105005
main90541-05005
9054112017
main90541-12017
9324056025
main93240-56025
9454201400
main94542-01400

59 parts on this diagram · 15 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
