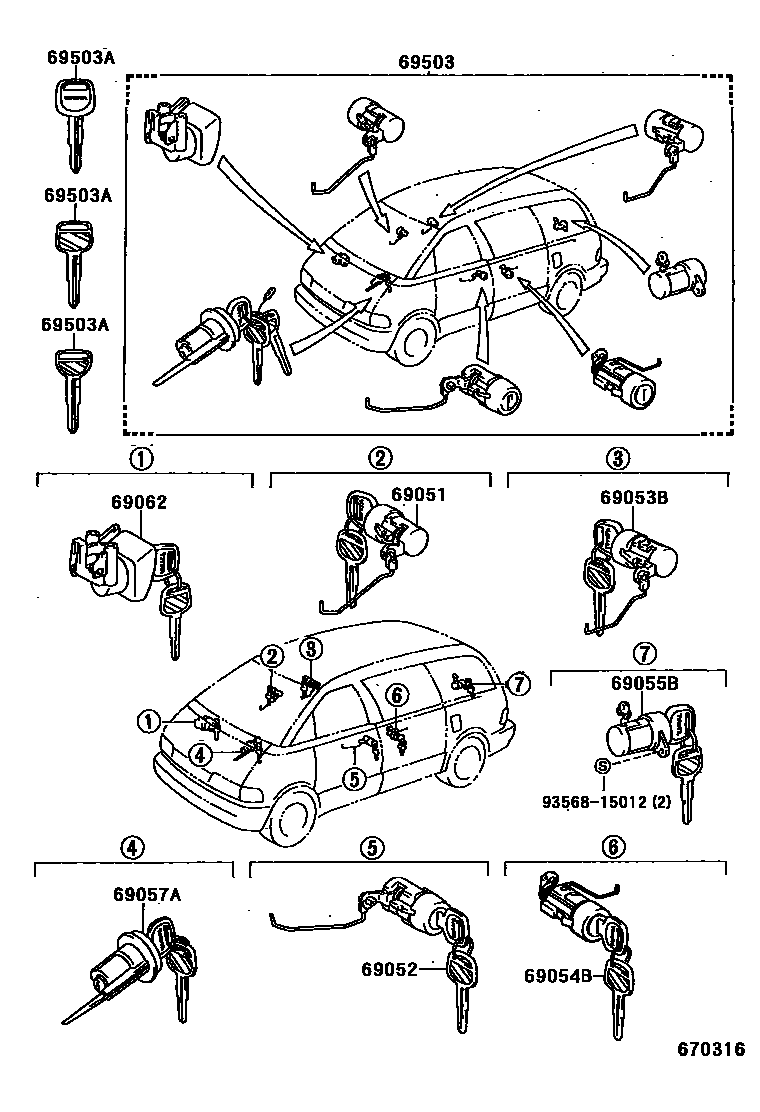

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
W(*EL) OR W(SECURITY SYSTEM)
69052CYLINDER & KEY SET, DOOR LOCK, LH
W(*EL) OR W(SECURITY SYSTEM)
69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH
W(ENGINE IMMOBILIZER SYSTEM)
W(*EL) OR W(SECURITY SYSTEM)
69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
W(ENGINE IMMOBILIZER SYSTEM)
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
BLUISH GRAY,TRIM1#
MD.GREIGE,TRIM11; MD.GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
69503CYLINDER SET, LOCK
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
MD.GREIGE,TRIM4#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(SECURITY SYSTEM),BLUISH GRAY,TRIM1#
W(*80),BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(*80),BLUISH GRAY,TRIM1#
W(SECURITY SYSTEM),LIGHT GRAY,TRIM1#
W(*EL) OR W(SECURITY SYSTEM),LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
W(SECURITY SYSTEM),LIGHT GRAY,TRIM1#
W(SECURITY SYSTEM),LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREAGE,TRIM4#
LIGHT GRAY,TRIM1#
LIGHT GREIGE,TRIM4#
69503AKEY, BLANK
MASTER KEY; MASTER KEY,LEADED GASOLINE SPEC
SUB KEY
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
9356815012
main93568-15012
10 parts on this diagram · 2 diagrams in section
