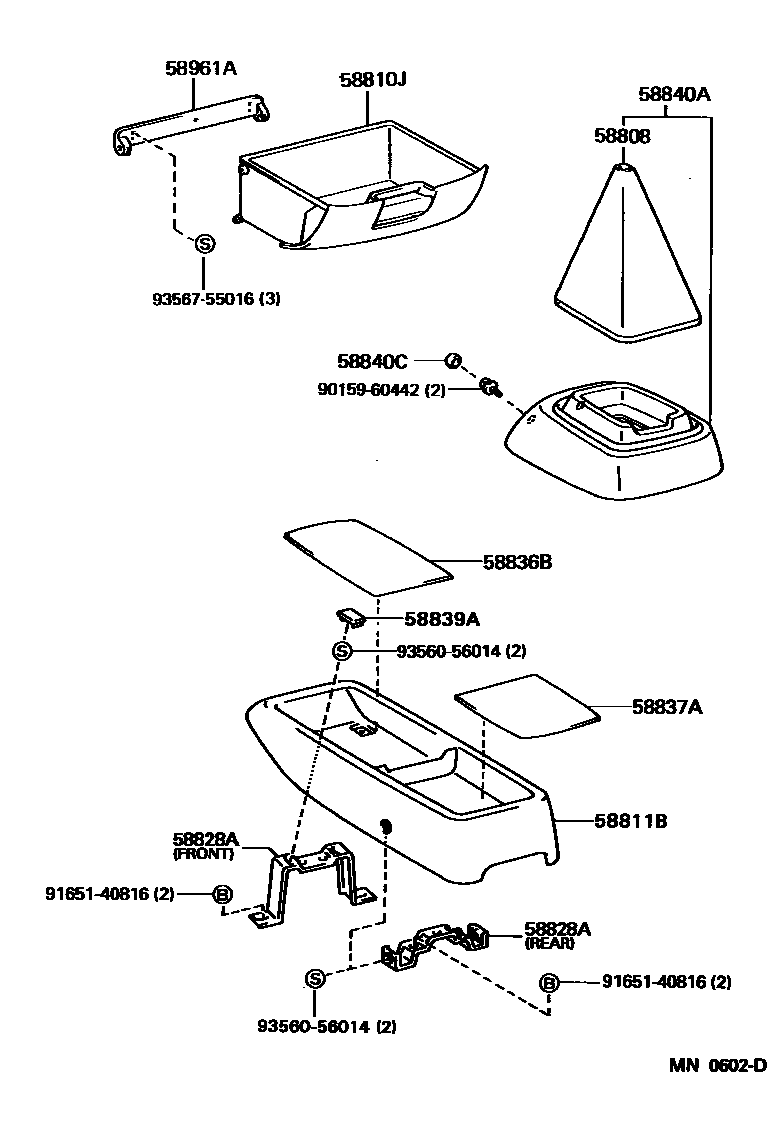

CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-95D00-03iTCR1#,2#..MTM199005-199308

GRAY,TRIM1#

main58808-95D00-05iTCR11,21..MTM199005-199308

GREIGE,TRIM4#

main58808-95D00-B0iTCR1#,2#..MTM199308-199912

GRAY,TRIM1#

main58808-95D00-E0iTCR11,21..MTM199308-199608

GREIGE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-95D34-03iTCR1#,2#199005-199308

GRAY,TRIM1#

main58810-95D34-05iTCR11,21199005-199308

GREIGE,TRIM4#

main58810-95D34-44iTCR1#,21..GL199308-199608

GREIGE,TRIM4#

main58810-95D34-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

58811BBOX, CONSOLE

main58811-28080-B0iTCR1#,2#199108-199912

GRAY,TRIM1#

main58811-28080-E1iTCR1#,21..GL199108-199608

GREIGE,TRIM4#

58828ABRACKET, CONSOLE BOX, LOWER

main58828-28030iTCR1#,2#199108-199912

FRONT

main58828-28040iTCR1#,2#199108-199912

REAR

58836BPAD, CONSOLE BOX SILENCER, NO.1

main58836-28030-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

main58836-28030-E0iTCR1#,21..GL199308-199608

GREIGE,TRIM4#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-28010-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

main58837-28010-E0iTCR1#,21..GL199308-199608

GREIGE,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-28010-B0×2iTCR1#,2#199108-199912

GRAY,TRIM1#

main58839-28010-E1×2iTCR1#,21..GL199108-199608

GREIGE,TRIM4#

58840ACOVER ASSY, SHIFTING HOLE

main58840-95D00-03iTCR1#,2#..MTM199005-199308

GRAY,TRIM1#

main58840-95D00-05iTCR11,21..MTM199005-199308

GREIGE,TRIM4#

main58840-95D00-B0iTCR1#,2#..MTM199308-199912

GRAY,TRIM1#

main58840-95D00-E2iTCR11,21..MTM199308-199608

GREIGE,TRIM4#

58840CCAP

main90339-12007-01×2iTCR10,20..W199005-199308

BLACK,TRIM1#,4#

main90339-12007-03×2iTCR10,20..W199108-199308

LIGHT GRAY,TRIM11

main90339-12007-05×2iTCR11,21..MTM..ARL199005-199308

LIGHT GREIGE,TRIM41

main90339-12007-20×2iTCR11,21..MTM199408-199608

BLACK,TRIM1#,4#

main90339-12007-B1×2iTCR10..MTM..ARL199801-199912

GRAY,TRIM1#

main90339-12007-E2×2iTCR11,21..MTM199308-199408

GREIGE,TRIM4#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-95D00iTCR1#,2#199005-199912

9015960442

main90159-60442

9165140816

main91651-40816

9356056014

main93560-56014

9356755016

main93567-55016

14 parts on this diagram · 1 diagram in section
