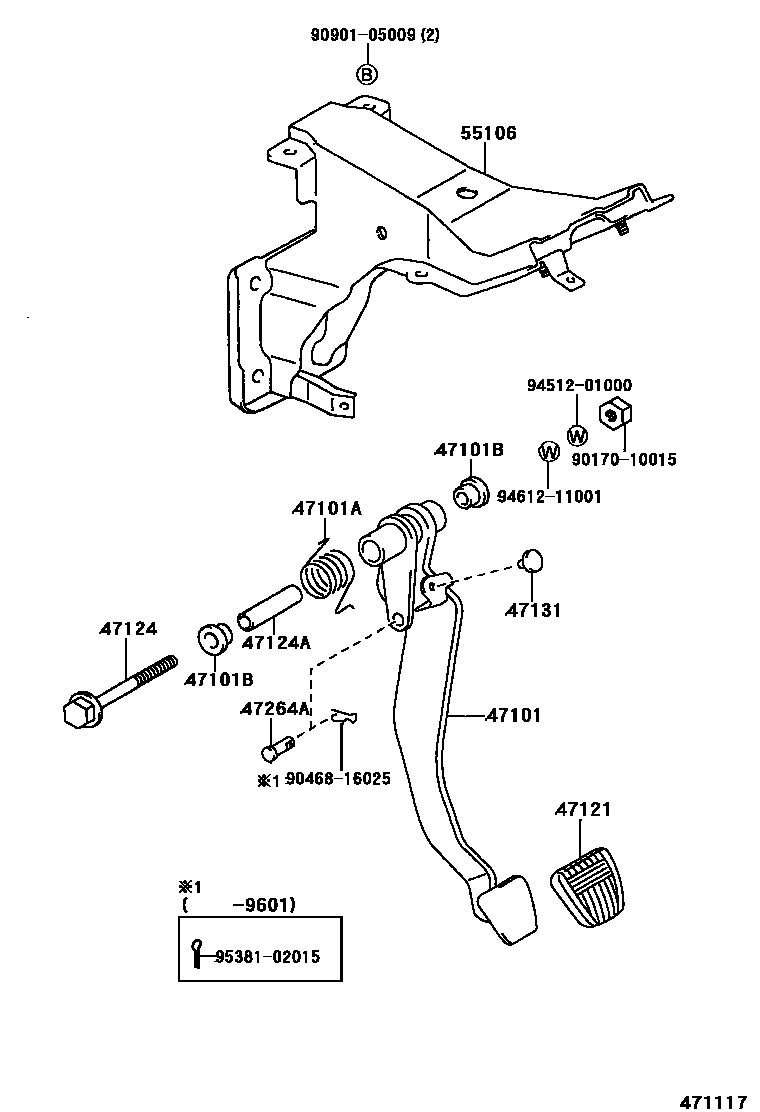

BRAKE PEDAL & BRACKET

0001 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-28100iTCR1#,2#..LHD..MTM199005-199912

main47101-28110iTCR11..LHD..ATM199005-199306

main47101-28111iTCR1#..LHD..ATM199306-199912

main47101-28130iTCR1#,2#..RHD..MTM199005-199108

main47101-28131iTCR1#..RHD..MTM199108-199912

main47101-28140iTCR1#,2#..RHD..ATM199005-199608

main47101-28190iTCR1#..RHD..ATM199608-199912

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35036iTCR1#,2#199005-199608

main90949-03056iTCR1#..RHD..ATM199608-199912

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iTCR1#,2#199005-199912

47121PAD, BRAKE PEDAL

main31321-14020iTCR1#,2#..MTM199005-199912

main47121-12011iTCR1#,2#..ATM199005-199912

47124SHAFT, BRAKE PEDAL

main90101-10043iTCR1#,2#199005-199108

main90105-10017iTCR1#,2#199108-199912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iTCR1#,2#199005-199912

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iTCR1#,2#199005-199308

main90541-06036iTCR1#,2#199308-199912

47264APIN(FOR PUSH ROD)

main90240-10037iTCR1#,2#199005-199912

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28110iTCR1#,2#..LHD199101-199308

main55106-28111iTCR1#,2#..LHD199308-199912

main55106-28170iTCR11..RHD..ATM199308-199408

W(*CRC)

main55106-28190iTCR1#..RHD199608-199912

main55106-28200iTCR1#..RHD..ATM199608-199912

W(*CRC)

main55106-95D00iTCR1#,2#..LHD199005-199101

main55106-95D01iTCR1#,2#..RHD199005-199608

9017010015

main90170-10015

9046816025

main90468-16025

9090105009

main90901-05009

9451201000

main94512-01000

9461211001

main94612-11001

9538102015

main95381-02015

15 parts on this diagram · 2 diagrams in section
