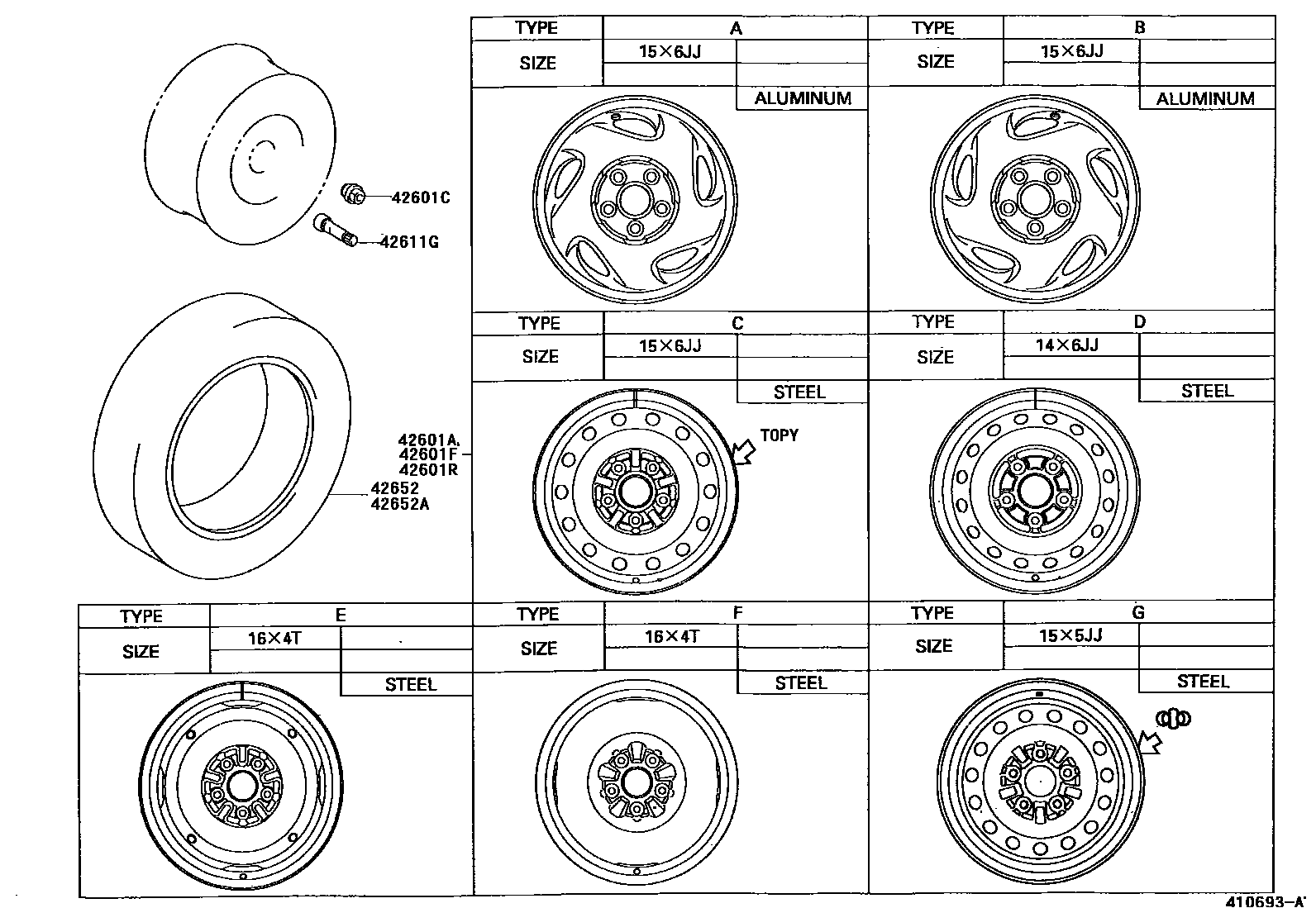

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
15X6JJ,TYPE A:REFER TO ILLUSTRATION; 15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL)
15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3,8H4 ,8H5; 14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
14X6JJ,BELGIUM SPEC,TYPE D,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3,8H4 ,8H5; 15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
15X6JJ,BELGIUM SPEC OR DENMARK SPEC,TYPE G,BLACK; 15X6JJ,BELGIUM SPEC,TYPE G,BLACK; 15X6JJ,TYPE G:REFER TO ILLUSTRATION,BLACK
15X6JJ,BELGIUM SPEC OR DENMARK SPEC,TYPE C,BLACK; 15X6JJ,BELGIUM SPEC,TYPE C,BLACK; 15X6JJ,TYPE C:REFER TO ILLUSTRATION,BLACK
16X4T,TYPE F:REFER TO ILLUSTRATION,TOPY
16X4T,TYPE F:REFER TO ILLUSTRATION,TOPY
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL)
15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
16X4T,TYPE E:REFER TO ILLUSTRATION,CHUO SEIKI
16X4T,TYPE E:REFER TO ILLUSTRATION,CHUO SEIKI
42601CNUT, HUB (FOR AXLE)
W(ALUMINUM WHEEL)
42601FWHEEL, DISC (FOR FRONT)
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH; 15X6JJ,TYPE A:REFER TO ILLUSTRATION,RH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,LH; 15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3,8H4 ,8H5; 14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3,8H4 ,8H5; 15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
15X6JJ,BELGIUM SPEC OR DENMARK SPEC,TYPE G,BLACK
15X6JJ,BELGIUM SPEC OR DENMARK SPEC,BLACK,TYPE C; 15X6JJ,BELGIUM SPEC,BLACK,TYPE C
15X6JJ,TYPE A:REFER TO ILLUSTRATION,RH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,LH
42601RWHEEL, DISC (FOR REAR)
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH; 15X6JJ,TYPE A:REFER TO ILLUSTRATION,RH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,LH; 15X6JJ,TYPE B:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL),LH
14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3,8H4 ,8H5; 14X6JJ,TYPE D:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK
15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3,8H4 ,8H5; 15X6JJ,TYPE C:REFER TO ILLUSTRATION,SILVER,041 ,3H8 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
15X6JJ,BELGIUM SPEC OR DENMARK SPEC,TYPE G,BLACK
15X6JJ,BELGIUM SPEC OR DENMARK SPEC,BLACK,TYPE C; 15X6JJ,BELGIUM SPEC,BLACK,TYPE C
15X6JJ,TYPE A:REFER TO ILLUSTRATION, W(ALUMINUM WHEEL),RH
15X6JJ,TYPE B:REFER TO ILLUSTRATION,LH
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
215/65R15,W(TUBE); 215/65R15,W(TUBE),W(ALUMINUM WHEEL),W/TUBE
205/70R14
215/65R15
205/70R14
215/65R15
215/65R15
42652ATIRE (FOR SPARE)
215/65R15,W(TUBE); 215/65R15,W(TUBE),W(ALUMINUM WHEEL),W/TUBE
205/70R14; 205/70R14,BELGIUM SPEC OR DENMARK SPEC,205/70R14; 205/70R14,BELGIUM SPEC,205/70R14
215/65R15,BELGIUM SPEC OR DENMARK SPEC,215/65R15; 215/65R15,BELGIUM SPEC,215/65R15
T145/80D16
205/70R14
215/65R15
215/65R15
7 parts on this diagram · 3 diagrams in section
