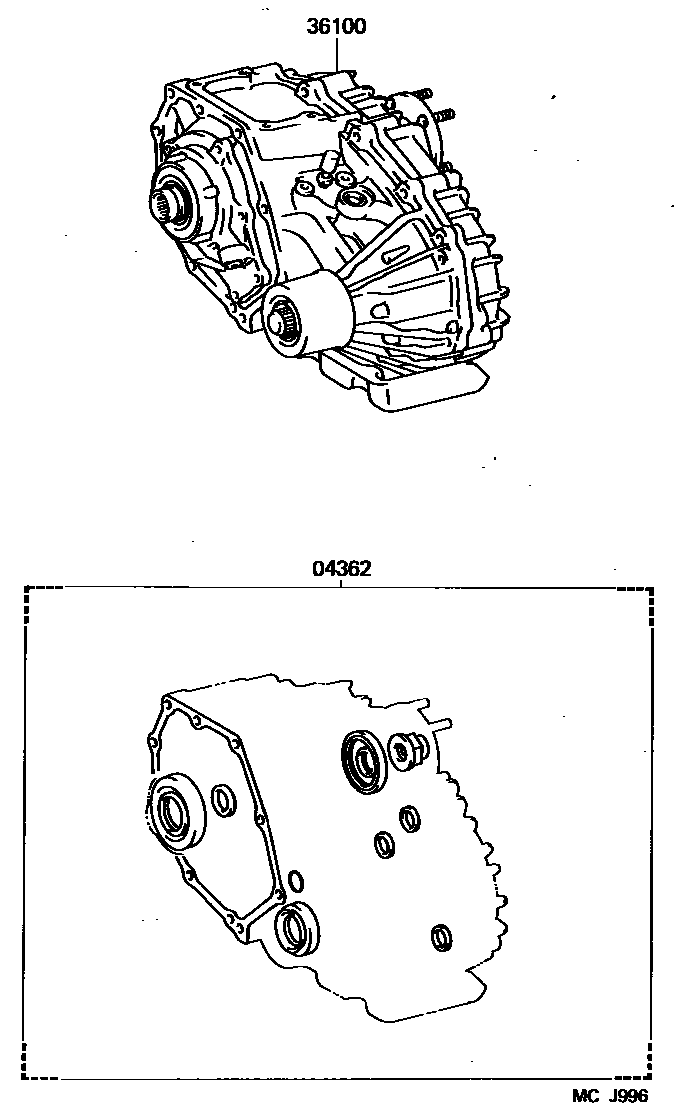

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-28040iTCR2#..ATM199005-199308

main04362-28050iTCR2#..MTM199005-199503

main04362-28051iTCR2#199503-199912

36100TRANSFER ASSY

main36100-28121iTCR2#..ATM199005-199308

main36100-28131iTCR2#..W199108-199308

main36100-28141iTCR20; TCR21..W199108-199308

AUSTRIA SPEC OR W(215/65R15 TIRE); W(215/65R15 TIRE)

main36100-28230iTCR20199308-199508

main36100-28231iTCR20199508-199604

main36100-28240iTCR20; TCR21199308-199508

W(215/65R15 TIRE)

main36100-28241iTCR20; TCR21199508-199604

W(215/65R15 TIRE)

main36100-28360iTCR2#199609-199912

2 parts on this diagram · 1 diagram in section
