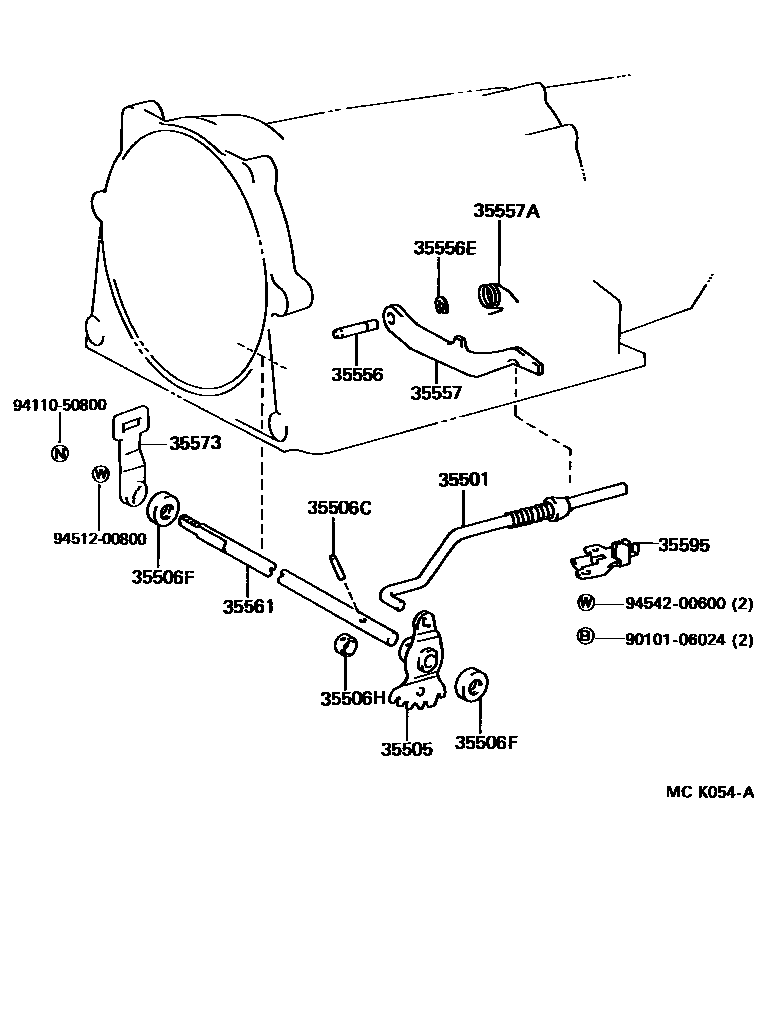

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A46DE,A46DF 0002 1A46DE,A46DF

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iTCR1#,2#..ATM199005-199912

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iTCR1#,2#..ATM199005-199912

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iTCR1#,2#..ATM199005-199912

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001×2iTCR1#,2#..ATM199005-199107

main90311-11003×2iTCR1#,2#..ATM199107-199912

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iTCR1#,2#..ATM199005-199912

35556SHAFT, PARKING LOCK PAWL

main35556-26010iTCR1#,2#..ATM199005-199912

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTCR1#,2#..ATM199005-199912

35557PAWL, PARKING LOCK

main35557-26010iTCR1#,2#..ATM199005-199511

main35557-26020iTCR1#..ATM199511-199912

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iTCR1#,2#..ATM199005-199912

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iTCR1#,2#..ATM199005-199912

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-28010iTCR1#,2#..ATM199005-199912

35595BRACKET, PARKING LOCK PAWL

main35595-40010iTCR1#,2#..ATM199005-199912

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 2 diagrams in section
