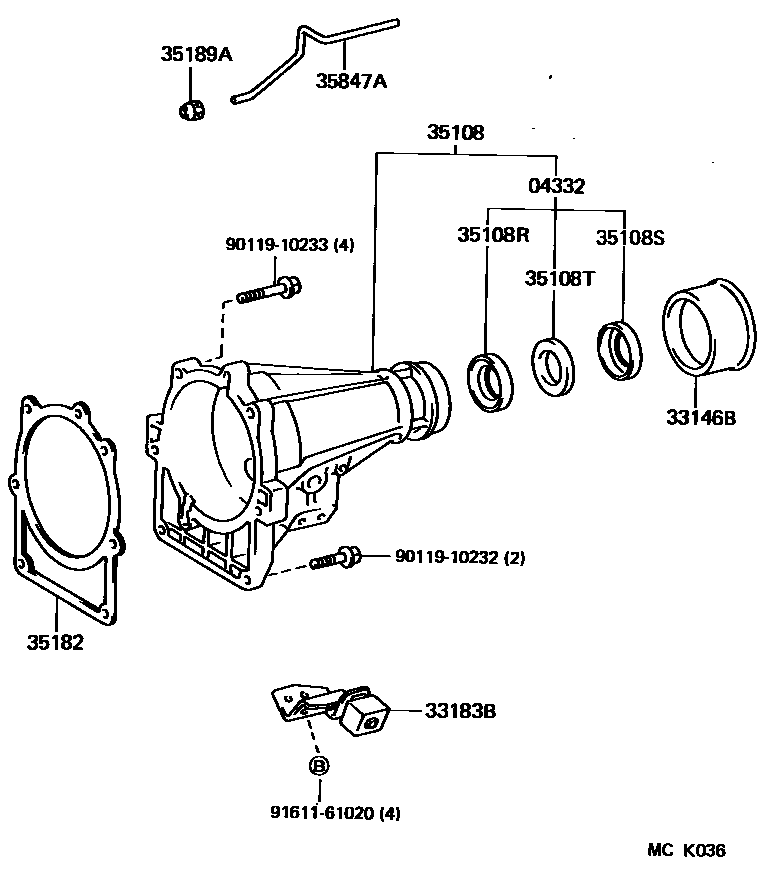

EXTENSION HOUSING (ATM)

0001 1A46DE 0002 1A46DF

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iTCR1#..ATM199005-199608

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-28010iTCR1#..ATM199005-199203

main33146-30010iTCR1#..ATM199203-199308

main33146-30020iTCR11..ATM..W199308-199411

33183BDAMPER, EXTENSION HOUSING DYNAMIC(ATM)

main33183-28010iTCR1#..ATM199005-199912

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-24031iTCR1#..ATM199005-199308

main35108-28020iTCR1#..ATM199308-199912

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iTCR1#..ATM199005-199308

main90311-38032iTCR1#..ATM199308-199912

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iTCR1#..ATM199005-199912

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iTCR1#..ATM199005-199912

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iTCR1#,2#..ATM..ARL199005-199012

main35182-28010iTCR11..ATM..W199005-199012

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iTCR1#..ATM199005-199912

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iTCR1#..ATM199005-199912

9011910232

main90119-10232

9011910233

main90119-10233

9161161020

main91611-61020

13 parts on this diagram · 2 diagrams in section
