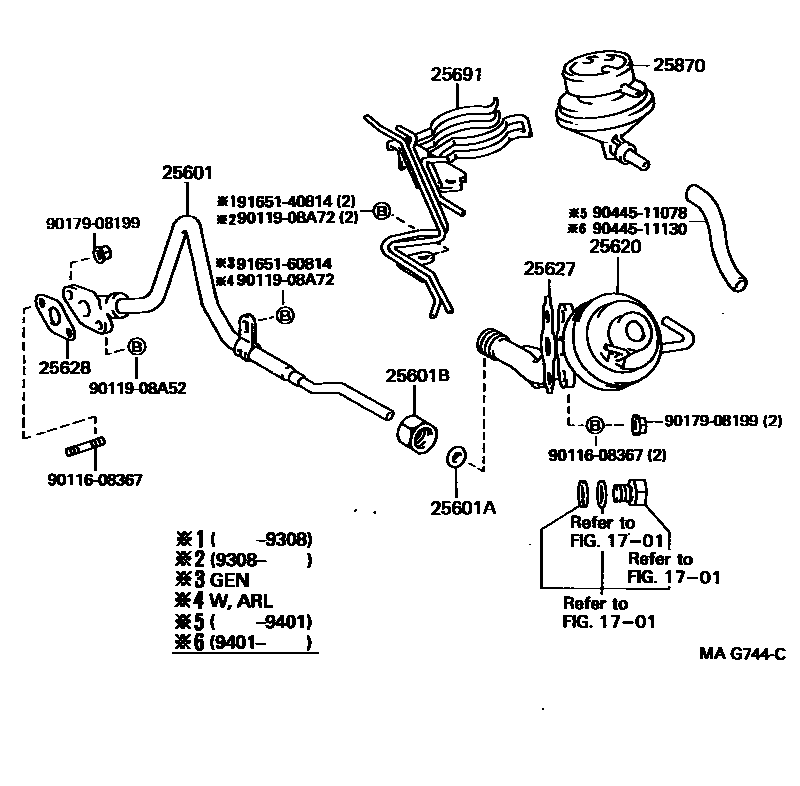

EXHAUST GAS RECIRCULATION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-76010i2TZFE..TCR1#,2#..ARL,W199005-199608

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-12042i2TZFE..TCR1#,2#..ARL,W199005-199608

25601BNUT, UNION, EGR PIPE, NO.1

main90402-20073i2TZFE..TCR1#,2#..ARL,W199005-199608

25620VALVE ASSY, EGR

main25620-76010i2TZFE..TCR1#,2#..ARL,W199005-199608

25627GASKET, EGR VALVE

main25627-76010i2TZFE..TCR1#,2#..ARL,W199005-199608

25628GASKET, EGR INLET

main25628-76010i2TZFE..TCR1#,2#..ARL,W199005-199608

25691BRACKET, EGR VACUUM MODULATOR

main25691-76010i2TZFE..TCR1#,2#..ARL,W199005-199608

25870VALVE ASSY, EGR VACUUM MODULATOR

main25870-76010i2TZFE..TCR1#,2#..ARL,W199005-199401

main25870-76030i2TZFE..TCR1#,2#..ARL,W199401-199608

9011608367

main90116-08367

9011908A52

main90119-08A52

9011908A72

main90119-08A72

9017908199

main90179-08199

9044511078

main90445-11078

9044511130

main90445-11130

9165140814

main91651-40814

9165160814

main91651-60814

17 parts on this diagram · 1 diagram in section
