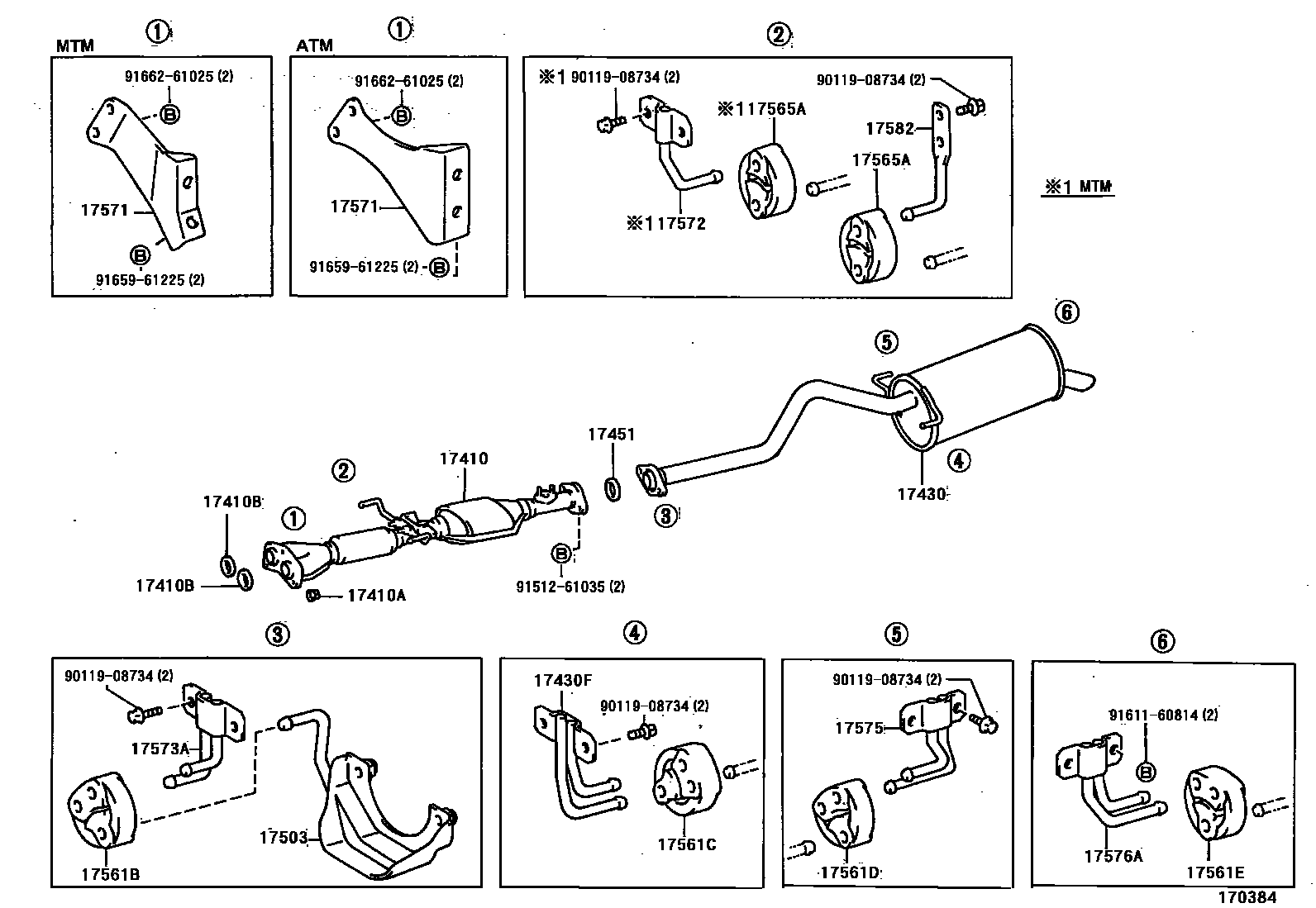

EXHAUST PIPE

0001 1 0002 1W(CONVERTER) 0003 1 0004 1W(CONVERTER)

17410PIPE ASSY, EXHAUST, FRONT

main17410-76020i2TZFE..TCR1#,2#..W199005-199401

main17410-76030i2TZFE..TCR1#,2#..LHD..W199005-199401

W(CONVERTER)

main17410-76051i2TZFE..TCR1#,2#..ARL199005-199401

main17410-76140i2TZFE..TCR10..GEN; 2TZFE..TCR11..RHD..MTM199308-199401

LEADED GASOLINE

main17410-76150i2TZFE..TCR1#,2#..W199401-199412

main17410-76151i2TZFE..TCR1#,2#..W199412-199607

main17410-76152i2TZFE..TCR1#,2#..W199607-199608

main17410-76160i2TZFE..TCR1#..ARL199401-199607

main17410-76161i2TZFE..TCR1#..ARL199607-199608

main17410-76170i2TZFE..TCR10..LHD..ATM; 2TZFE..TCR11..RHD..MTM199401-199607

LEADED GASOLINE

main17410-76171i2TZFE..TCR10..LHD..ATM; 2TZFE..TCR11..RHD..MTM199607-199801

LEADED GASOLINE

main17410-76172i2TZFE..TCR10..LHD..ATM; 2TZFE..TCR11..RHD..MTM199801-199912

LEADED GASOLINE

main17410-76201i2TZFE..TCR1#,2#..W199608-199801

main17410-76202i2TZFE..TCR1#,2#..W199801-199912

main17410-76221i2TZFE..TCR1#..ARL199608-199801

main17410-76222i2TZFE..TCR1#..ARL199801-199912

main17410-76230i2TZFE..TCR1#..ARL199810-199912

W(CONVERTER)

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i2TZFE..TCR1#,2#199005-199912

17410BGASKET, EXHAUST PIPE

main90917-06039×2i2TZFE..TCR1#,2#199005-199912

17430PIPE ASSY, EXHAUST, TAIL

main17405-76070i2TZFE..TCR1#,2#..W199604-199608

main17405-76071i2TZFE..TCR1#,2#..W199608-199801

main17405-76072i2TZFE..TCR1#,2#..W199801-199912

main17430-76012i2TZFE..TCR10..GEN; 2TZFE..TCR11..RHD..MTM199308-199401

W/O(CONVERTER)

main17430-76030i2TZFE..TCR1#,2#..ARL199005-199012

main17430-76031i2TZFE..TCR1#,2#..ARL199012-199108

main17430-76032i2TZFE..TCR1#,21..ARL199108-199308

main17430-76033i2TZFE..TCR1#..ARL199308-199401

main17430-76060i2TZFE..TCR1#,2#..W; 2TZFE..TCR11..LHD..MTM199005-199308

W/0(CONVERTER)

main17430-76061i2TZFE..TCR1#,2#..W; 2TZFE..TCR11..LHD..MTM199308-199401

W/O(CONVERTER)

main17430-76070i2TZFE..TCR1#,2#..LHD199005-199308

W(CONVERTER)

main17430-76071i2TZFE..TCR1#,2#..LHD..W199308-199401

W(CONVERTER)

main17430-76110i2TZFE..TCR1#,2#..W199401-199604

main17430-76120i2TZFE..TCR1#,2#..LHD..W199401-199604

W(CONVERTER)

main17430-76130i2TZFE..TCR1#..ARL199401-199801

main17430-76131i2TZFE..TCR1#..ARL199801-199912

main17430-76141i2TZFE..TCR10..LHD..ATM; 2TZFE..TCR11..RHD..MTM199401-199612

LEADED GASOLINE

main17430-76142i2TZFE..TCR10..LHD..ATM; 2TZFE..TCR11..RHD..MTM199612-199801

LEADED GASOLINE

main17430-76143i2TZFE..TCR10..LHD..ATM; 2TZFE..TCR11..RHD..MTM199801-199912

LEADED GASOLINE

main17430-76150i2TZFE..TCR11..ARL199408-199801

W(CONVERTER)

main17430-76151i2TZFE..TCR11..ARL199801-199912

SINGAPORE SPEC

main17430-76170i2TZFE..TCR1#..ARL199810-199912

W(CONVERTER)

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17574-76020i2TZFE..TCR10,20199005-199604

main17574-76030i2TZFE..TCR11,21199005-199604

17451GASKET, EXHAUST PIPE

main90917-06043i2TZFE..TCR1#,2#..LHD..W199005-199608

W(CONVERTER),FR

main90917-06057×2i2TZFE..TCR1#,2#199604-199912

17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR

main17503-76010i2TZFE..TCR1#,2#199005-199108

main17503-76020i2TZFE..TCR1#,21..ARL,GEN199108-199401

main17503-76031i2TZFE..TCR1#..ARL199608-199912

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZFE..TCR1#,2#199005-199401

17561CSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZFE..TCR1#,2#199005-199912

17561DSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZFE..TCR1#,2#199005-199912

17561ESUPPORT, EXHAUST PIPE, NO.1

main17561-74110i2TZFE..TCR1#,2#199005-199912

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i2TZFE..TCR1#,2#..MTM; 2TZFE..TCR1#..ATM199308-199401

main17565-76030i2TZFE..TCR1#,2#..MTM; 2TZFE..TCR1#,21..ATM199112-199308

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-76040i2TZFE..TCR1#,2#..ATM199005-199401

main17571-76050i2TZFE..TCR1#,2#..MTM199005-199401

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17583-76010i2TZFE..TCR1#,2#199005-199112

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-76030i2TZFE..TCR1#,2#199005-199401

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-76020i2TZFE..TCR1#,2#199005-199604

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-76030i2TZFE..TCR11..RHD..MTM;2TZFE..TCR1#..ARL,GEN,V199604-199912

17582BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER

main17582-76010i2TZFE..TCR1#,2#199005-199401

9011908734

main90119-08734

9151261035

main91512-61035

9161160814

main91611-60814

9165961225

main91659-61225

9166261025

main91662-61025

23 parts on this diagram · 4 diagrams in section
