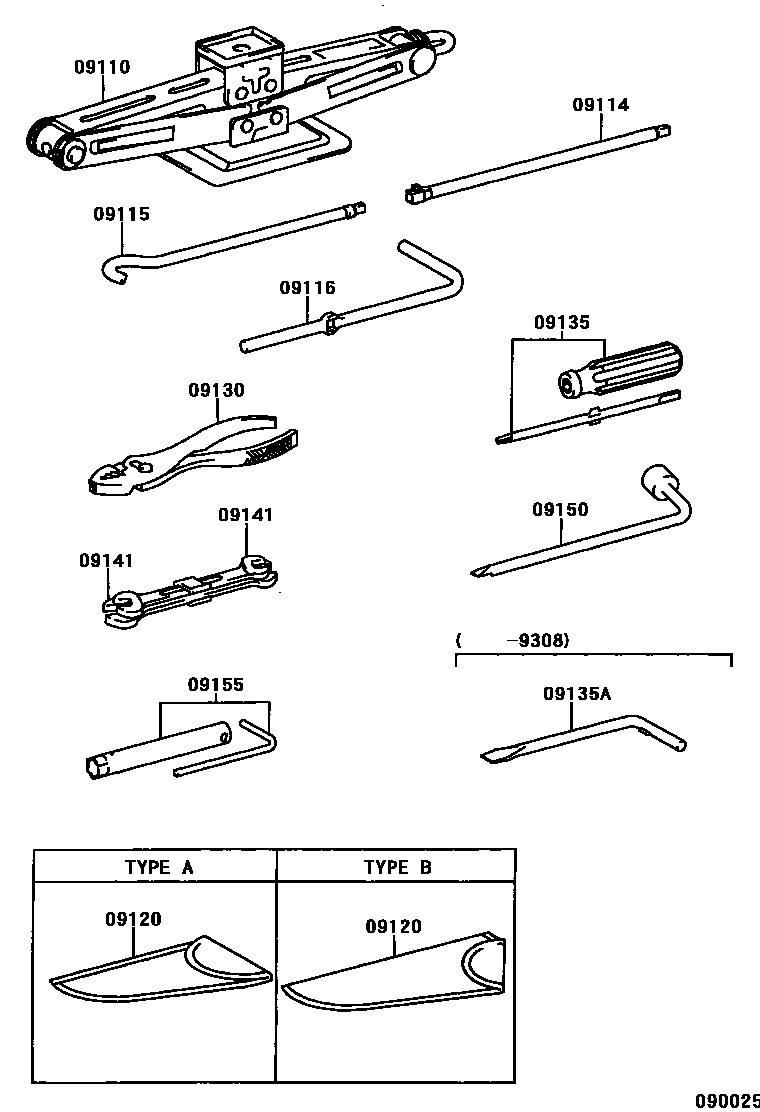

STANDARD TOOL

09110JACK ASSY

main09110-28060iTCR1#,2#..ARL199005-199912

main09110-28110iTCR1#,2#..GEN,V,W199606-199912

main09111-28050iTCR1#,2#..GEN,V,W199005-199606

sub09110-28110

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iTCR1#,2#199210-199610

main09114-60050iTCR1#,2#199005-199210

sub09114-28010

main09114-60070iTCR1#,2#199610-199912

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iTCR1#,2#199005-199912

09116LEVER, JACK HANDLE

main09116-35041iTCR1#,2#199005-199610

main09116-60010iTCR1#,2#199610-199912

09120BAG, TOOL

main09120-22030iTCR1#,2#..ARL,W199308-199912

TYPE B:REFER TO ILLUSTRATION

main09120-28020iTCR10..LHD;TCR11..MTM;TCR11..LHD..ATM199005-199912

TYPE A:REFER TO ILLUSTRATION

09130PLIERS

main99913-11500iTCR1#,2#199005-199912

09135DRIVER, SCREW

main99915-10700iTCR1#,2#199005-199912

09135ABIT, SCREW DRIVER

main09135-00012iTCR11199005-199308

09141SPANNER

main99914-10810iTCR10..LHD;TCR11..MTM;TCR11..LHD..ATM199005-199912

8 X 10

main99914-11214iTCR10..LHD;TCR11..MTM;TCR11..LHD..ATM199005-199912

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35020iTCR1#,2#199005-199308

sub09150-40010

main09150-40010iTCR1#,2#199308-199912

09155WRENCH, SPARK PLUG

main09155-74010iTCR1#,2#199005-199912

11 parts on this diagram · 1 diagram in section
