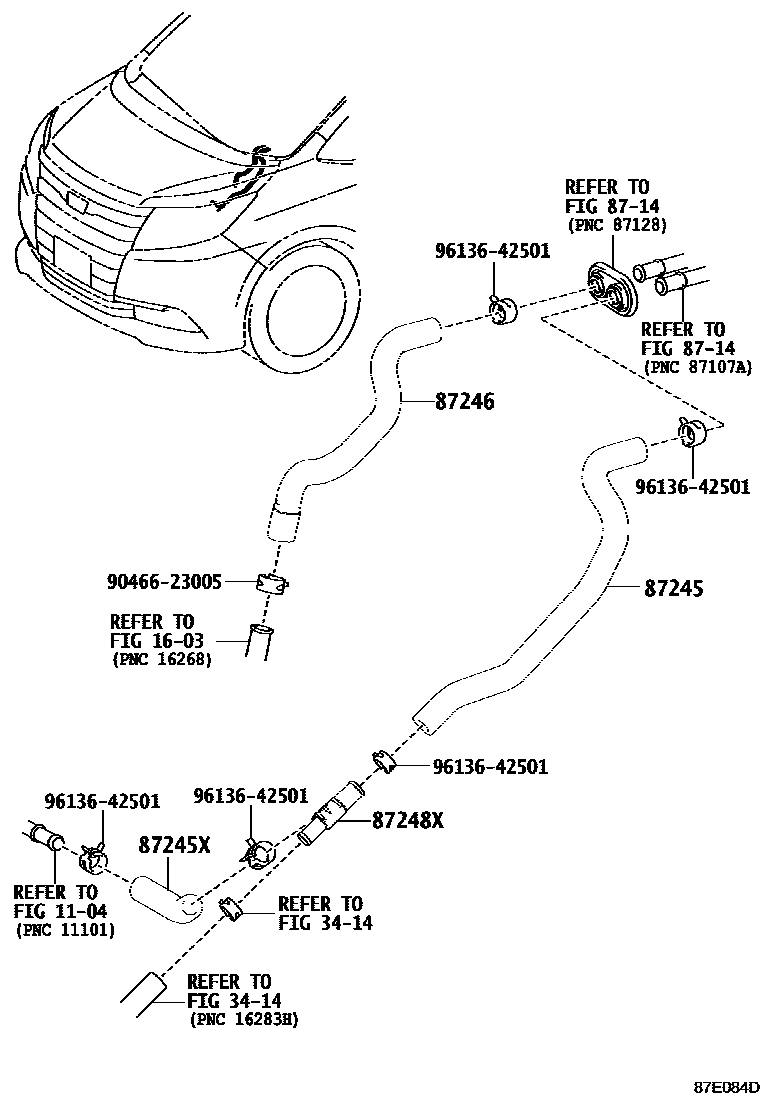

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT,W/O(REAR HEATER) 0002 1FRONT,W(REAR HEATER) 0003 1REAR

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-28A60iZRR80..ZS201706

main87245-28A30iZRR80201401-201706

87245XHOSE, HEATER WATER

main87245-28D00iZRR80201401-201706

87246HOSE, HEATER WATER, OUTLET

main87245-28C70iZRR80201401-201706

87248XPIPE, HEATER WATER

main87248-33030iZRR80201401-201706

9046623005

main90466-23005

9613642501

main96136-42501

10 parts on this diagram · 3 diagrams in section
