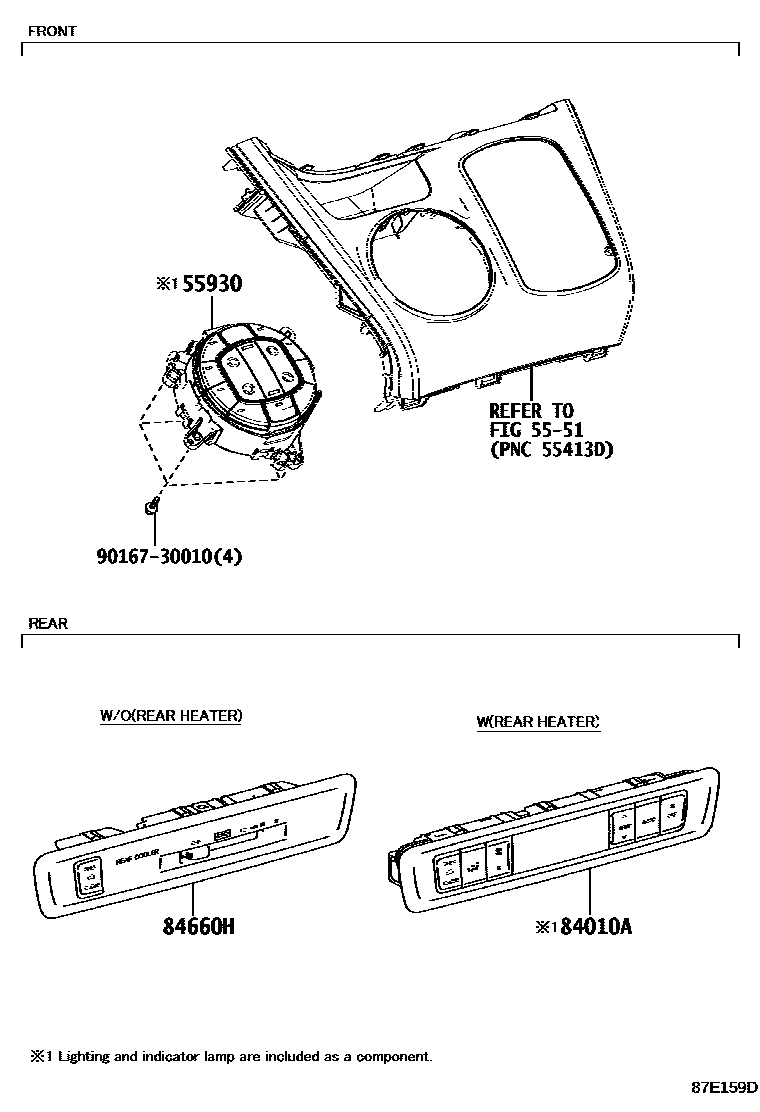

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1FRONT AIR DUCT 0003 1REAR AIR DUCT 0004 1SENSOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

55930CONTROL ASSY, CENTER CLUSTER MODULE

main55930-28050iZRR80..X201401-201706

main55930-28051iZRR80..X201706

main55930-28070iZRR80..SI201401-201706

main55930-28071iZRR80..SI201706

main55930-28081iZRR80..ZS201706

84010ACONTROL & PANEL ASSY, INTEGRATION

main84010-28330supersedes 84010-28320iZRR80..ZS201706

TWIN MOON ROOF-WITH

84660HSWITCH ASSY, COOLER CONTROL

main84660-28030-B0iZRR80..X201401-201706

LT.GRAY,TRIM0#,2#

main84660-28040-B0iZRR80..SI201401-201706

LT.GRAY,TRIM2#

main84660-28060iZRR80..SI201706

BLACK PAINT

9016730010

main90167-30010

5 parts on this diagram · 4 diagrams in section
