NAVIGATION & FRONT MONITOR DISPLAY

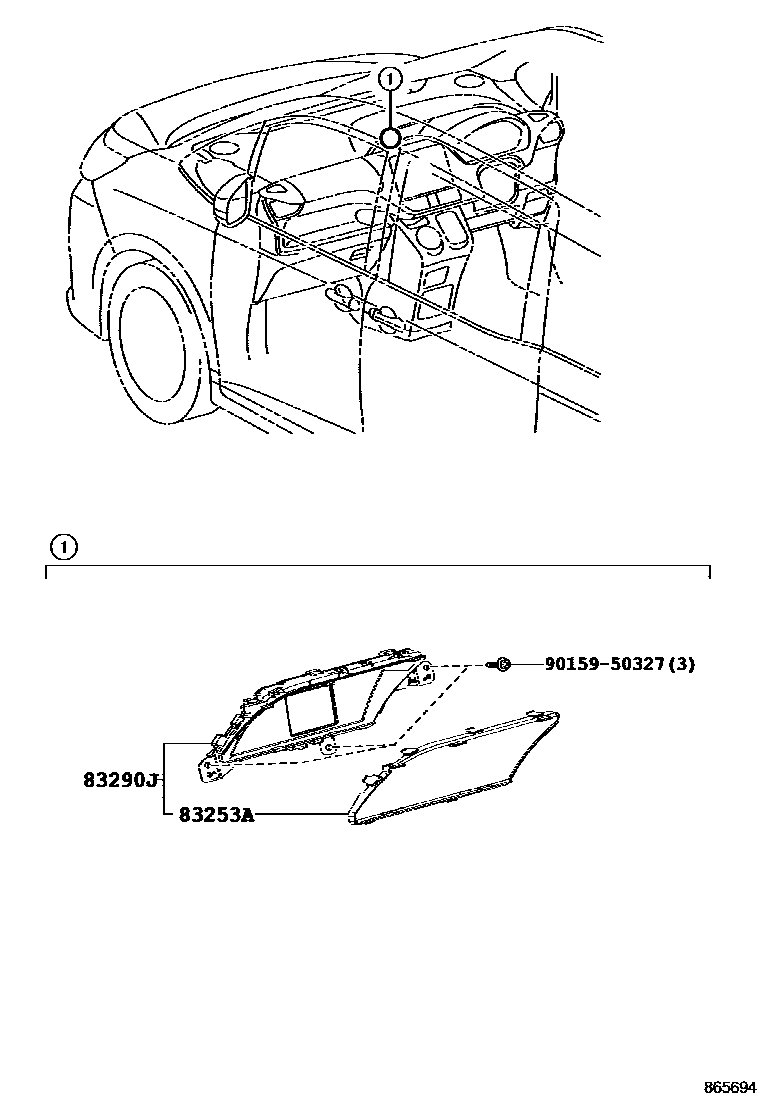

Parts diagram

83253AGLASS, ACCESSORY METER

main83253-28010i201901

main83253-28020i201706-201901

83290JMETER ASSY, ACCESSORY

main83290-28010i201401-201601

main83290-28011i201601-201706

main83290-28012i201706-202004

main83290-28022i201706-201901

main83290-28023i201901-202005

main83290-28030i201401-201601

main83290-28031i201601-201706

main83290-28032i201706-201901

main83290-28033i201901-202004

main83290-V1010i202005

main83290-V1020i202005

main83290-V1030i202005

9015950327

main90159-50327

3 parts on this diagram · 1 diagram in section
