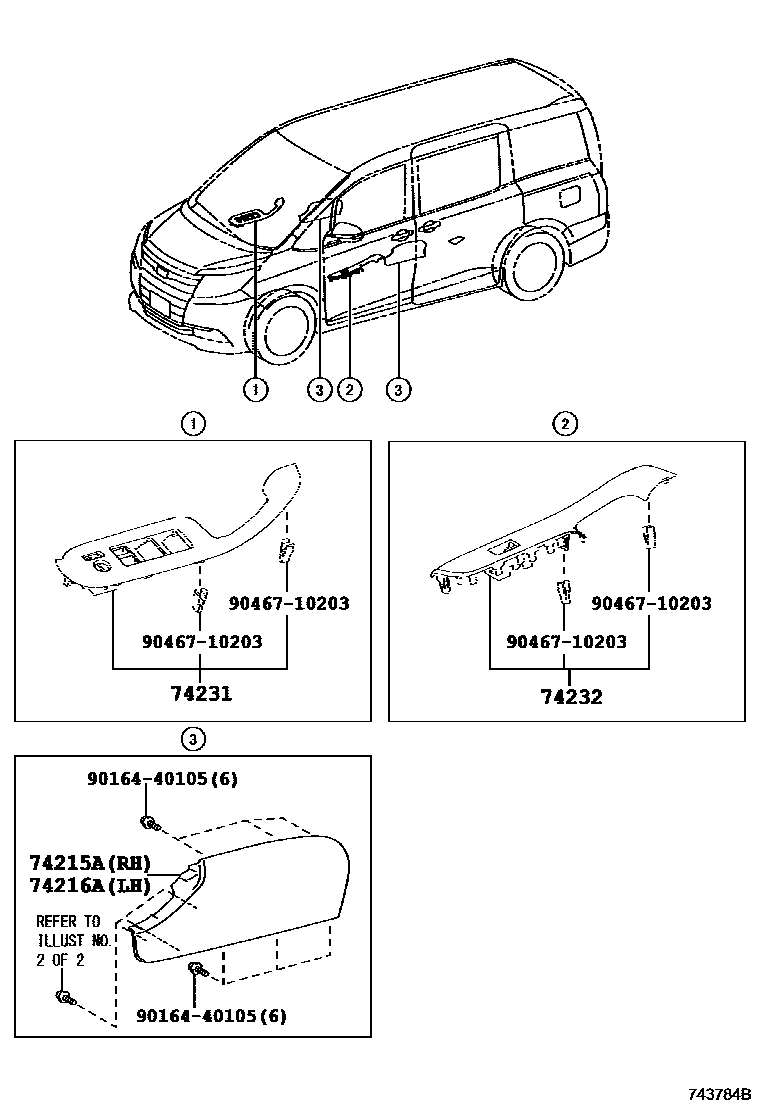

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74215ABASE, DOOR ARMREST RH

main74215-28010-C0iZRR80..SI201401-201706

BLACK,TRIM2#

main74215-28010-C0iZRR80..X201401-201706

BLACK,TRIM0#

74216ABASE, DOOR ARMREST, LH

main74216-28010-C0iZRR80..X201401-201706

BLACK,TRIM0#

main74216-28010-C0iZRR80..X201401-201706

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28C10-A0iZRR80..X201401-201706

IVORY,TRIM0#

main74231-28C10-C0iZRR80..X201706-202112

BLACK,TRIM2#

main74231-28C50-J0iZRR80..SI201401-201706

DK.BLUE,TRIM2#

main74231-28D10iZRR80..ZS201706-202112

main74231-28D30iZRR80..SI201706-202112

TWIN MOON ROOF-WITH

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28730-A0iZRR80..X201401-201706

IVORY,TRIM0#

main74232-28730-C0iZRR80..X201706-202112

BLACK,TRIM2#

main74232-28730-J0iZRR80..SI201401-201706

DK.BLUE,TRIM2#

main74232-28810iZRR80..07S201706-202112

9016440105

main90164-40105

9046710203

main90467-10203

6 parts on this diagram · 2 diagrams in section
