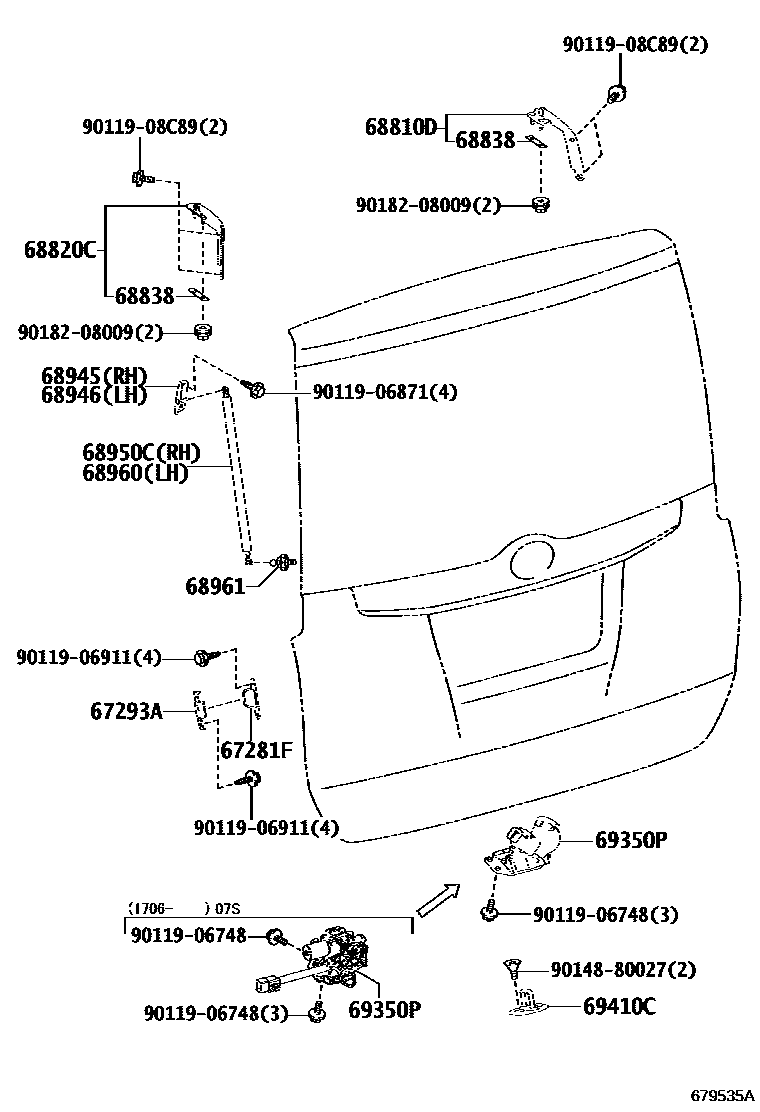

BACK DOOR LOCK & HINGE

67281FSTOPPER, BACK DOOR, LOWER

main67281-28020×2iZRR80201401-201706

67293ACUSHION, BACK DOOR STOPPER

main67293-28040×2iZRR80201401-201706

68810DHINGE ASSY, BACK DOOR, RH

main68810-28050iZRR80201401-201706

68820CHINGE ASSY, BACK DOOR, LH

main68820-28040iZRR80201401-201706

68838PAD, BACK DOOR HINGE, NO.1

main68838-28020×2iZRR80201401-201706

T=1.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-28030iZRR80201401-201706

main68945-28040iZRR80201706

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-28020iZRR80201401-201706

main68946-28030iZRR80201706

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W600iZRR80201401-201706

main68950-0WE50iZRR80..07S201706

main68950-0WF20iZRR80..X201706

68960STAY ASSY, BACK DOOR, LH

main68960-0W680iZRR80201401-201706

main68960-0WE50iZRR80..07S201706

main68960-0WF10iZRR80..X201706

68961BOLT, BACK DOOR STAY

main68961-20140×2iZRR80201706

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28170iZRR80201401-201701

main69350-28180iZRR80..07S201706

main69350-58040iZRR80201701-201706

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60030iZRR80201401-201706

9011906748

main90119-06748

9011906871

main90119-06871

9011906911

main90119-06911

9011908C89

main90119-08C89

9014880027

main90148-80027

9018208009

main90182-08009

18 parts on this diagram · 1 diagram in section
