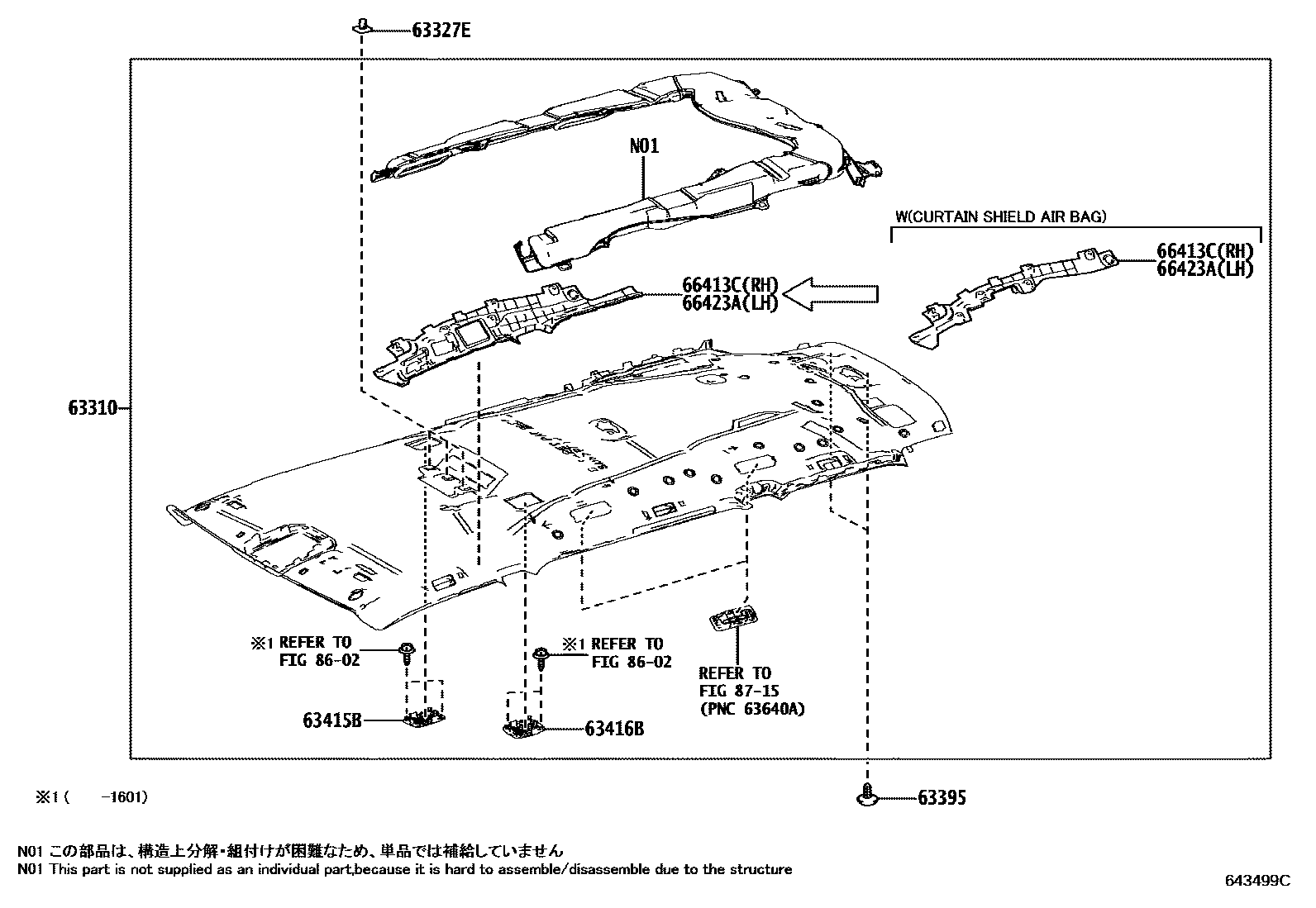

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1TWIN MOON ROOF

63310HEADLINING ASSY, ROOF

main63310-28K40-B0iZRR80..SI201401-201601

LT.GRAY,TRIM2#

main63310-28K41-B0iZRR80..SI201601-201706

LT.GRAY,TRIM2#

main63310-28K42-B2iZRR80..SI201706-201812

DK.GRAY,TRIM2#

main63310-28K43-B2iZRR80..SI201901-202005

DK.GRAY,TRIM2#

main63310-28K73-B0iZRR80..X202005

LT.GRAY,TRIM2#

main63310-28K80-B0iZRR80..X201401-201601

LT.GRAY,TRIM0#,2#

main63310-28K81-B0iZRR80..X201601-201706

LT.GRAY,TRIM0#

main63310-28K82-B0iZRR80..X201706-201812

LT.GRAY,TRIM2#

main63310-28K83-B0iZRR80..X201901-202005

LT.GRAY,TRIM2#

main63310-28L33-B1iZRR80..SI202005

DK.GRAY,TRIM2#

main63310-28K53-B1supersedes 63310-28L03-B1iZRR80..ZS202005

TWIN MOON ROOF-WITH,DK.GRAY,TRIM2#

main63310-28K62-B2supersedes 63310-28L12-B2iZRR80..ZS201706-201812

TWIN MOON ROOF-WITH,DK.GRAY,TRIM2#

main63310-28K63-B2supersedes 63310-28L13-B2iZRR80..ZS201901-202005

TWIN MOON ROOF-WITH,DK.GRAY,TRIM2#

63327EFASTENER, ROOF HEADLINING, NO.1

main90530-10007×3iZRR80..X,ZS201706

63395CLIP, ROOF HEADLINING TRIM

main90467-05021-C0×2iZRR80..07S201706

BLACK,TRIM2#

sub90467-06177

main90467-05021-P4×2iZRR80..SI201401-201706

LT.GRAY,TRIM0#

sub90467-06177

63415BGRILLE, ROOF SPEAKER, RH

main63415-28030-B0iZRR80..X201401-201601

LT.GRAY,TRIM0#,2#

main63415-28030-C0iZRR80..07S201706-202005

BLACK,TRIM2#

63416BGRILLE, ROOF SPEAKER, LH

main63415-28030-B0iZRR80..X201401-201601

LT.GRAY,TRIM0#,2#

main63415-28030-C0iZRR80..07S201706-202005

BLACK,TRIM2#

66413CSPACER, SIDE RAIL, FRONT RH

main66413-28120iZRR80..X201401-201706

main66413-28130iZRR80..ZS201706

66423ASPACER, SIDE RAIL, FRONT LH

main66423-28120iZRR80..X201401-201706

main66423-28130iZRR80..ZS201706

8602

8715

9 parts on this diagram · 2 diagrams in section
