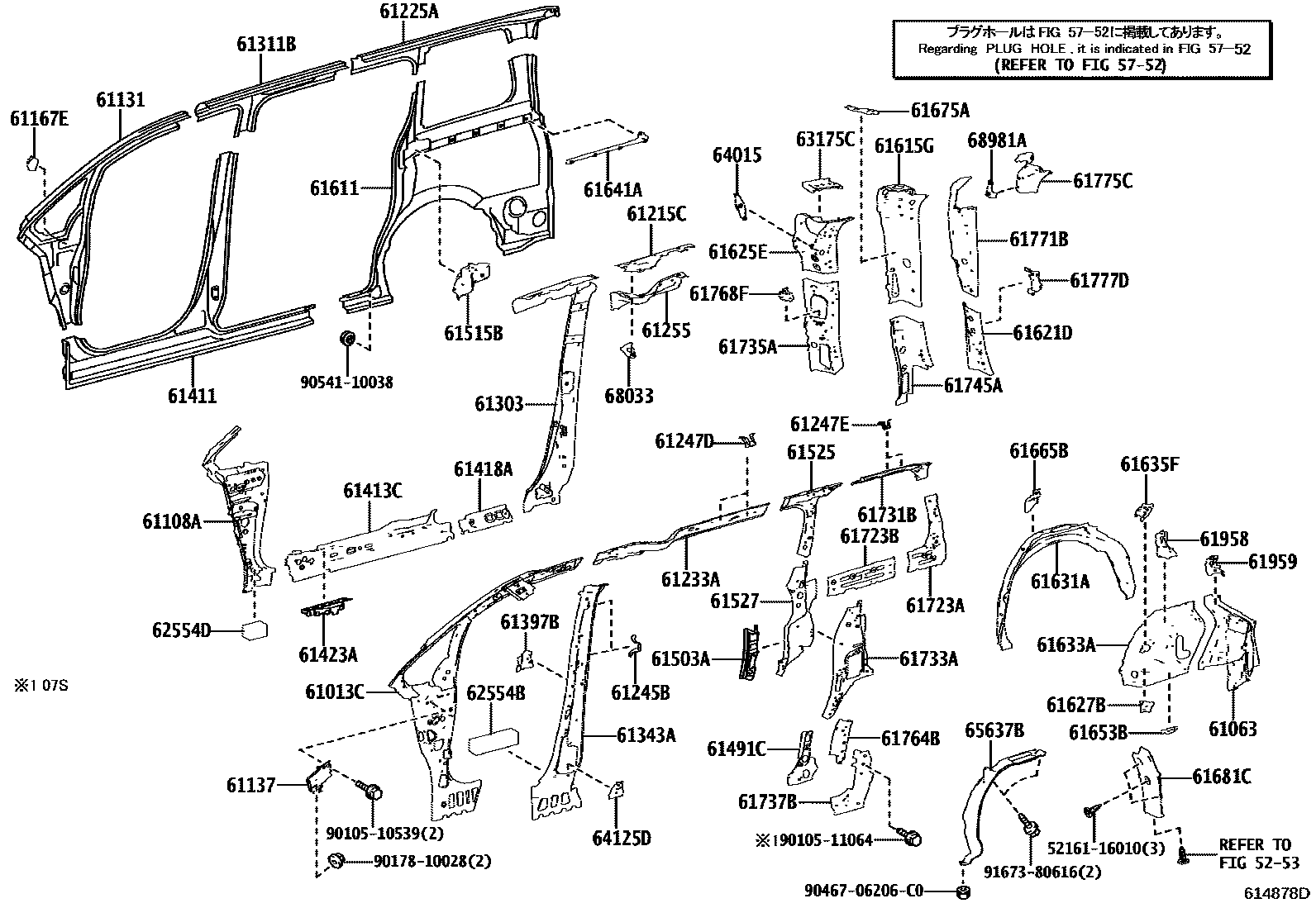

SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE

5253

5752

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-28090iZRR80..X201401-201706

main61013-28100iZRR80..SI201401-201706

61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH

main61063-28140iZRR80201706

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-28040iZRR80201401-201706

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61106-28070iZRR80201706

61137REINFORCEMENT, FRONT PILLAR, OUTER RH

main61137-28060iZRR80201401-201706

61167EBRACKET, NO.6 PILLAR OUTER

main61168-44010iZRR80201401-201706

61215CRAIL, ROOF SIDE, OUTER REAR RH

main61215-28060iZRR80201706

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-28030iZRR80201708

main61225-28040iZRR80201401-201706

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-28120iZRR80201401-201706

61245BBRACKET, ASSIST GRIP, NO.3 RH

main61245-28040×2iZRR80201401-201706

61247DBRACKET, ASSIST GRIP, RH

main61247-28040iZRR80201401-201706

FRONT

main61247-28050iZRR80201401-201706

REAR

61247EBRACKET, ASSIST GRIP, NO.4 RH

main61247-28030iZRR80201401-201706

FRONT

main61247-28060iZRR80201706

REAR

61255PLATE, ROOF SIDE RAIL, OUTER RH

main61255-28050iZRR80201401-201706

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-28040iZRR80201401-201706

main61303-V1020iZRR80202101

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28150iZRR80201706

61343APILLAR, CENTER BODY, INNER RH

main61343-28140iZRR80201401-201706

61397BRETAINER, CENTER BODY PILLAR

main61397-28040iZRR80201401-201706

61411PANEL, ROCKER, OUTER RH

main61411-28100iZRR80201401-201706

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-28060iZRR80201401-201706

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-28050iZRR80201401-201706

61423APANEL, FENDER, INNER LOWER RH

main61423-28050iZRR80201401-201706

61491CPLATE, NO.3 LOWER RAIL, INNER RH

main61491-28030iZRR80201401-201706

61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH

main61503-28110iZRR80201401-201706

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-28090iZRR80201706

61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH

main61077-28090iZRR80201401-201706

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main61527-28050iZRR80201401-201706

61611PANEL, QUARTER, RH

main61601-28B20iZRR80..X201708

main61601-28B30iZRR80..07S201708

main61601-28B40iZRR80..X201401-201706

main61601-28B50iZRR80..07S201706-201708

61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH

main61615-28081iZRR80201401-201706

61621DTROUGH, BACK DOOR OPENING, RH

main61621-28070iZRR80201401-201706

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-28131iZRR80201401-201706

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-28040iZRR80201706

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-28090iZRR80201401-201706

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-28110iZRR80201401-201706

61635FREINFORCEMENT, QUARTER PANEL, UPR RH

main61635-28310iZRR80201401-201706

61641ARETAINER, QUARTER PANEL STEP, NO.1 RH

main61641-28030iZRR80201401-201706

61653BBRACKET, DECK SIDE TRIM

main61653-28070iZRR80201401-201706

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-28060iZRR80201401-201706

61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH

main61675-28050iZRR80201401-201706

61681CEXTENSION, REAR WHEEL OPENING, RH

main61681-28110iZRR80..X201706

main61681-28120iZRR80..07S201706

61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

main61723-28010iZRR80201401-201706

61723BREINFORCEMENT, QUARTER WINDOW OPENING, NO.2 RH

main61728-28010iZRR80201706

61731BPANEL, ROOF SIDE, INNER RH

main61731-28090iZRR80201401-201706

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-28080iZRR80201401-201706

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-28060iZRR80201401-201706

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-28040iZRR80201401-201706

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-28080iZRR80201401-201706

61764BREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61764-28090iZRR80201401-201706

61768FREINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH

main61768-28080iZRR80201401-201706

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-28090iZRR80201401-201706

61775CFRAME, BACK DOOR OPENING SIDE, RH

main61775-28060iZRR80201401-201706

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-28040iZRR80201401-201706

61958BRACKET, REAR SEAT LEG, NO.1 RH

main61958-28070iZRR80201401-201706

61959BRACKET, REAR SEAT LEG, NO.2 RH

main61959-28090iZRR80201401-201706

62554BPAD, PILLAR, NO.4

main62554-52010×2iZRR80201401-201706

62554DPAD, FRONT PILLER

main62939-28020×2iZRR80201401-201706

63175CREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-28060iZRR80201401-201706

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-28020iZRR80201401-201706

64125DANCHOR, PILLAR SEAT BELT, RH

main64125-28050iZRR80201401-201706

65637BLINER, REAR WHEEL HOUSE, RH

main87268-28140iZRR80201401-201706

main87268-28180iZRR80201706

68033BRACKET SUB-ASSY, SLIDE DOOR RAIL, RH

main68361-28070iZRR80201401-201603

sub69418-28121

main68361-28071iZRR80201603-201706

68981ARETAINER, BACK DOOR STAY, RH

main68981-28040iZRR80201401-201706

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010510539

main90105-10539

9010511064

main90105-11064

9017810028

main90178-10028

9046706206C0

main90467-06206C0

9054110038

main90541-10038

9167380616

main91673-80616

70 parts on this diagram · 2 diagrams in section
