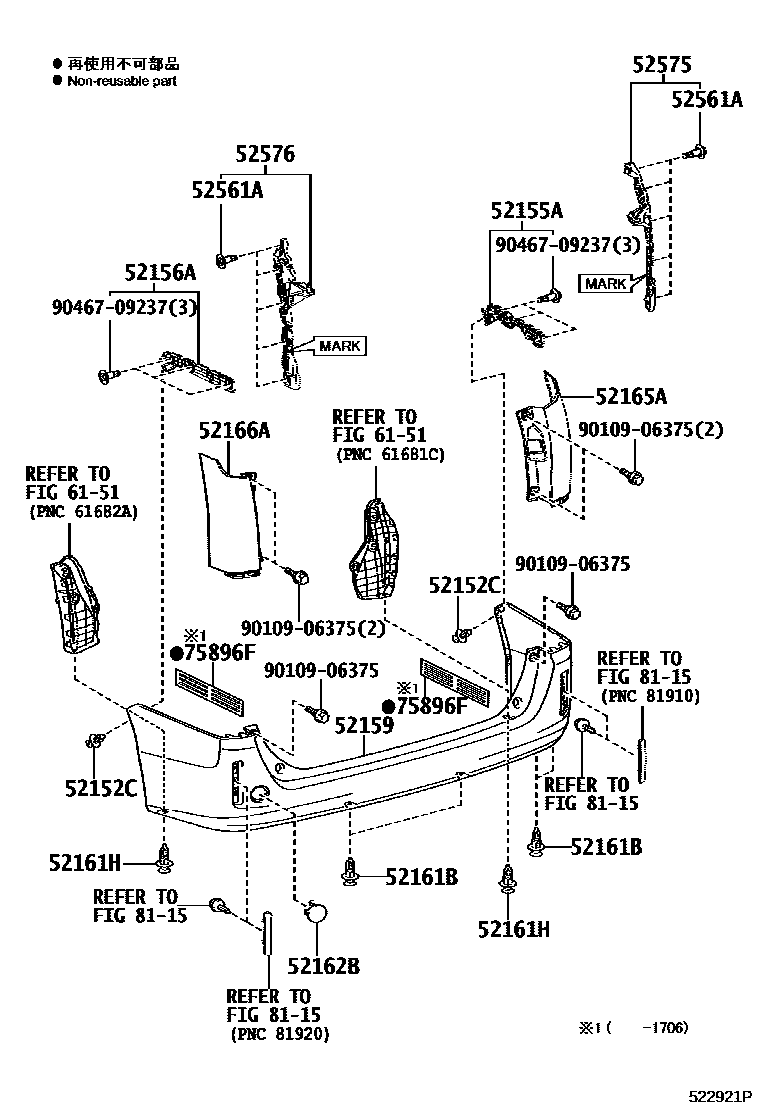

REAR BUMPER & BUMPER STAY
52152CCLIP, REAR BUMPER SIDE
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
sub52161-0K040
52161HPIECE, REAR BUMPER
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
INAZUMA SPARKING BLACK GF,224
DEEP RED M.M.,3R9
DK.VIOLET M.M.,9AF
52165ACOVER, REAR BUMPER, UPR RH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
INAZUMA SPARKING BLACK GF,224
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
52166ACOVER, REAR BUMPER, UPR LH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
INAZUMA SPARKING BLACK GF,224
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
52561ACLIP(FOR REAR BUMPER RETAINER)
52575RETAINER, REAR BUMPER SIDE, RH
MARK 52575-28030
52576RETAINER, REAR BUMPER SIDE, LH
MARK 52576-28020
6151
75896FTAPE, MOULDING
8115
9010906375
main90109-06375
9046709237
main90467-09237
17 parts on this diagram · 2 diagrams in section
