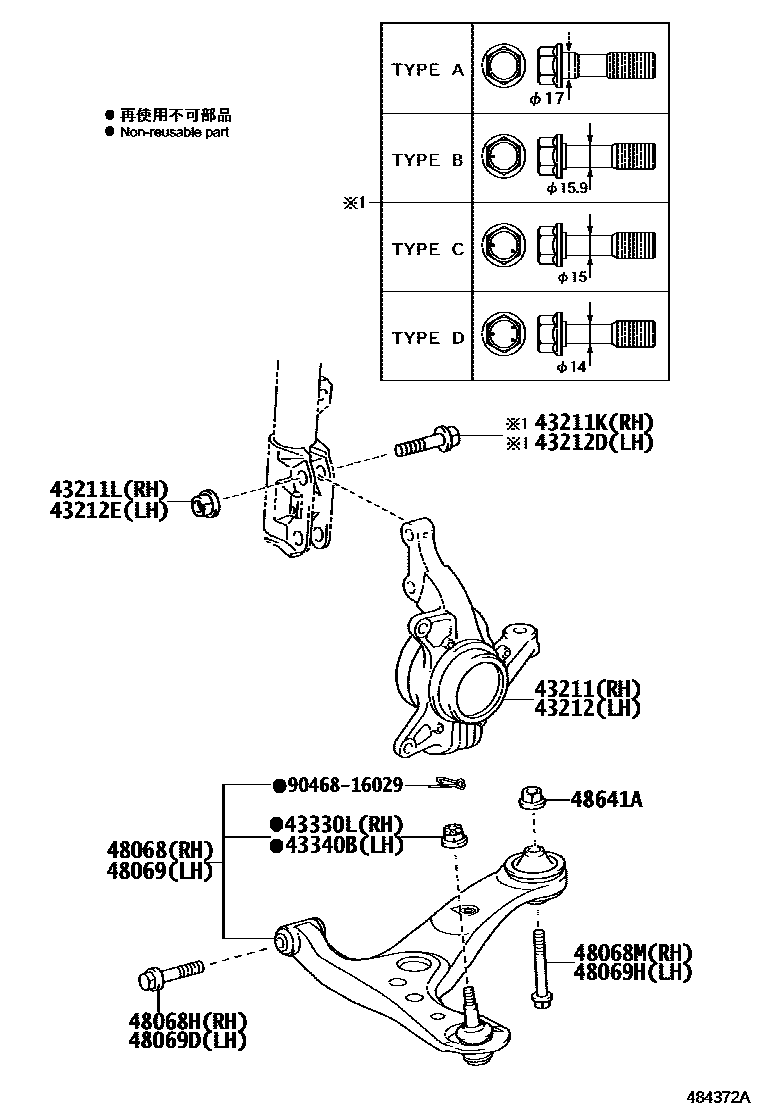

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-44040iZRR80201706

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iZRR80201706-201709

OD=17,TYPE A:REFER ILLUST.

main90105-17012×2iZRR80201709

OD=17,TYPE A:REFER ILLUST.

main90105-17013iZRR80201706

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iZRR80201401-201706

OD=15,TYPE C:REFER ILLUST.

main90105-17015iZRR80201401-201706

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2iZRR80201706

43212KNUCKLE, STEERING, LH

main43212-44040iZRR80201706

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iZRR80201706-201709

OD=17,TYPE A:REFER ILLUST.

main90105-17012×2iZRR80201709

OD=17,TYPE A:REFER ILLUST.

main90105-17013iZRR80201706

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iZRR80201401-201706

OD=15,TYPE C:REFER ILLUST.

main90105-17015iZRR80201401-201706

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2iZRR80201706

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iZRR80201401-201706

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iZRR80201401-201706

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29255iZRR80..X201706

main48068-29265iZRR80..SI201401-201706

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iZRR80201401-201706

main90119-14183iZRR80201708

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14161iZRR80201706

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29255iZRR80..X201401-201706

main48069-29265iZRR80..SI201401-201706

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iZRR80201706-201707

main90119-14183iZRR80201708

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14161iZRR80201401-201706

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iZRR80201401-201706

9046816029

main90468-16029

16 parts on this diagram · 1 diagram in section
