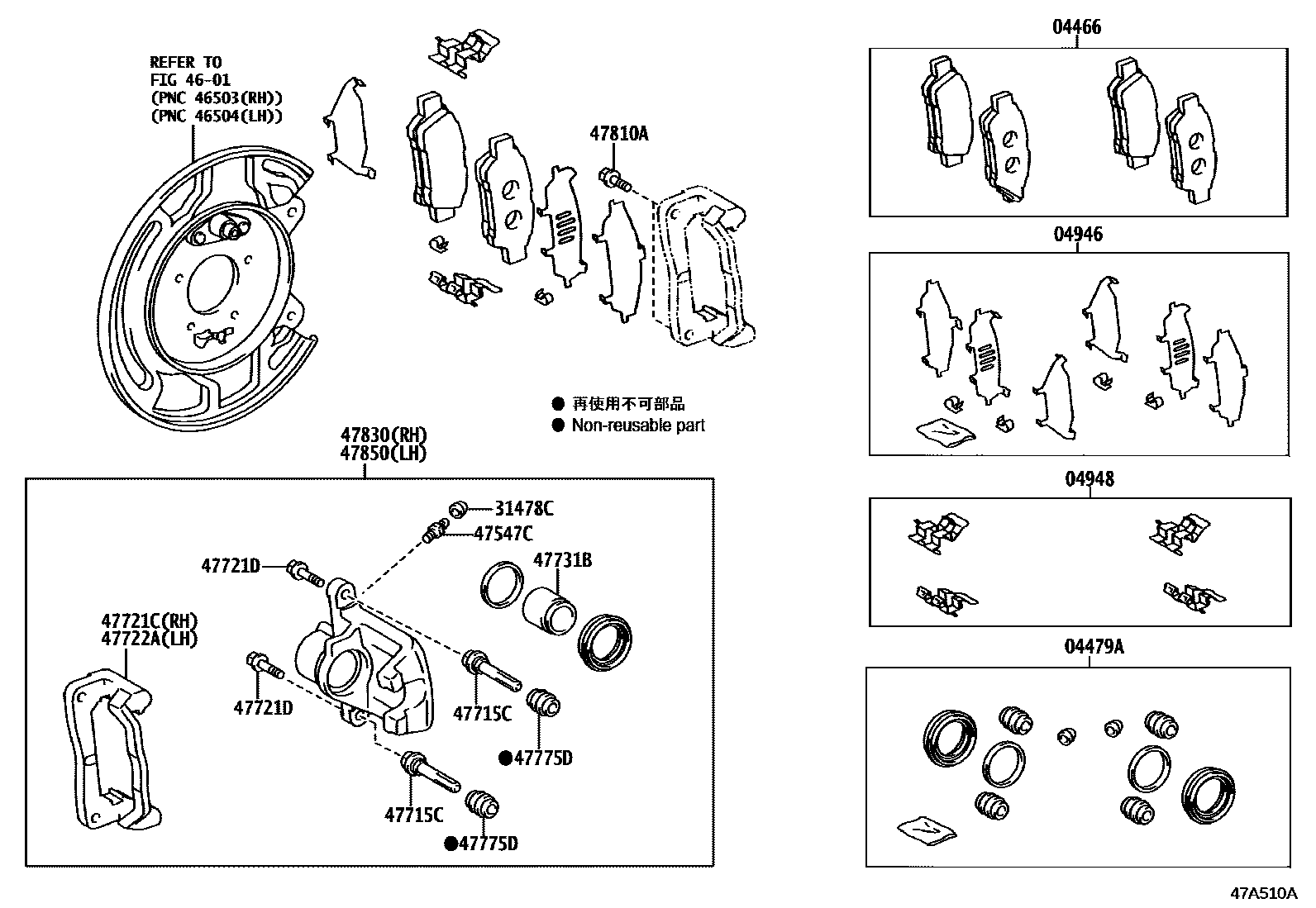

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-28120iZRR80..SI201401-201706

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28200iZRR80..SI201401-201706

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28030iZRR80..SI201401-201706

04948FITTING KIT, DISC BRAKE, REAR

main04948-28030iZRR80..SI201401-201706

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZRR80..SI201401-201706

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZRR80..SI201401-201706

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-52010iZRR80..SI201401-201706

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28020iZRR80..SI201401-201706

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iZRR80..SI201401-201706

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-28010iZRR80..SI201401-201706

47731BPISTON, REAR DISC BRAKE

main47731-28090iZRR80..SI201401-201706

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-02130iZRR80..SI201401-201706

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12185iZRR80..SI201401-201706

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-28080iZRR80..SI201401-201706

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-28080iZRR80..SI201401-201706

16 parts on this diagram · 1 diagram in section
