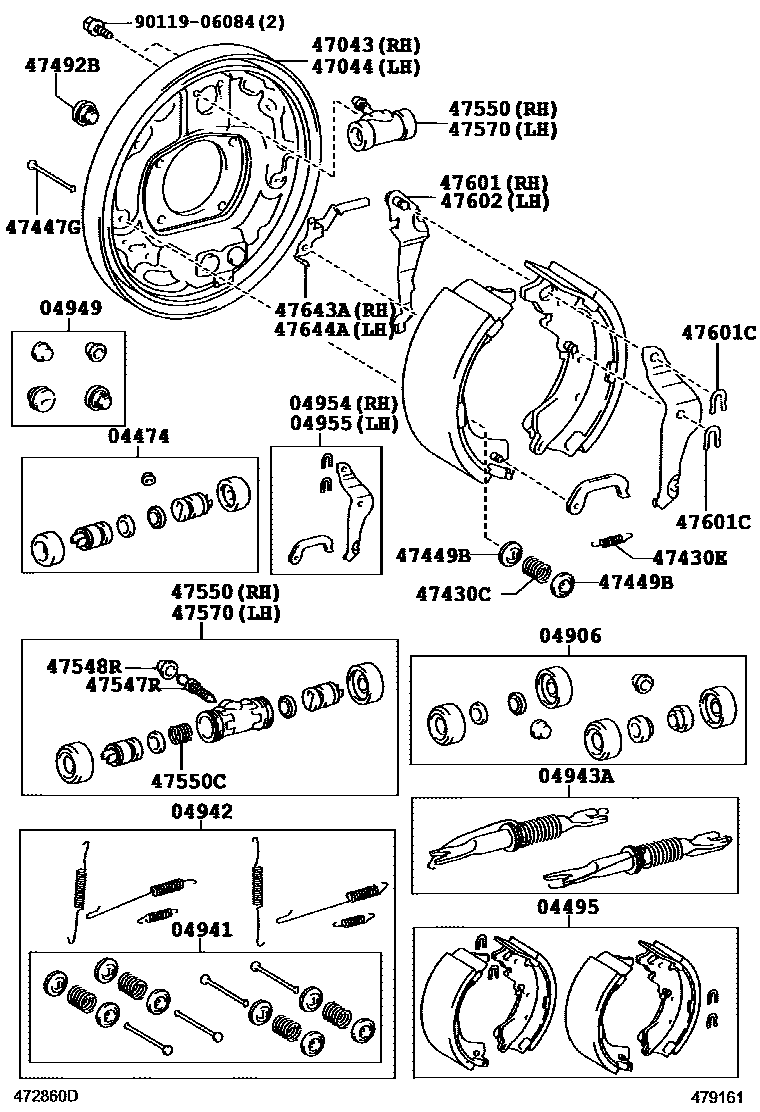

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-12050×2iZRR80..X201401-201706

04495SHOE KIT, REAR BRAKE

main04495-28151iZRR80..X201401-201706

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-33030iZRR80..X201401-201706

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iZRR80..X201401-201706

04942SPRING KIT, REAR BRAKE

main04942-28020iZRR80..X201401-201706

04943ASTRUT KIT, REAR BRAKE

main04943-28010iZRR80..X201401-201706

04949PLUG KIT, REAR BRAKE

main04949-28010iZRR80..X201401-201706

04954REACTION PLATE KIT, REAR BRAKE, RH

main04954-28010iZRR80..X201401-201706

04955REACTION PLATE KIT, REAR BRAKE, LH

main04955-28010iZRR80..X201401-201706

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28151iZRR80..X201401-201706

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28151iZRR80..X201401-201706

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756×4iZRR80..X201401-201706

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076×2iZRR80..X201401-201706

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iZRR80..X201401-201706

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iZRR80..X201401-201706

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iZRR80..X201401-201706

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2iZRR80..X201401-201706

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iZRR80..X201401-201706

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12120iZRR80..X201401-201706

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2iZRR80..X201401-201706

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12120iZRR80..X201401-201706

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28020iZRR80..X201401-201706

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iZRR80..X201401-201706

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28020iZRR80..X201401-201706

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010iZRR80..X201401-201706

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010iZRR80..X201401-201706

9011906084

main90119-06084

27 parts on this diagram · 1 diagram in section
