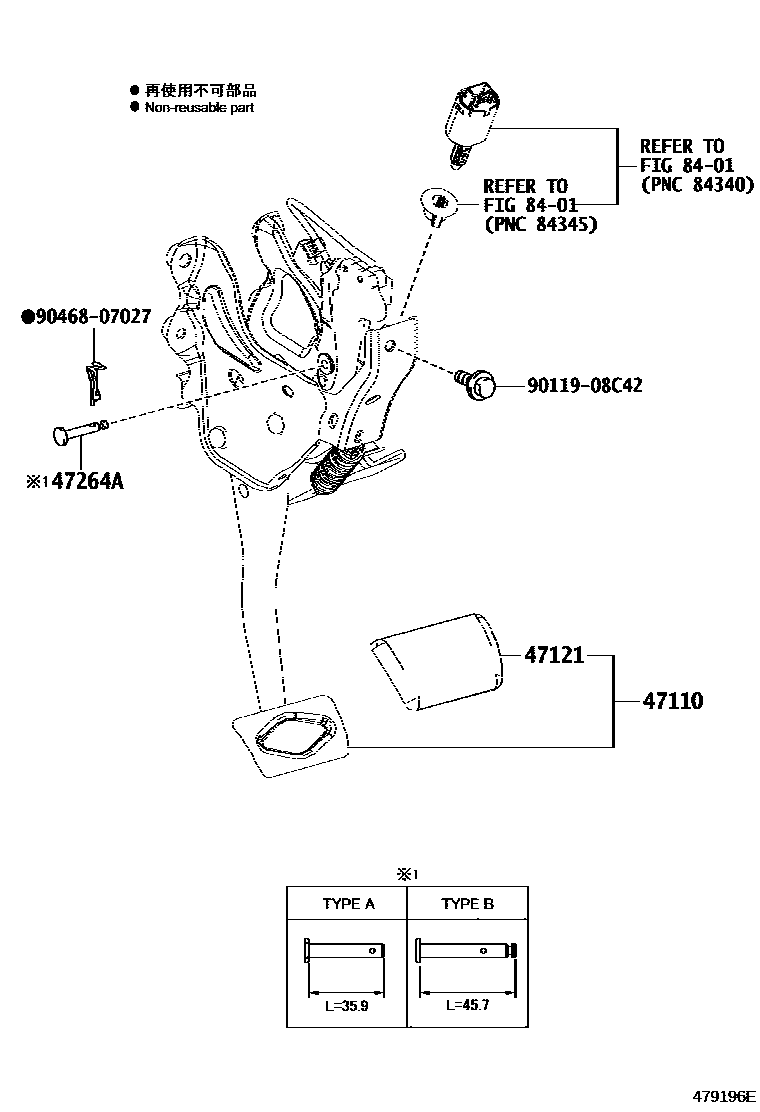

BRAKE PEDAL & BRACKET

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28110iZRR80201401-201612

main47110-28111iZRR80201701-201706

47121PAD, BRAKE PEDAL

main47121-42010iZRR80201401-201608

main47121-42020iZRR80201706

47264APIN(FOR PUSH ROD)

main90240-06028iZRR80201401-201706

TYPE A:REFER ILLUST.

main90249-06180iZRR80201401-201706

TYPE B:REFER ILLUST.

8401

9011908C42

main90119-08C42

9046807027

main90468-07027

6 parts on this diagram · 1 diagram in section
