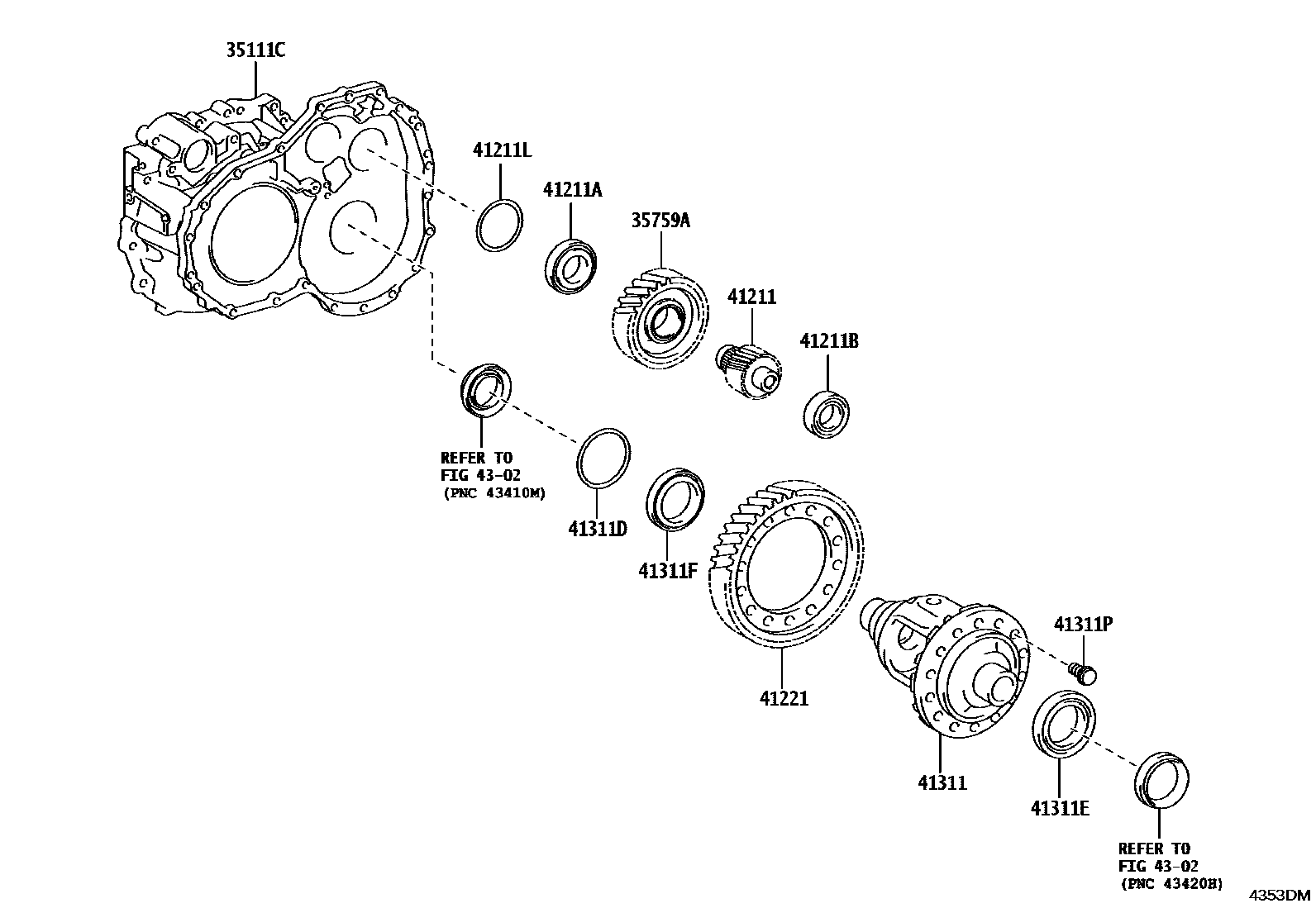

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
35759AGEAR, REDUCTION DRIVEN
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=1.275
T=1.300
T=1.325
T=1.350
T=1.375
T=1.400
T=1.425
T=1.450
T=1.475
T=1.500
T=1.525
T=1.550
T=1.575
T=1.600
T=1.625
T=1.650
T=1.675
T=1.700
T=1.725
T=1.750
T=1.775
T=1.800
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
T=1.950
T=1.975
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
41221GEAR, FRONT DIFFERENTIAL RING
41311CASE, FRONT DIFFERENTIAL
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.700
T=1.725
T=1.750
T=1.775
T=1.800
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
T=1.950
T=1.975
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311PBOLT (FOR FRONT DIFFERENTIAL CASE)
4302
13 parts on this diagram · 1 diagram in section
