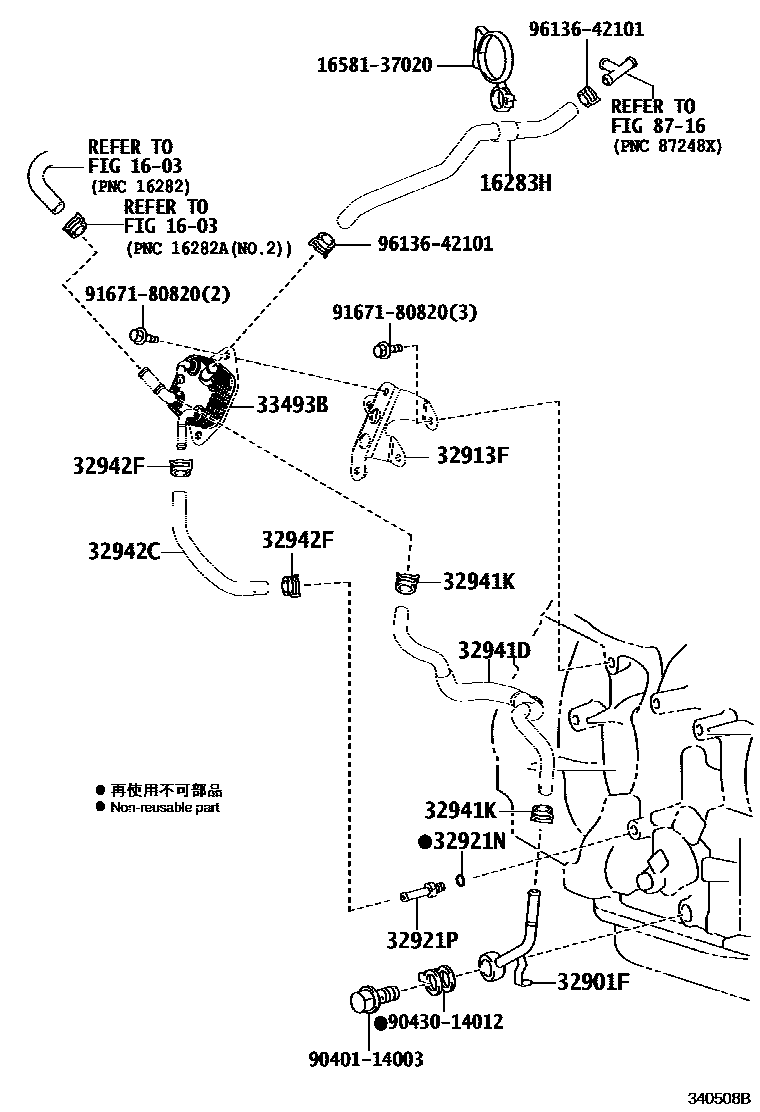

OIL COOLER & TUBE(CVT)

1603

16283HHOSE, WATER BY-PASS, NO.6

main16261-37130i3ZRFAE..ZRR80201401-201706

32901FELBOW SUB-ASSY, OIL COOLER

main32901-28010iZRR80201401-201706

32913FBRACKET, TRANSMISSION OIL COOLER

main32913-28060iZRR80201401-201706

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018iZRR80201401-201706

32921PUNION(FOR OIL COOLER TUBE)

main90404-13009iZRR80201401-201706

32941DHOSE, OIL COOLER INLET

main32943-28110iZRR80201401-201706

32941KCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iZRR80201401-201706

32942CHOSE, OIL COOLER OUTLET, NO.1

main90445-17100iZRR80201401-201706

32942FCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iZRR80201401-201706

33493BCOOLER, OIL

main33493-28050iZRR80201401-201706

8716

1658137020CLAMP, HOSE(FOR WATER HOSE)

main16581-37020

9040114003

main90401-14003

9043014012

main90430-14012

9167180820

main91671-80820

9613642101

main96136-42101

17 parts on this diagram · 1 diagram in section
