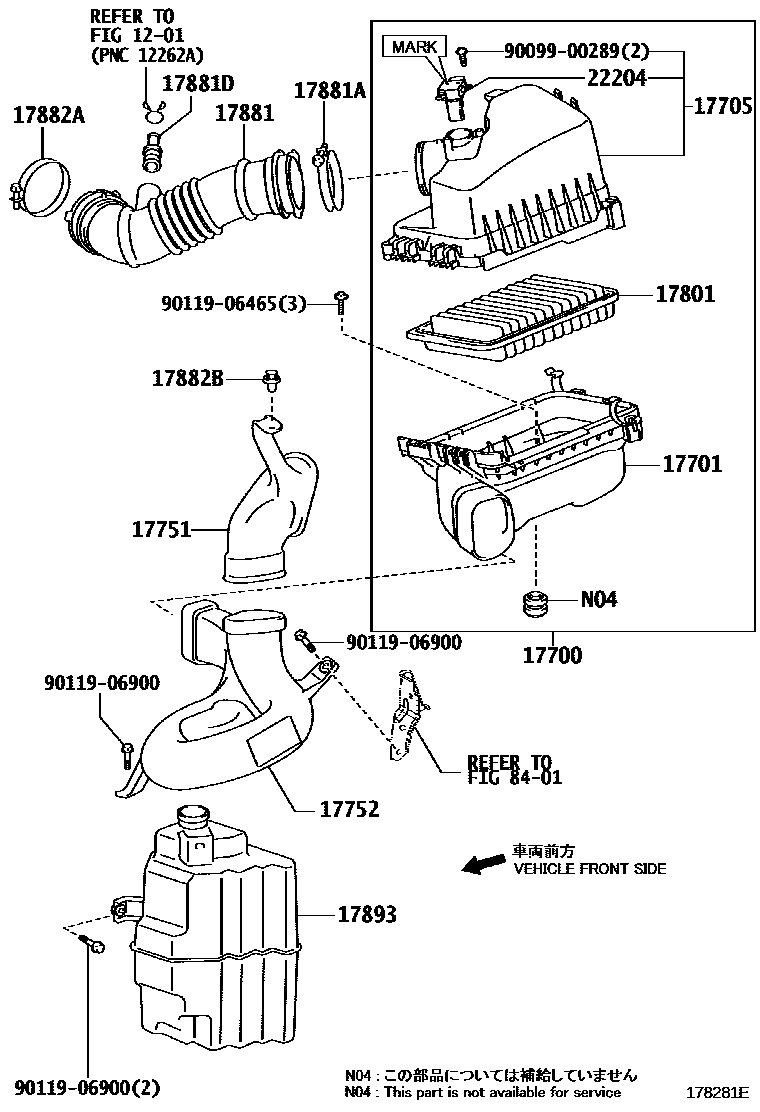

AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-37280i3ZRFAE..ZRR80201401-201706

17701CASE SUB-ASSY, AIR CLEANER

main17701-37210i3ZRFAE..ZRR80201401-201706

17705CAP SUB-ASSY, AIR CLEANER

main17705-37082i3ZRFAE..ZRR80201401-201706

17751INLET, AIR CLEANER, NO.1

main17751-37140i3ZRFAE..ZRR80201401-201706

17752INLET, AIR CLEANER, NO.2

main17752-37140i3ZRFAE..ZRR80201401-201706

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i3ZRFAE..ZRR80201706

17881HOSE, AIR CLEANER, NO.1

main17881-37300i3ZRFAE..ZRR80201706

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-75008i3ZRFAE..ZRR80201904

main96111-10750i3ZRFAE..ZRR80201401-201706

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main12229-21010i3ZRFAE..ZRR80201401-201706

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i3ZRFAE..ZRR80201401-201706

17882BCLAMP(FOR COOL AIR INTAKE)

main90467-07201i3ZRFAE..ZRR80201401-201703

main90467-07215i3ZRFAE..ZRR80201704-201706

17893RESONATOR, INTAKE AIR

main17893-37110i3ZRFAE..ZRR80201401-201706

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i3ZRFAE..ZRR80201401-201706

MARK 22204-0T040

main22204-0V010i3ZRFAE..ZRR80201706

MARK 22204-0V010

main22204-0V020i3ZRFAE..ZRR80201401-201706

MARK 22204-0V020

main22204-28010i3ZRFAE..ZRR80201401-201706

MARK 22204-28010

8401

9009900289

main90099-00289

9011906465

main90119-06465

9011906900

main90119-06900

18 parts on this diagram · 1 diagram in section
