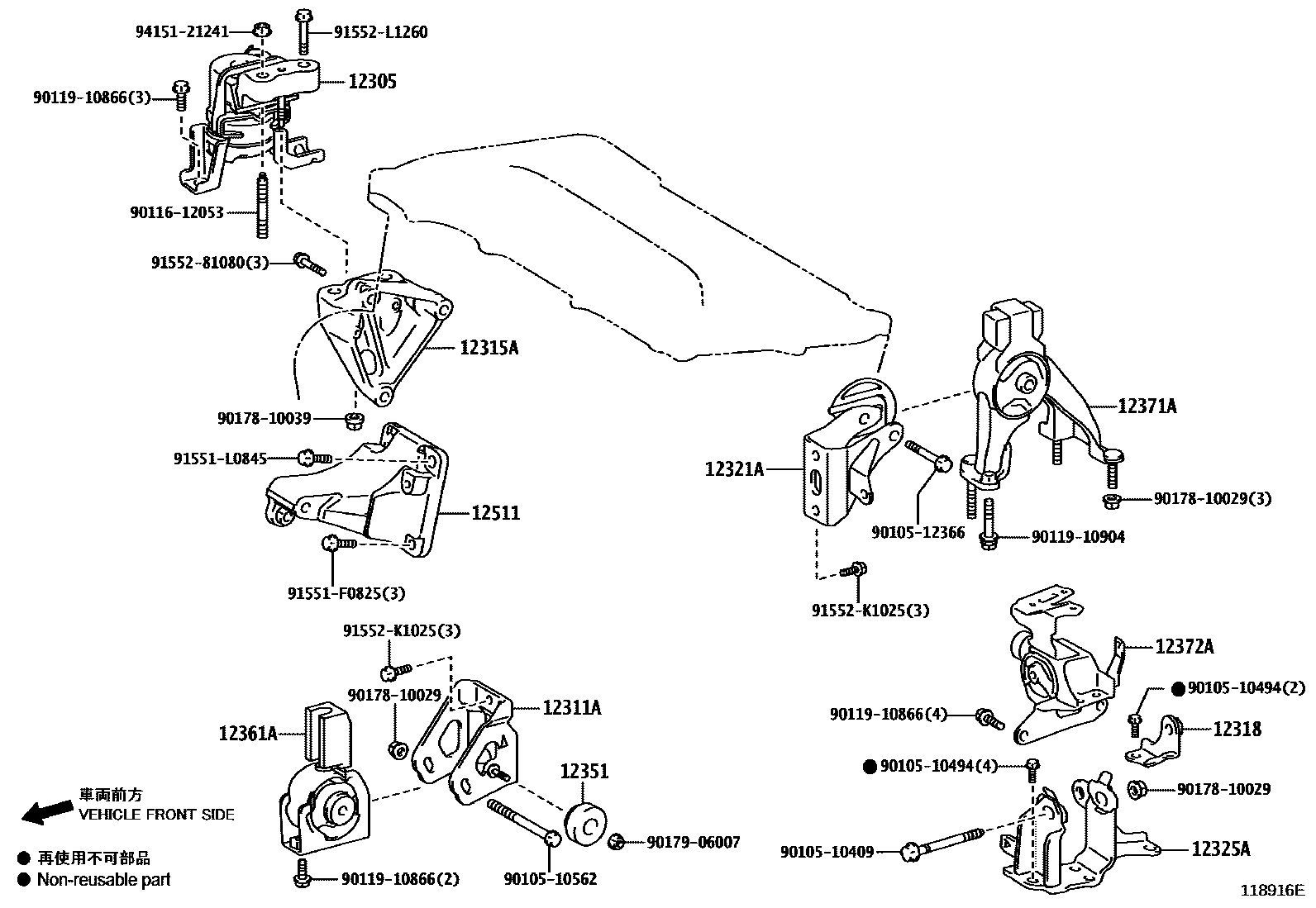

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-37050i3ZRFAE..ZRR80201401-201706

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-37210i3ZRFAE..ZRR80201401-201706

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37030i3ZRFAE..ZRR80201401-201706

main12315-37100i3ZRFAE..ZRR80201801

12318STAY, ENGINE MOUNTING, LH

main12318-37020i3ZRFAE..ZRR80201401-201706

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-37220i3ZRFAE..ZRR80201401-201706

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-37210i3ZRFAE..ZRR80201401-201706

12351DAMPER, ENGINE MOUNTING

main12351-28010i3ZRFAE..ZRR80201401-201706

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-37140i3ZRFAE..ZRR80201401-201706

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-37290i3ZRFAE..ZRR80201401-201706

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-37280i3ZRFAE..ZRR80201401-201706

12511BRACKET, ALTERNATOR, NO.1

main12501-37010i3ZRFAE..ZRR80201401-201706

9010510409

main90105-10409

9010510494

main90105-10494

9010510562

main90105-10562

9010512366

main90105-12366

9011612053

main90116-12053

9011910866

main90119-10866

9011910904

main90119-10904

9017810029

main90178-10029

9017810039

main90178-10039

9017906007

main90179-06007

91551F0825

main91551-F0825

91551L0845

main91551-L0845

9155281080

main91552-81080

91552K1025

main91552-K1025

91552L1260

main91552-L1260

9415121241

main94151-21241

27 parts on this diagram · 1 diagram in section
