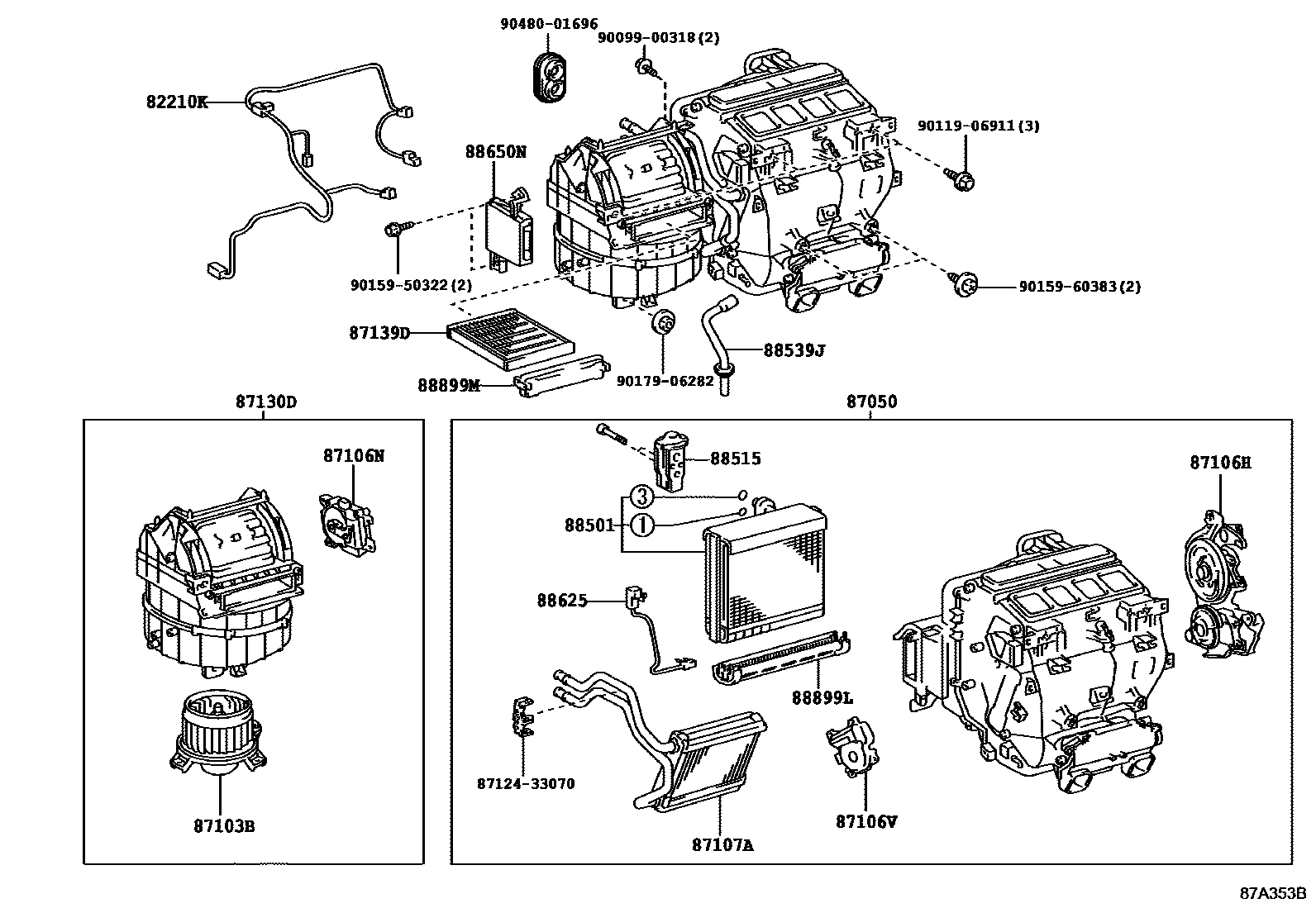

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28030iZRR70200808-201612

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28622iZRR70200808-201004

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33100iZRR70200808-201401

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-28191iZRR70200808-201401

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-33280iZRR70200808-201401

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-33260iZRR70200808-201401

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iZRR70200808-201004

87130DBLOWER ASSY

main87130-28540iZRR70200808-201401

87139DELEMENT, AIR REFINER

main87139-30040iZRR70..GEN201004-201401

POLLEN FILTER

main87139-30040iZRR70200808-201003

main87139-50060iZRR70201004-201204

DEODORANT FILTER

main87139-50100iZRR70..IDN201205-201401

*DPF

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28400iZRR70200808-200904

main88501-48310iZRR70200904-201007

main88501-48311iZRR70201007

88515VALVE, COOLER EXPANSION

main88515-28240iZRR70201405

main88515-33020iZRR70200808-201404

88539JHOSE, DRAIN COOLER

main88539-28330iZRR70200808-201401

88625THERMISTOR, COOLER, NO.1

main88625-33190iZRR70200808-201004

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-28B20iZRR70200808-201004

main88650-28B21iZRR70..GEN201004-201401

88899LPARTS, COOLING UNIT

main88899-33050iZRR70201004

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33040iZRR70200808-201401

8712433070CLAMP, HEATER

main87124-33070

9009900318

main90099-00318

9011906911

main90119-06911

9015950322

main90159-50322

9015960383

main90159-60383

9017906282

main90179-06282

9048001696

main90480-01696
