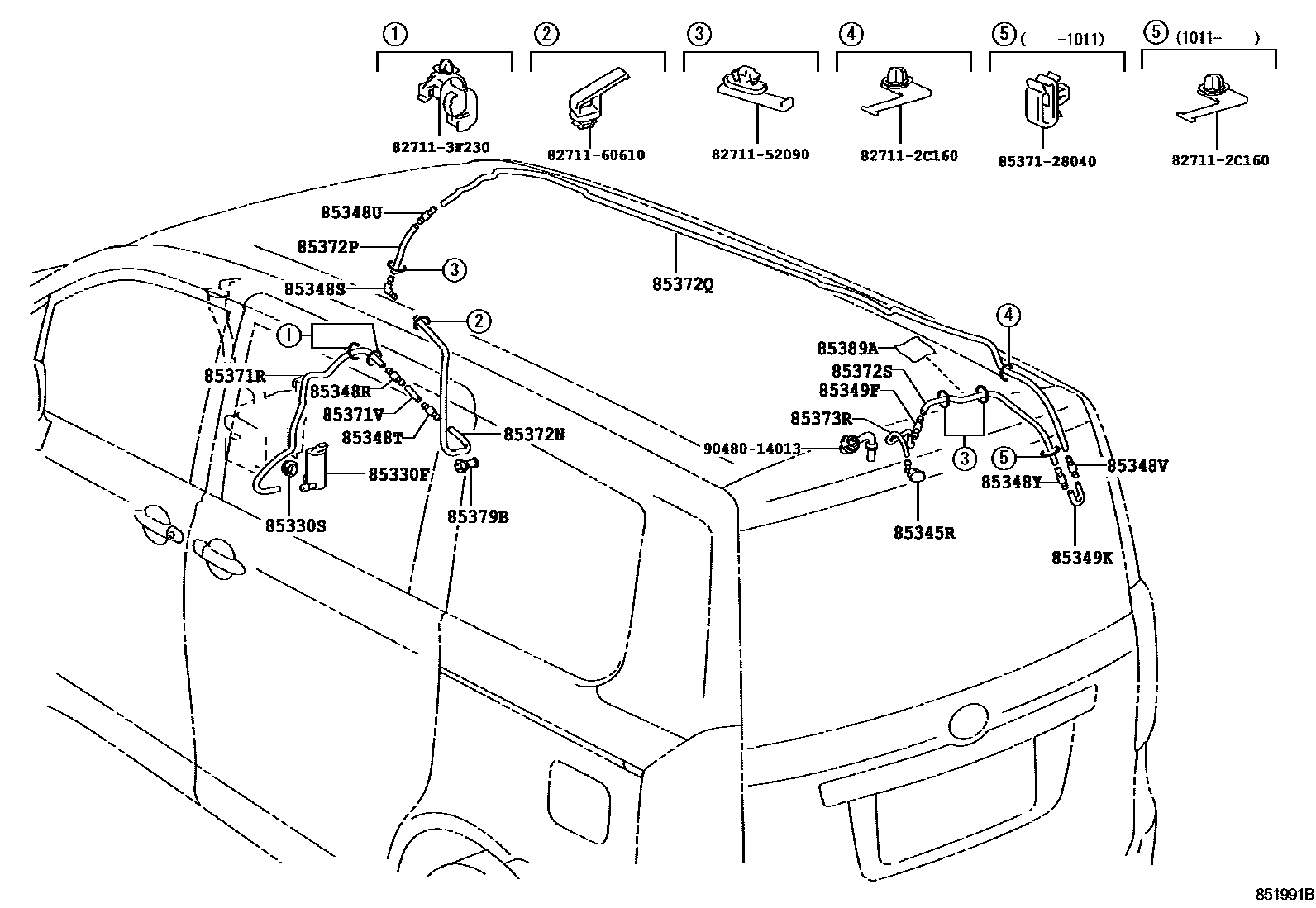

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1000
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=1000(*H,L=30)
L=1000(*H,L=30),HONG KONG SPEC
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=590)
L=1800(*H,L=590),HONG KONG SPEC
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=140)
L=1450(*H,L=140),HONG KONG SPEC
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=3490
L=4985(*H,L=3540)
L=3500
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1800(*H,L=520)
L=1800(*H,L=580)
L=1800(*H,L=535)
L=1800(*H,L=600)
L=1800(*H,L=580),HONG KONG SPEC
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=290)
L=1450(*H,L=290),HONG KONG SPEC
85379BGROMMET, WASHER, A
85389APACKING, WINDSHIELD WASHER HOSE, NO.2
827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C160
827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F230
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60610
8537128040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-28040
9048014013
main90480-14013
26 parts on this diagram · 2 diagrams in section
