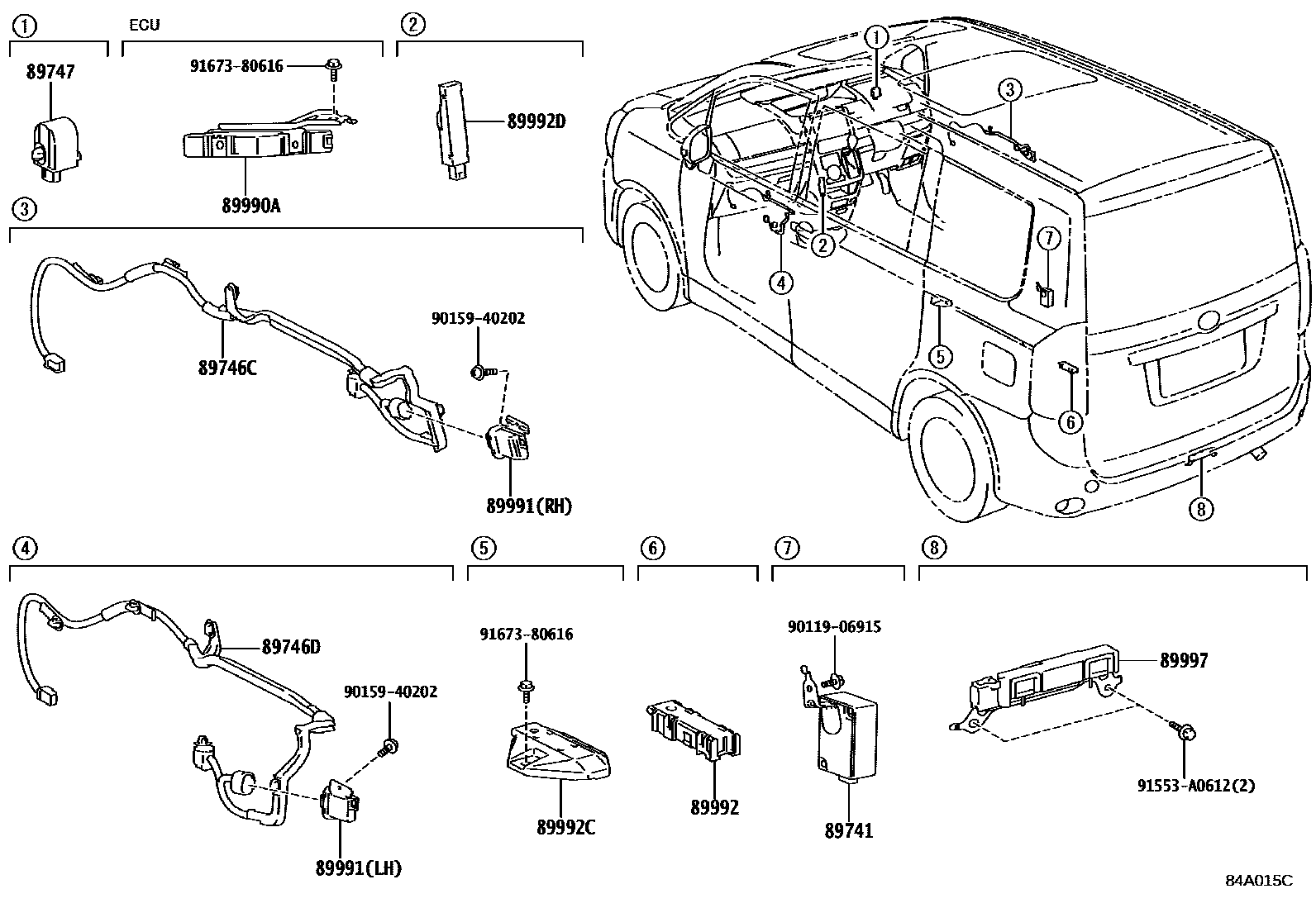

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-28070iZRR70..GEN201004-201401

main89740-28130supersedes 89741-28321iZRR70..IDN201212-201607

INDONESIA DX

main89740-28131supersedes 89741-28321iZRR70201608-201612

INDONESIA DX

main89741-28320supersedes 89741-28321iZRR70..IDN201212-201511

INDONESIA DX

main89741-28321iZRR70201511-201612

INDONESIA DX

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-28080iZRR70200808-201004

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-28090iZRR70200808-201004

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iZRR70200808-201004

89990ACOMPUTER ASSY, SMART KEY

main89990-28150iZRR70201004-201110

main89990-28151iZRR70201111-201211

main89990-28152iZRR70..GEN201212-201401

main89990-28153iZRR70201605

INDONESIA DX

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-28020iZRR70200808-201004

RH

main89991-28030iZRR70200808-201004

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-28010iZRR70..GEN201004-201401

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-28051iZRR70200808-201004

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

main89992-52020iZRR70200808-201004

89997ANTENNA, ELECTRICAL KEY

main89997-28020iZRR70200808-201004

9011906915

main90119-06915

9015940202

main90159-40202

91553A0612

main91553-A0612

9167380616

main91673-80616

14 parts on this diagram · 1 diagram in section
