SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & BACK DOOR

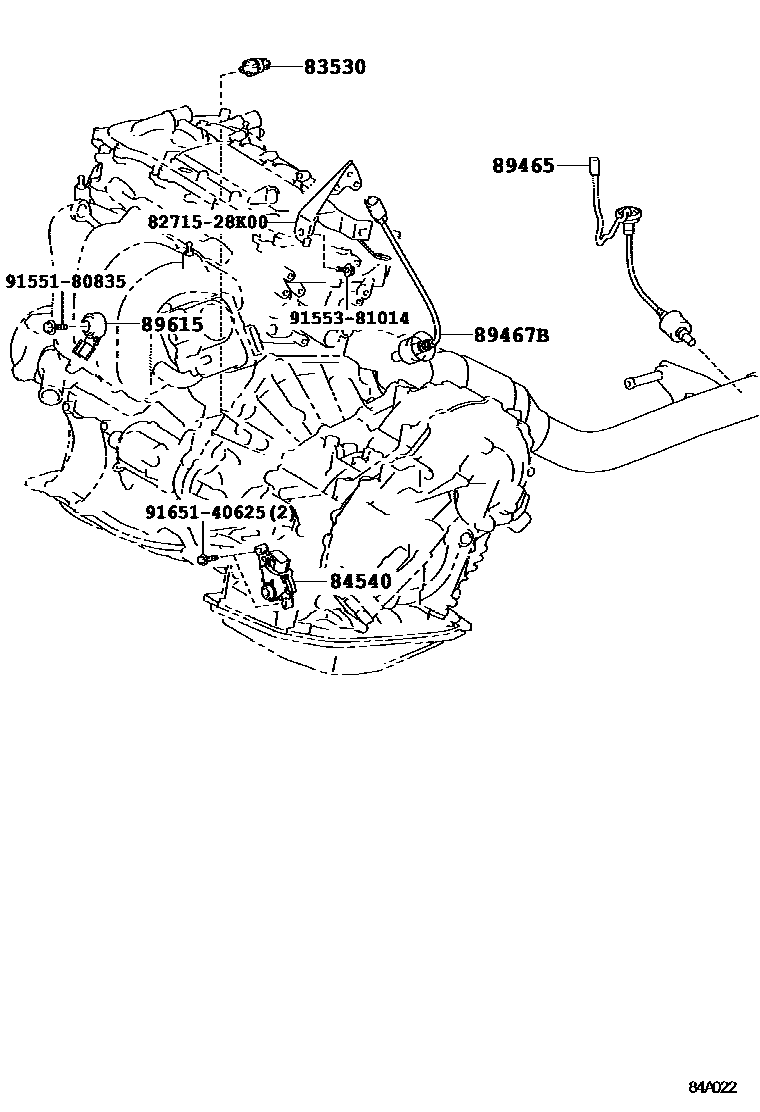

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRR70201310-201402

sub83530-12060

main83530-60020iZRR70200808-201310

84540SWITCH ASSY, NEUTRAL START

main84540-52070iZRR70200808-201612

89465SENSOR, OXYGEN

main89465-28450iZRR70200808-201612

89467BSENSOR, AIR FUEL RATIO

main89467-12030iZRR70200808-201401

89615SENSOR, KNOCK CONTROL

main89615-20090iZRR70200808-201401

8271528K00BRACKET,WIRING HARNESS CLAMP

main82715-28K00

9155180835

main91551-80835

9155381014

main91553-81014

9165140625

main91651-40625

9 parts on this diagram · 7 diagrams in section
