WIRING & CLAMP

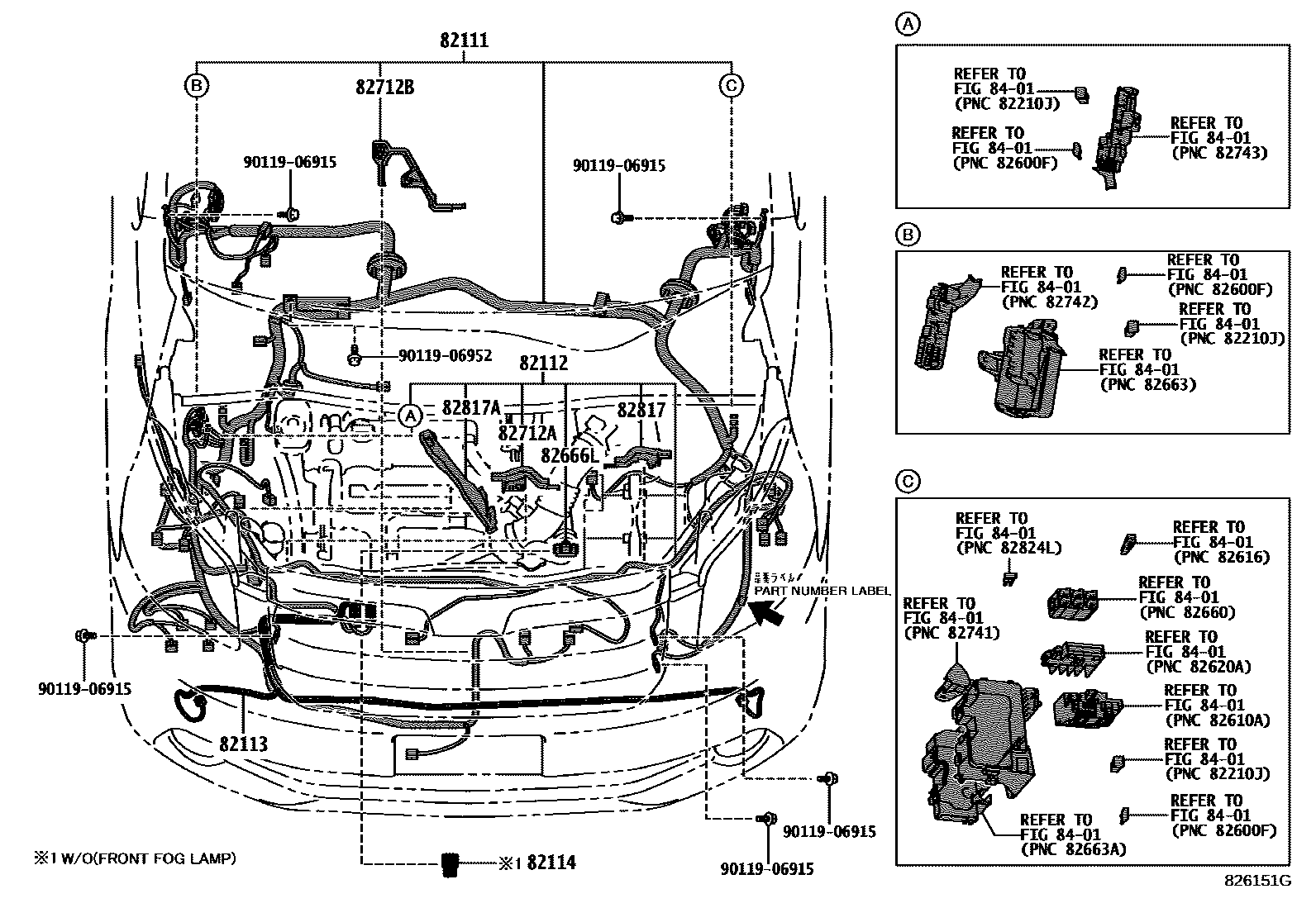

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-28A50i200808-201004

main82111-28Q00i201004-201401

main82111-F3020i201212

INDONESIA DX&WIRELESS DOOR LOCK-SMART ENTRY(DRIVER&PASSENGER&BACK DOOR)

82112WIRE, ENGINE ROOM, NO.2

main82112-28400i200808-201004

main82112-28440i201004-201401

main82112-28460i201004-201401

main82112-F3010i201212-201309

main82112-F3011i201309

82113WIRE, ENGINE ROOM, NO.3

main82113-28210i200808-201004

main82113-28360i201004-201401

main82113-28370i201004-201401

main82113-F3010i201212

INDONESIA DX

82114WIRE, ENGINE ROOM, NO.4

main82114-28230i200808-201004

main82114-F3010i201212

INDONESIA DX

82666LHOLDER, CONNECTOR NO.9

main82666-28750i200808-201004

82712ASUPPORT, WIRING HARNESS

main82712-28540i200808-201004

82712BSUPPORT, WIRING HARNESS

main82712-28200i200808-201004

82817PROTECTOR, WIRING HARNESS, NO.1

main82712-28550i200808-201004

82817APROTECTOR, WIRING HARNESS, NO.2

main82712-28570i200808-201004

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906952

main90119-06952

12 parts on this diagram · 9 diagrams in section
