CAUTION PLATE
74511FLABEL, NAME (IDENTIFICATION LASER LABEL)
*111
74528ELABEL, POWER SLIDE DOOR NOTICE
74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
74529DPLATE, CHILD PROTECTOR LOCK CAUTION
74541EPLATE, COMPACT SPARE TIRE CAUTION
74541HPLATE, BODY CAUTION
QUARTER PILLAR
QUARTER PILLAR
CENTER PILLAR
CENTER PILLAR
74598CLABEL, PASSENGER AIRBAG CAUTION
74751LABEL, TIRE PRESSURE INFORMATION
87529BLABEL, A/C FILTER INFORMATION
88723ELABEL, COOLER SERVICE CAUTION
88723HLABEL, COOLER SERVICE CAUTION
89616LABEL, PUSH START INFORMATION

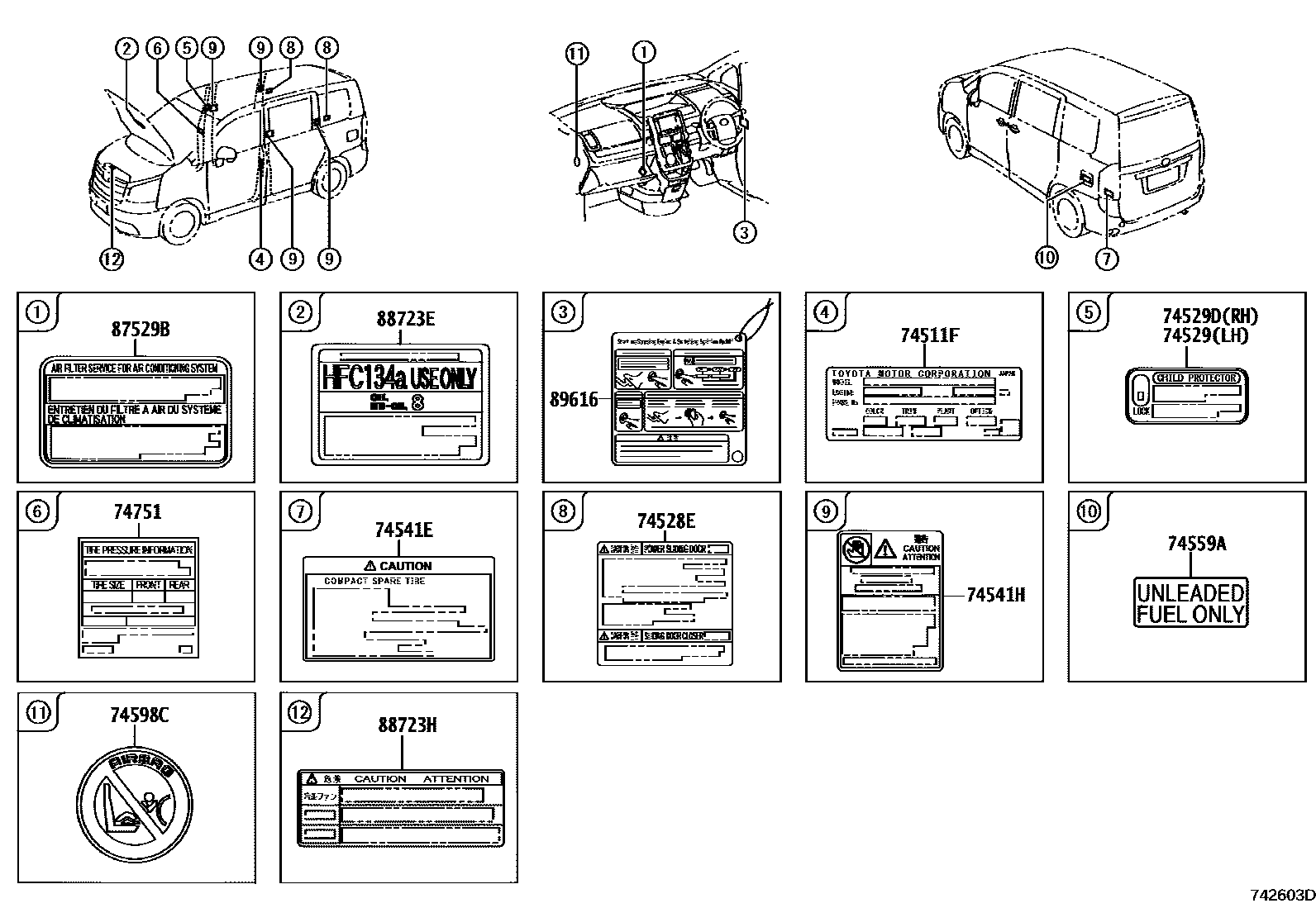

13 parts on this diagram · 3 diagrams in section
