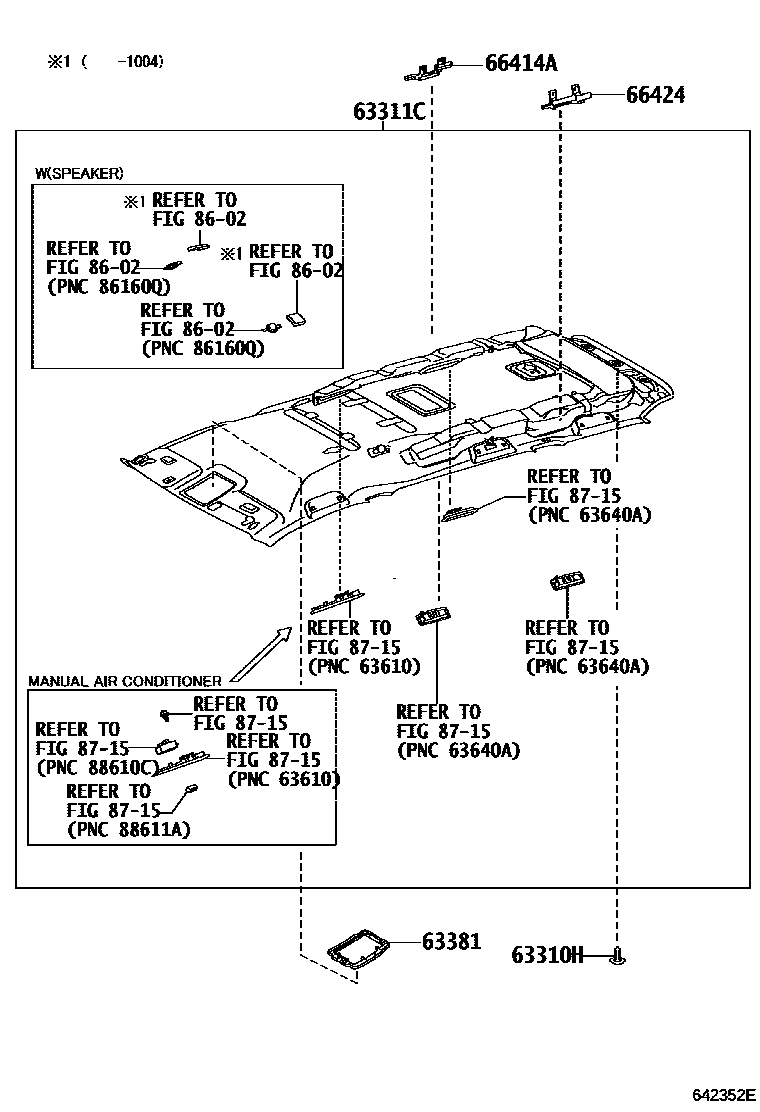

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(TWIN MOON ROOF)

63310HCLIP(FOR ROOF HEADLINING)

main90467-05021-E9×3iZRR70200808-201004

GREGE,TRIM4#

main90467-05021-P4×2iZRR70..IDN201212-201612

LT.GRAY,TRIM2#

63311CHEADLINING, ROOF

main63310-28X70-E0iZRR70..S201004-201401

GREGE,TRIM4#

main63310-28Y00-B0iZRR70..IDN201212-201612

LT.GRAY,TRIM2#

main63310-28Y00-E0iZRR70..IDN201212-201401

GREGE,TRIM4#

main63310-28Y80-E1iZRR70..E..GEN201004-201401

GREGE,TRIM4#

main62309-28240-E0supersedes 62309-28220-E0iZRR70200808-201004

HONG KONG SPEC&WITH(TWIN MOON ROOF),GREGE,TRIM4#

63381RETAINER, HEADLINING, FRONT

main63381-28080iZRR70200808-201004

main63381-28090iZRR70..GEN201004-201401

66414ASPACER, SIDE RAIL, REAR RH

main66414-28040iZRR70200808-201004

66424SPACER, SIDE RAIL, REAR LH

main66424-28040iZRR70200808-201004

8602SPEAKER

→ Go to FIG 86-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

7 parts on this diagram · 2 diagrams in section
