Toyota 751230 — REAR BUMPER & BUMPER STAY

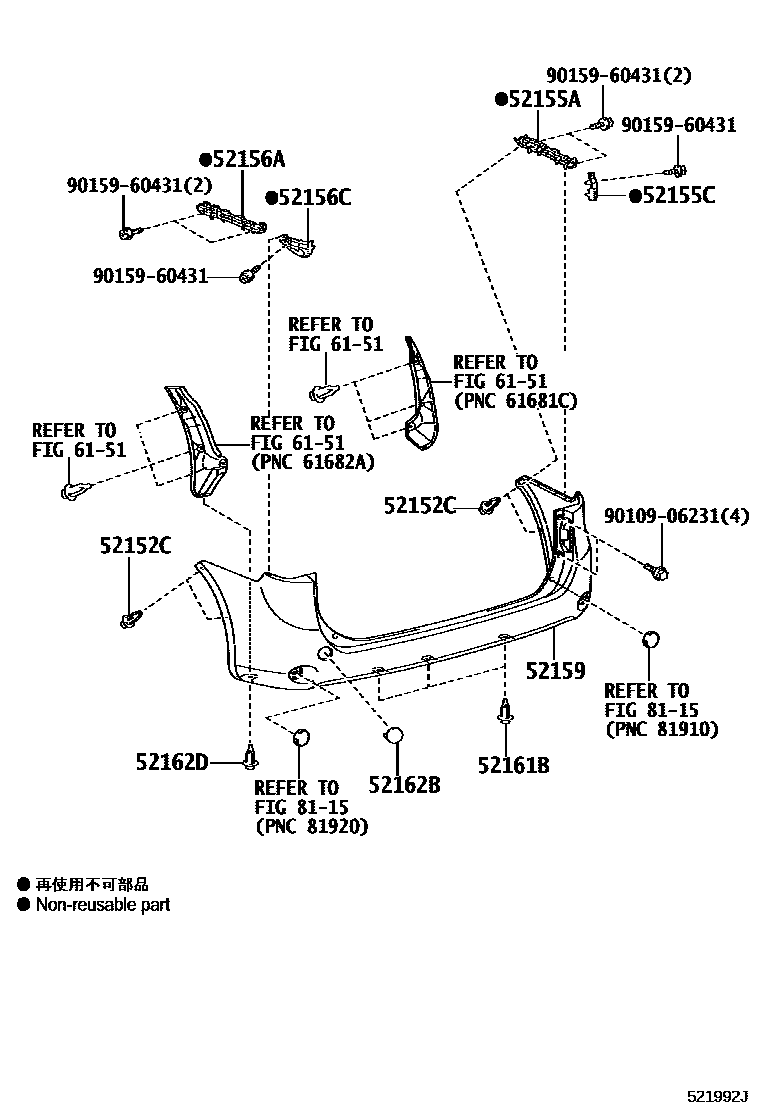

Parts diagram
52152CCLIP, REAR BUMPER SIDE
52155ASUPPORT, REAR BUMPER SIDE, RH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52159COVER, REAR BUMPER
52159-28937
52159-28943
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52162DPIECE, REAR BUMPER
6151SIDE MEMBER
→ Go to FIG 61-51
8115REFLEX REFLECTOR
→ Go to FIG 81-15
9010906231
90109-06231
9015960431
90159-60431

13 parts on this diagram · 2 diagrams in section

REAR BUMPER & BUMPER STAY for Toyota 751230

This section contains 13 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota 751230. Key components include: CLIP, REAR BUMPER SIDE, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, NO.1 RH, SUPPORT, REAR BUMPER SIDE, LH, SUPPORT, REAR BUMPER SIDE, NO.1 LH.
