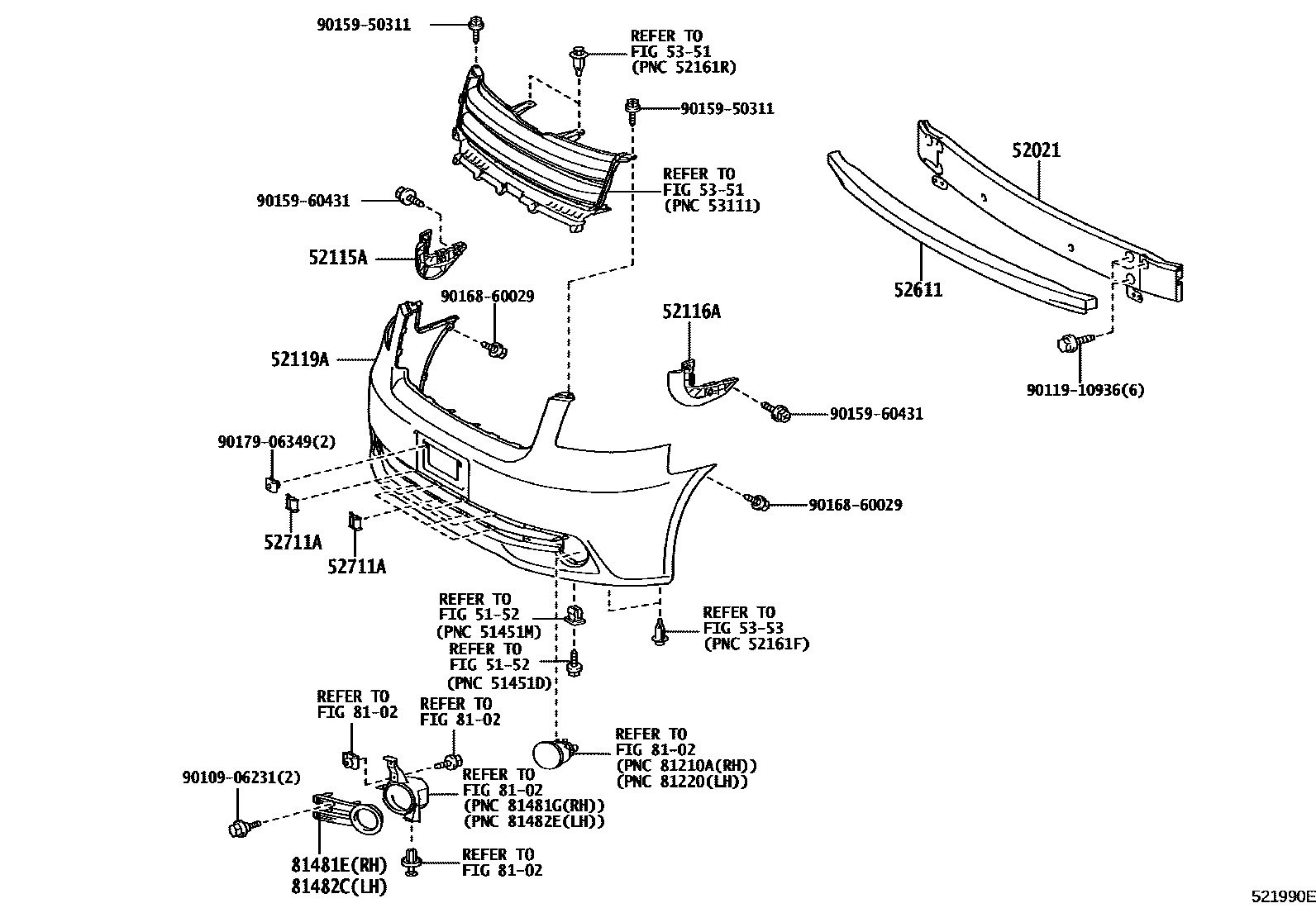

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-28240iZRR70200808-201004

main52021-28250iZRR70..GEN201004-201401

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-28130iZRR70200808-201004

main52115-28180iZRR70..E201004

main52115-28200iZRR70..S201004-201401

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-28130iZRR70200808-201004

main52116-28180iZRR70..E..GEN201004-201401

main52116-28200iZRR70..S201004-201401

52119ACOVER, FRONT BUMPER

main52119-28974iZRR70200808-201004

PAINT REQ.

main52119-28999iZRR70..S201004-201401

PAINT REQ.

main52119-2J924iZRR70..E201004-201612

PAINT REQ.

52611ABSORBER, FRONT BUMPER ENERGY

main52611-28090iZRR70200808-201004

main52611-28100iZRR70201004-201106

MARK 52611-28100

main52611-28101iZRR70201106-201612

MARK 52611-28101

52711AGARNISH, FRONT BUMPER

main52711-28130×8iZRR70200808-201004

5351RADIATOR GRILLE

→ Go to FIG 53-51

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

8102FOG LAMP

→ Go to FIG 81-02

81481ECOVER, FOG LAMP, RH

main52127-28290iZRR70200808-201004

main52127-28360iZRR70..S201004-201401

81482CCOVER, FOG LAMP, LH

main52128-28140iZRR70..S201004-201401

main52128-28290iZRR70200808-201004

9010906231

main90109-06231

9011910936

main90119-10936

9015950311

main90159-50311

9015960431

main90159-60431

9016860029

main90168-60029

9017906349

main90179-06349

18 parts on this diagram · 3 diagrams in section
