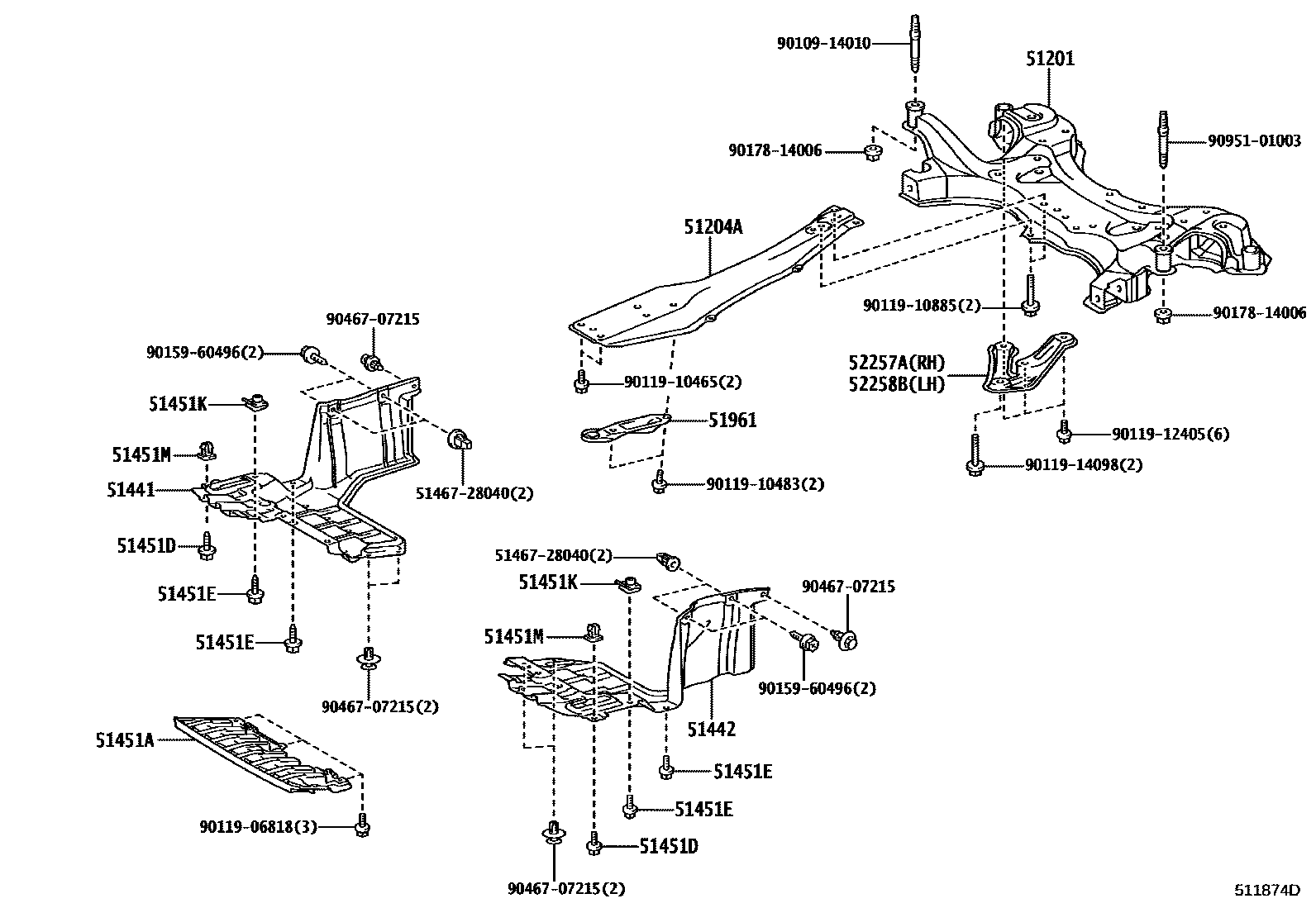

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28230iZRR70200808-201004

main51201-28231iZRR70..GEN201310-201401

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-44010iZRR70200808-201004

51441COVER, ENGINE UNDER, NO.1

main51441-28170iZRR70200808-201004

51442COVER, ENGINE UNDER, NO.2

main51442-28150iZRR70200808-201004

51451ACOVER, ENGINE UNDER, CENTER

main52618-28020iZRR70200808-201004

51451DSCREW, NO.1

main90159-60496×2iZRR70200808-201004

51451ESCREW, NO.2

main90159-60383×4iZRR70200808-201004

51451KGROMMET, SCREW, NO.1

main90189-06131×2iZRR70200808-201004

51451MGROMMET, SCREW, NO.2

main90189-06193×2iZRR70200808-201004

51961HOOK, NO.1

main51963-32040iZRR70200808-201004

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-28030iZRR70200808-201004

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-28030iZRR70200808-201004

5146728040RETAINER, ENGINE UNDER COVER

main51467-28040

9010914010

main90109-14010

9011906818

main90119-06818

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011912405

main90119-12405

9011914098

main90119-14098

9015960496

main90159-60496

9017814006

main90178-14006

9046707215

main90467-07215

9095101003

main90951-01003

24 parts on this diagram · 1 diagram in section
