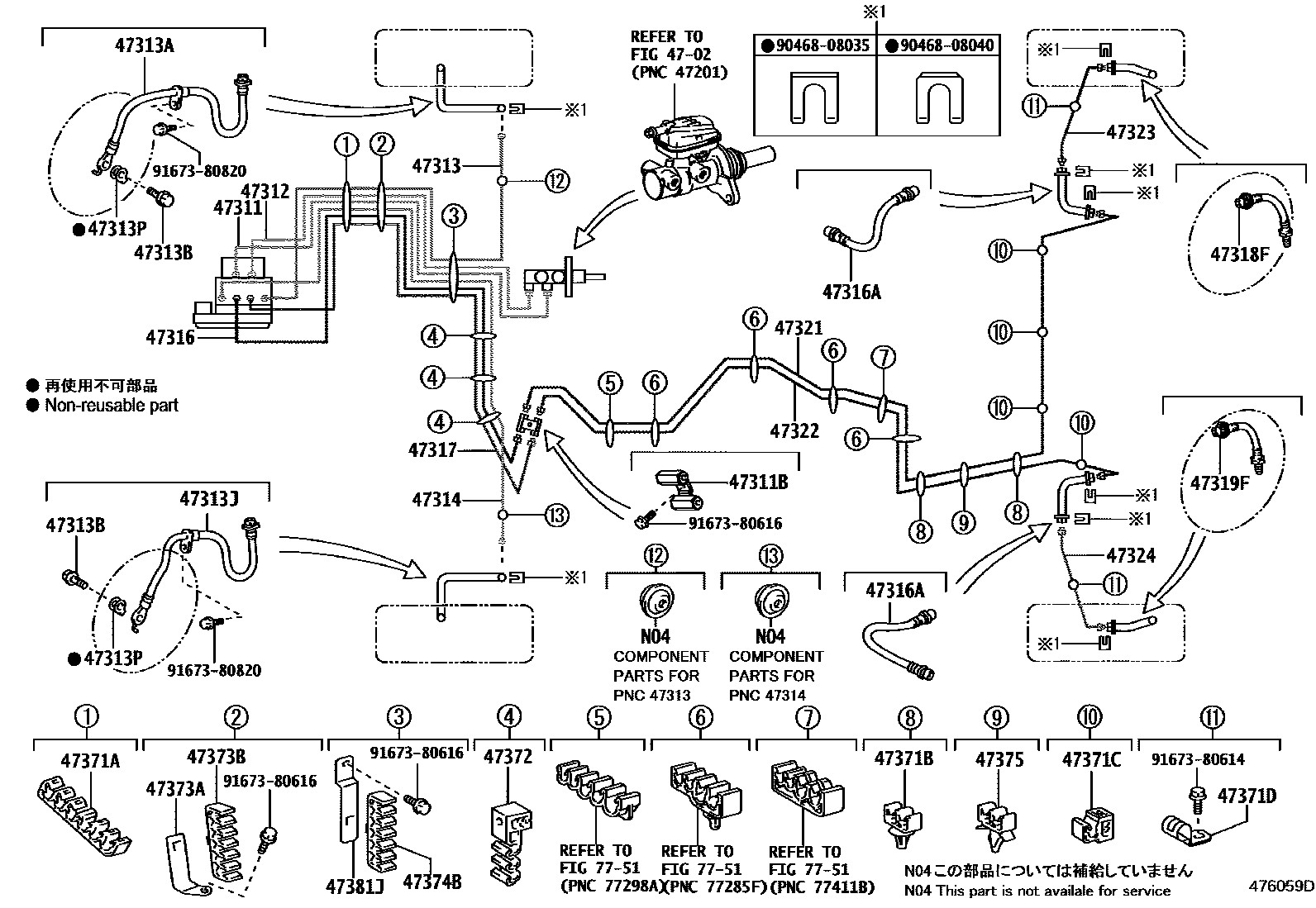

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-28730iZRR70..IDN201212

main47311-28740iZRR70..GEN201004-201401

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iZRR70..GEN201004-201401

47312TUBE, FRONT BRAKE, NO.2

main47312-28530iZRR70..IDN201212

main47312-28540iZRR70200808-201004

47313TUBE, FRONT BRAKE, NO.3

main47313-28480iZRR70..IDN201212

main47313-28490iZRR70200808-201004

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E82iZRR70..IDN201004

main90947-02F38iZRR70..S201004-201401

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZRR70..IDN201004

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E83iZRR70..IDN201004

main90947-02F39iZRR70..S201004-201401

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZRR70..GEN201004-201401

47314TUBE, FRONT BRAKE, NO.4

main47314-28400iZRR70..IDN201212

main47314-28410iZRR70..GEN201004-201401

47316TUBE, FRONT BRAKE, NO.6

main47316-28240iZRR70..IDN201212

main47316-28250iZRR70200808-201004

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02E81×2iZRR70..GEN201004-201401

47317TUBE, FRONT BRAKE, NO.7

main47317-28280iZRR70..IDN201212

main47317-28290iZRR70..GEN201004-201401

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02B95iZRR70200808-201004

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02B95iZRR70200808-201004

47321TUBE, REAR BRAKE, NO.1

main47321-28550iZRR70200808-201004

main47321-28570iZRR70201004-201612

47322TUBE, REAR BRAKE, NO.2

main47322-28360iZRR70200808-201004

47323TUBE, REAR BRAKE, NO.3

main47323-28370iZRR70..IDN201212

main47323-28380iZRR70200808-201004

47324TUBE, REAR BRAKE, NO.4

main47324-28270iZRR70..IDN201212

main47324-28280iZRR70..GEN201004-201401

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00890iZRR70..GEN201004-201401

47371BCLAMP, BRAKE TUBE, NO.6

main90469-07020×2iZRR70200808-201004

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01C82×4iZRR70200808-201004

47371DCLAMP, BRAKE TUBE, NO.8

main90461-08694×2iZRR70200808-201004

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D02×3iZRR70200808-201004

47373ABRACKET, TUBE CLAMP

main90949-01C65iZRR70200808-201004

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00902iZRR70200808-201004

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00902iZRR70200808-201004

47375CLAMP, BRAKE TUBE, NO.5

main90469-07019iZRR70200808-201004

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-02008iZRR70200808-201004

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046808035

main90468-08035

9046808040

main90468-08040

9167380614

main91673-80614

9167380616

main91673-80616

9167380820

main91673-80820

35 parts on this diagram · 4 diagrams in section
