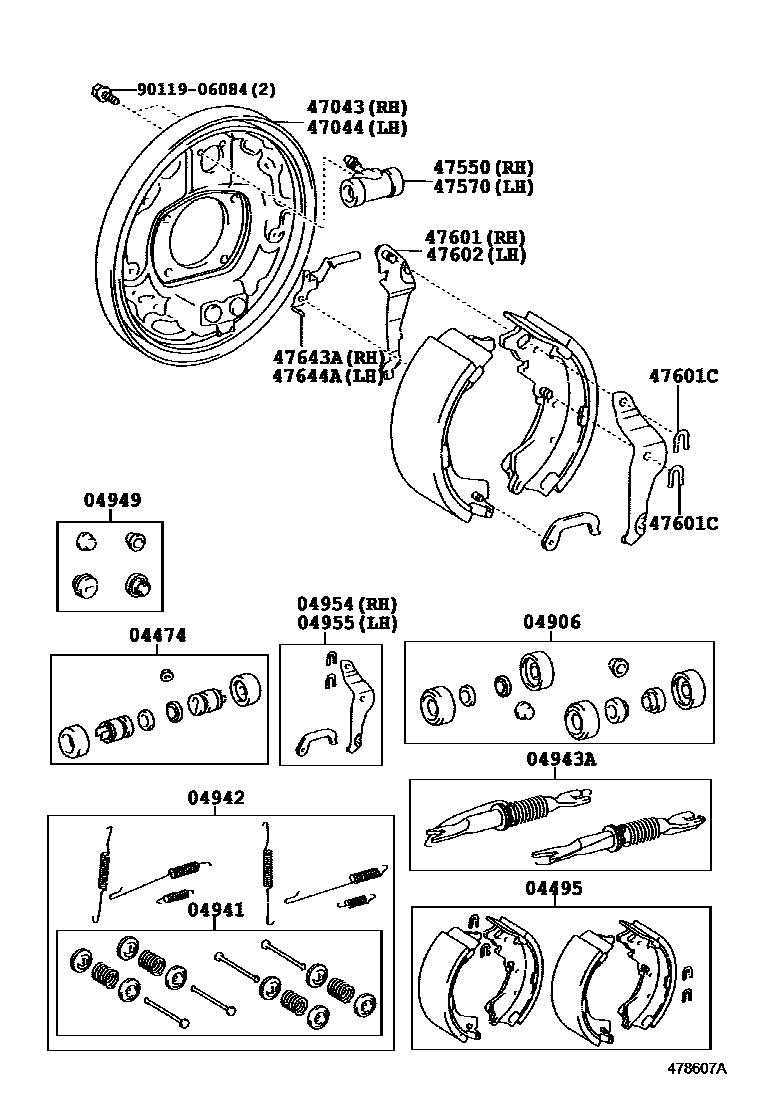

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-12050iZRR70..IDN201212

04495SHOE KIT, REAR BRAKE

main04495-28151iZRR70..IDN201212

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-33030iZRR70..IDN201212

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iZRR70..IDN201212

04942SPRING KIT, REAR BRAKE

main04942-28020iZRR70..IDN201212

04943ASTRUT KIT, REAR BRAKE

main04943-28010iZRR70..IDN201212

04949PLUG KIT, REAR BRAKE

main04949-28010iZRR70..IDN201212

04954REACTION PLATE KIT, REAR BRAKE, RH

main04954-28010iZRR70..IDN201212

04955REACTION PLATE KIT, REAR BRAKE, LH

main04955-28010iZRR70..IDN201212

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28151iZRR70..IDN201212

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28151iZRR70..IDN201212

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12120iZRR70..IDN201212

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12120iZRR70..IDN201212

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28020iZRR70..IDN201212

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iZRR70..IDN201212

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28020iZRR70..IDN201212

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010iZRR70..IDN201212

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010iZRR70..IDN201212

9011906084

main90119-06084

19 parts on this diagram · 1 diagram in section
