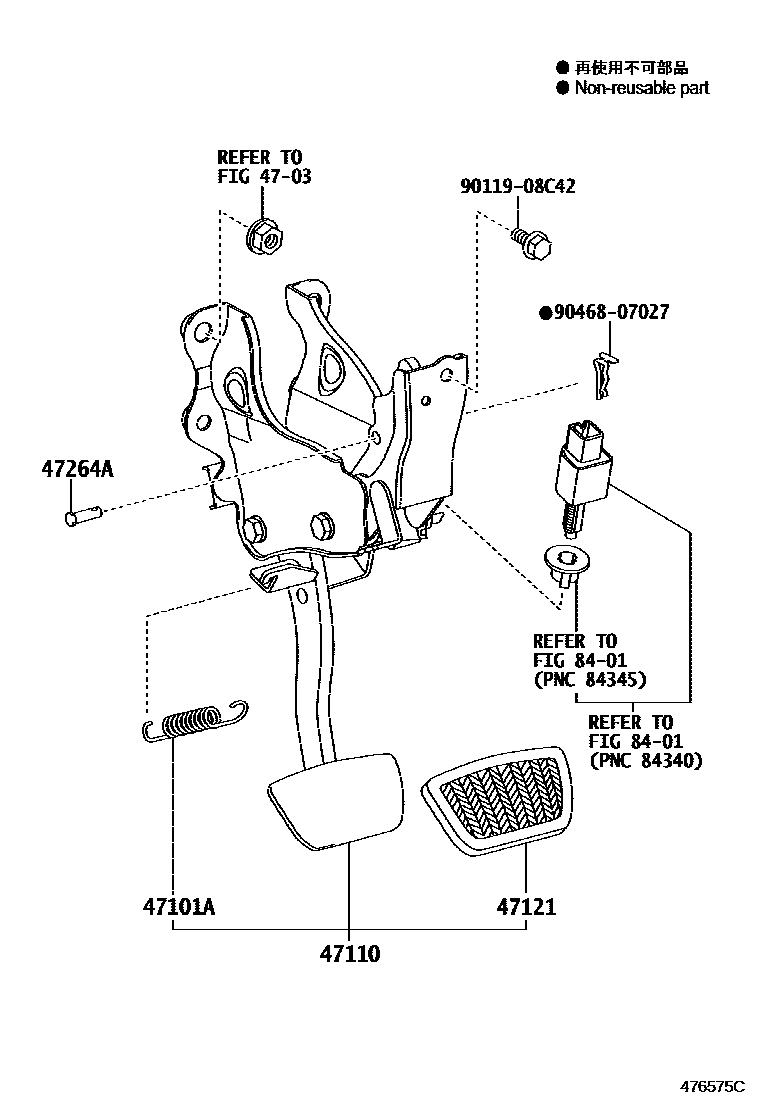

BRAKE PEDAL & BRACKET

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-28020iZRR70200808-201004

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28210iZRR70200808-201001

main47110-28211iZRR70201002-201004

47121PAD, BRAKE PEDAL

main47121-42010iZRR70200808-201004

main47121-42020iZRR70201609

47264APIN(FOR PUSH ROD)

main90240-08078iZRR70200808-201004

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046807027

main90468-07027

8 parts on this diagram · 1 diagram in section
