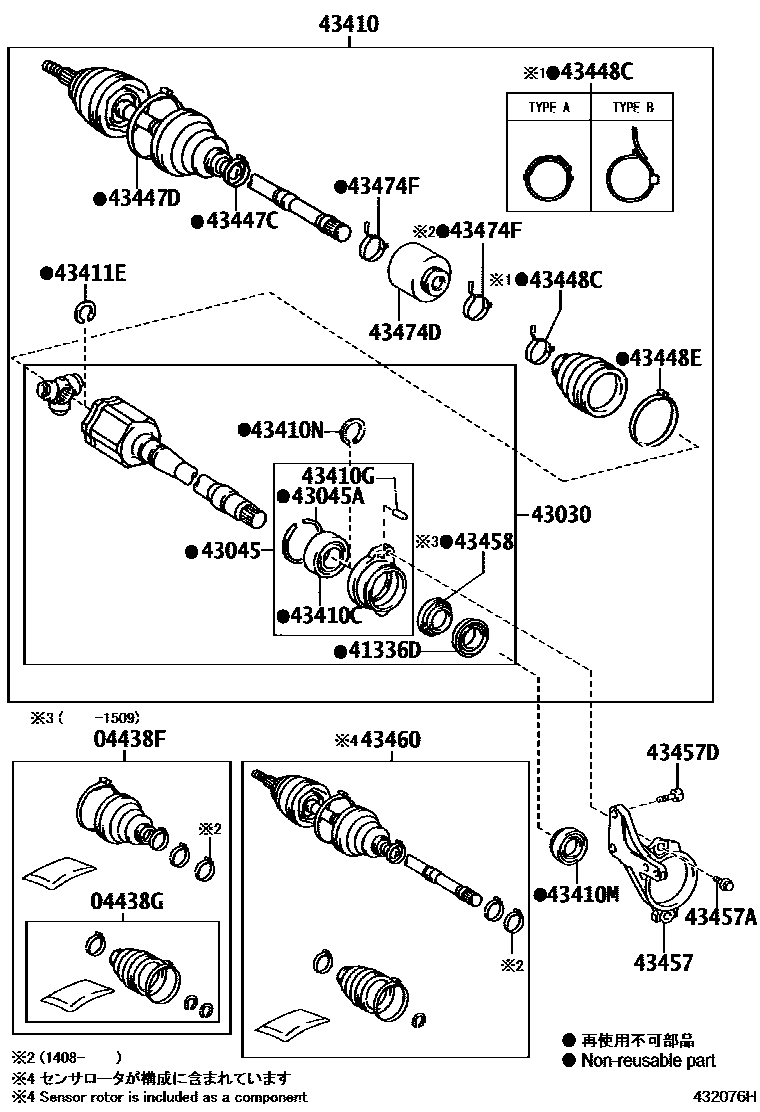

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-28190iZRR70..E201004-201411

main04427-28191iZRR70201411

sub04427-28193

main04428-58030iZRR70200808-200809

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-42180iZRR70201004

main04438-58020iZRR70200808-201004

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZRR70..GEN201004-201401

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28011iZRR70..IDN201004

main43030-44021iZRR70..S201004-201401

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iZRR70200808-201004

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iZRR70..GEN201004-201401

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-28130iZRR70200808-201004

sub43410-28131

main43410-44040iZRR70..S201004-201304

main43410-44041iZRR70..S201305-201401

sub43410-44042

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41003iZRR70..IDN201004

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iZRR70200808-201004

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40026iZRR70200808-201004

main90311-40041iZRR70201303

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-38015iZRR70..IDN201004

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iZRR70200808-201004

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20040iZRR70200808-200809

main42345-42100iZRR70..GEN201004-201401

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-28020iZRR70200808-200809

main42345-42090iZRR70..GEN201004-201401

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iZRR70200808-201004

TYPE A:REFER ILLUST.

main90949-01559iZRR70200808-201004

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iZRR70..GEN201004-201401

43457BRACKET, DRIVE SHAFT BEARING

main43457-28060iZRR70..GEN201004-201401

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iZRR70200808-201004

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iZRR70..GEN201004-201401

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iZRR70200808-201004

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49365iZRR70..S201004-201401

main43470-80178iZRR70200808-201004

main43470-80349iZRR70201411

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-28010iZRR70..S201004-201401

sub43474-28030

main43474-44010iZRR70..E201004-201411

main43474-44020iZRR70201411

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iZRR70200808-201004

23 parts on this diagram · 2 diagrams in section
