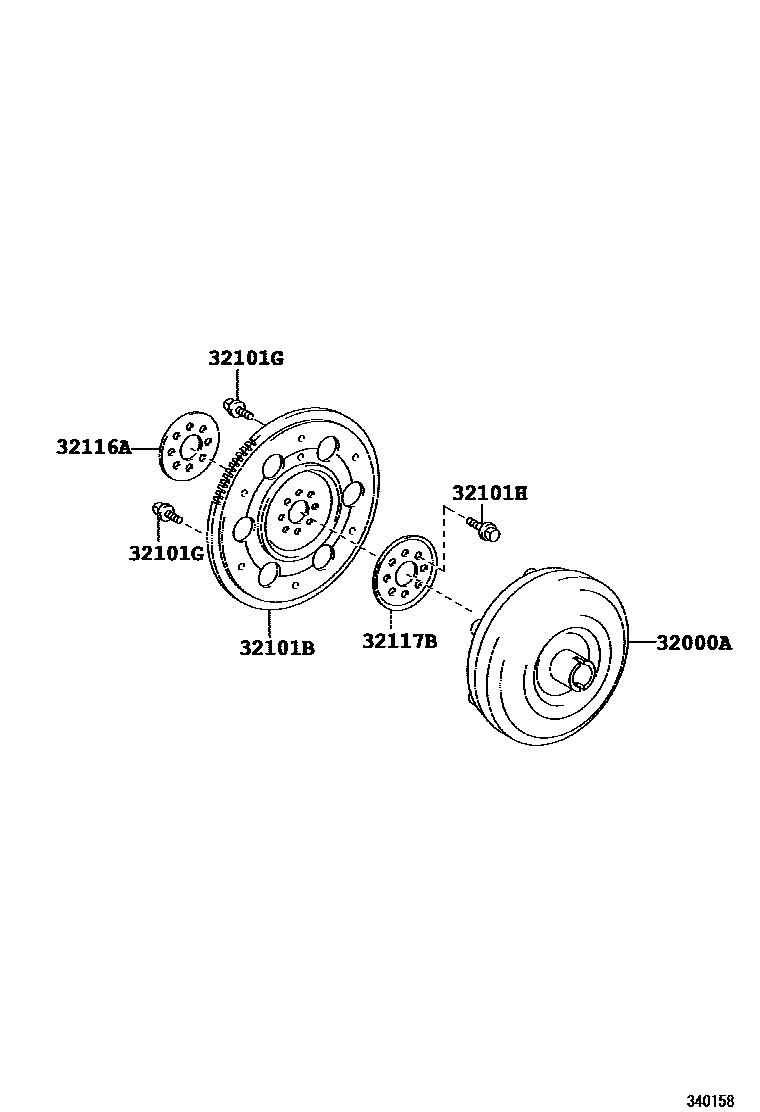

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-28180iZRR70200808-201612

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28050iZRR70..IDN200808-201401

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iZRR70200808-201401

*9-1.25PX12.4-7.3,BLACK

main90119-09025iZRR70..IDN200808-201401

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRR70200808-201004

(J)

main90105-10048iZRR70..GEN201004-201401

main90105-A0022iZRR70200808-201003

(L)

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRR70..GEN200808-201401

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRR70200808-201401

6 parts on this diagram · 1 diagram in section
