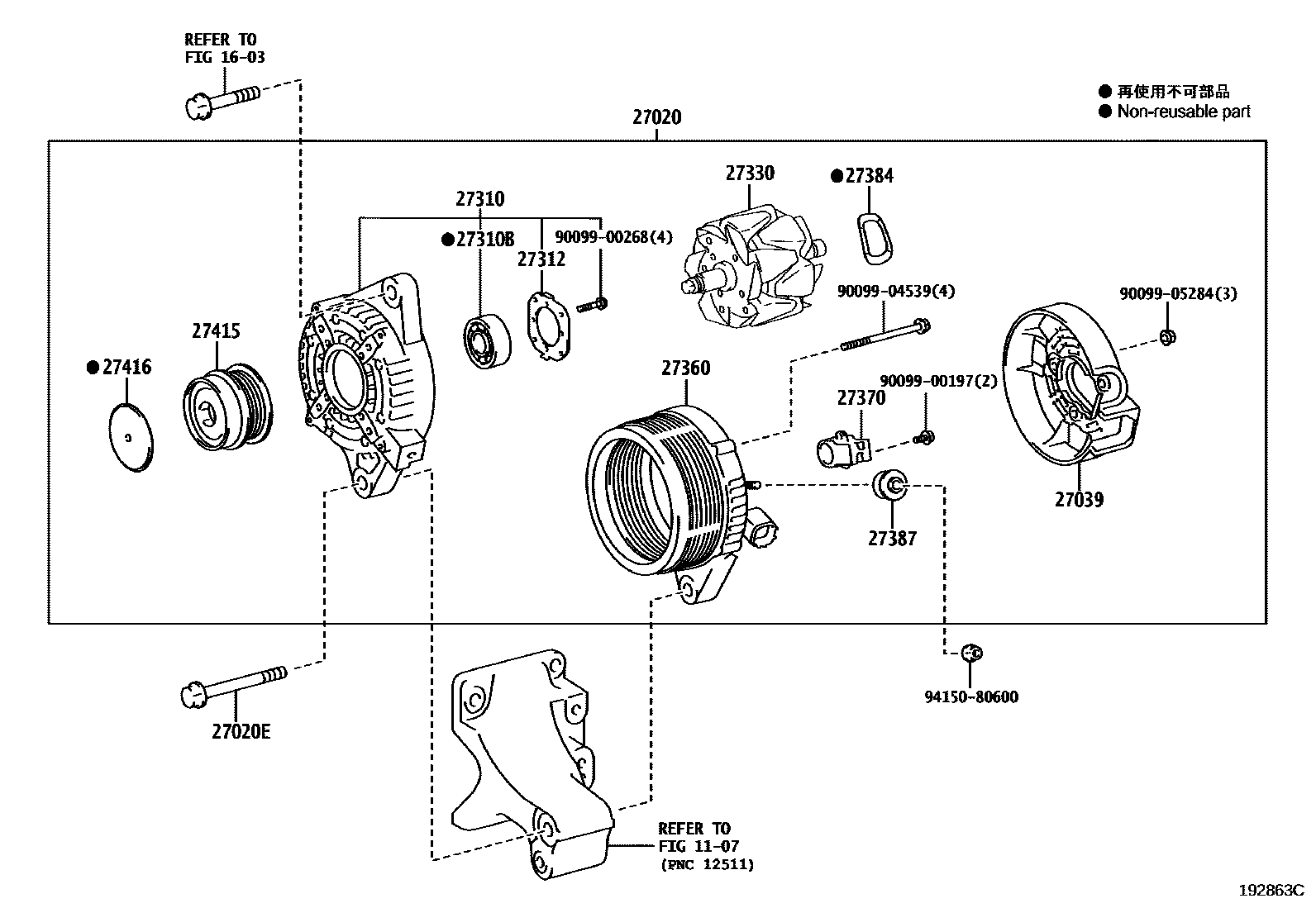

ALTERNATOR

1107

1603

27020ALTERNATOR ASSY

main27060-37030i3ZRFE..ZRR70200808-200902

12V 130A

sub27060-37031

main27060-37031i3ZRFE..ZRR70200903-201401

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i3ZRFE..ZRR70200808-201401

27039COVER, ALTERNATOR REAR END

main27039-26170i3ZRFE..ZRR70200808-200902

main27039-31390i3ZRFE..ZRR70200902-201401

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-37030i3ZRFE..ZRR70200808-201401

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i3ZRFE..ZRR70200808-201401

27312PLATE, RETAINER

main27312-72100i3ZRFE..ZRR70200808-201401

27330ROTOR ASSY, ALTERNATOR

main27330-33090i3ZRFE..ZRR70200808-201401

27360COIL ASSY, ALTERNATOR

main27360-37040i3ZRFE..ZRR70200808-201401

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i3ZRFE..ZRR70200808-201401

27384WASHER

main27384-50030i3ZRFE..ZRR70200808-201401

27387INSULATOR, TERMINAL

main27387-20130i3ZRFE..ZRR70200808-201401

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T010i3ZRFE..ZRR70200808-200902

sub27415-0T011

main27415-0T011i3ZRFE..ZRR70200903-201307

sub27415-0T060

sub27416-0W050

main27415-0T060i3ZRFAE..ZRR70201308-201612

27416CAP, ALTERNATOR PULLEY

main27416-0W020i3ZRFE..ZRR70200808-201307

main27416-0W050i3ZRFAE..ZRR70201308-201612

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415080600

main94150-80600

20 parts on this diagram · 1 diagram in section
