AIR CLEANER

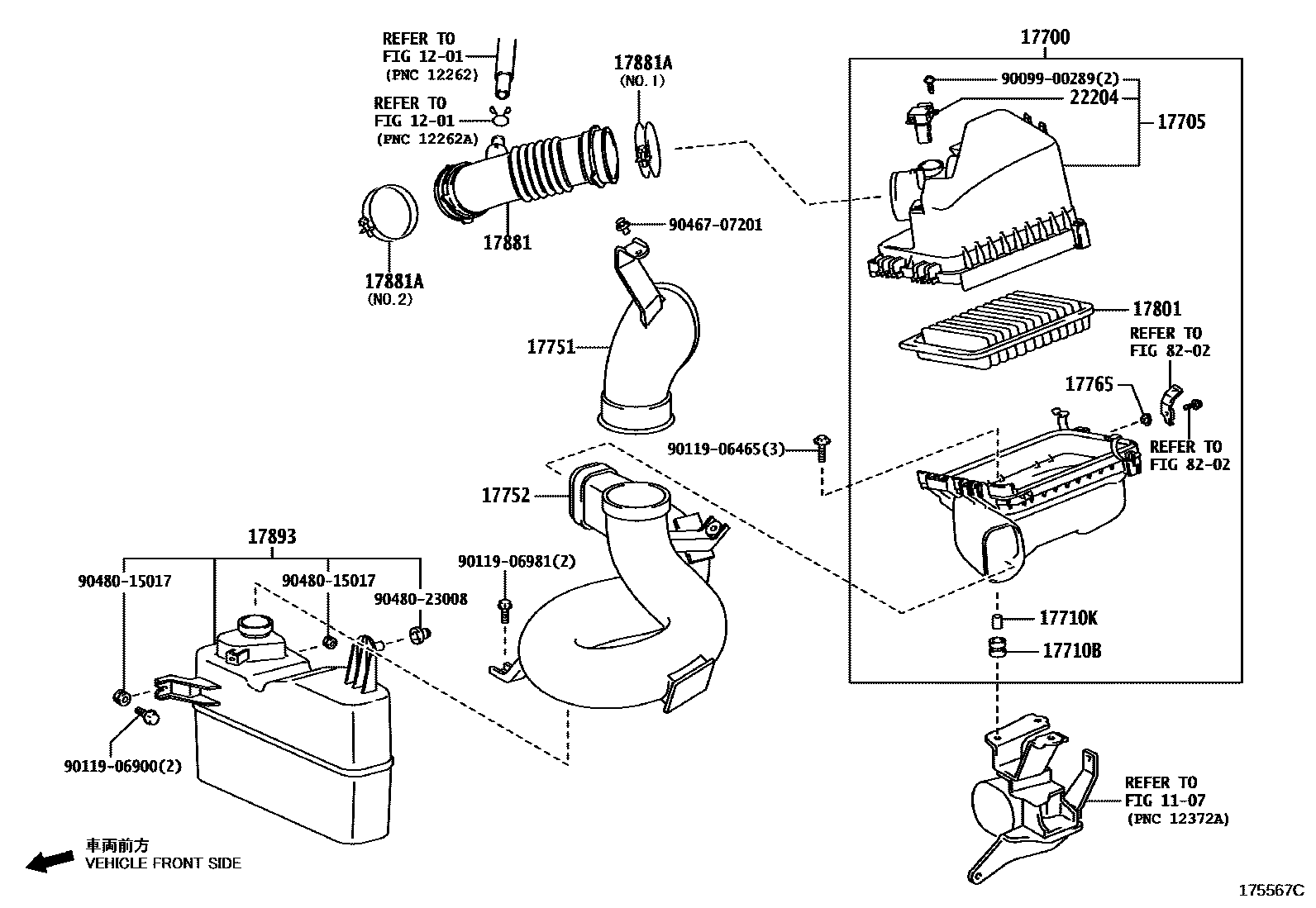

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-37210i200808-200811

main17700-37211i200812-200904

main17700-37280i200904-201004

17705CAP SUB-ASSY, AIR CLEANER

main17705-37080i200808-200811

main17705-37081i200812-201004

main17705-37082i201104-201401

17710BGROMMET

main90480-11016×3i200808-200904

17710KCOLLAR(FOR AIR CLEANER)

main90387-09064×3i200808-200904

17751INLET, AIR CLEANER, NO.1

main17751-37030i200808-201004

main17751-37090i201004-201401

17752INLET, AIR CLEANER, NO.2

main17752-37020i200808-201004

main17752-37110i201004-201401

17765STAY, AIR CLEANER, NO.1

main17706-22010i200808-200904

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21050i201004-201401

17881HOSE, AIR CLEANER, NO.1

main17880-37060i201004-201401

main17880-37070i200808-201004

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90466-62002i201004

NO.2

main96111-10750i201004

NO.1

17893RESONATOR, INTAKE AIR

main17893-37030i201004

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i201104

MARK 22204-0T040

main22204-0V010i201104

MARK 22204-0V010

main22204-0V020i201104-201401

MARK 22204-0V020

main22204-28010i201104

MARK 22204-28010

main22204-37010i201004-201104

8202WIRING & CLAMP

→ Go to FIG 82-02

9009900289

main90099-00289

9011906465

main90119-06465

9011906900

main90119-06900

9011906981

main90119-06981

9046707201

main90467-07201

9048015017

main90480-15017

9048023008

main90480-23008

22 parts on this diagram · 2 diagrams in section
