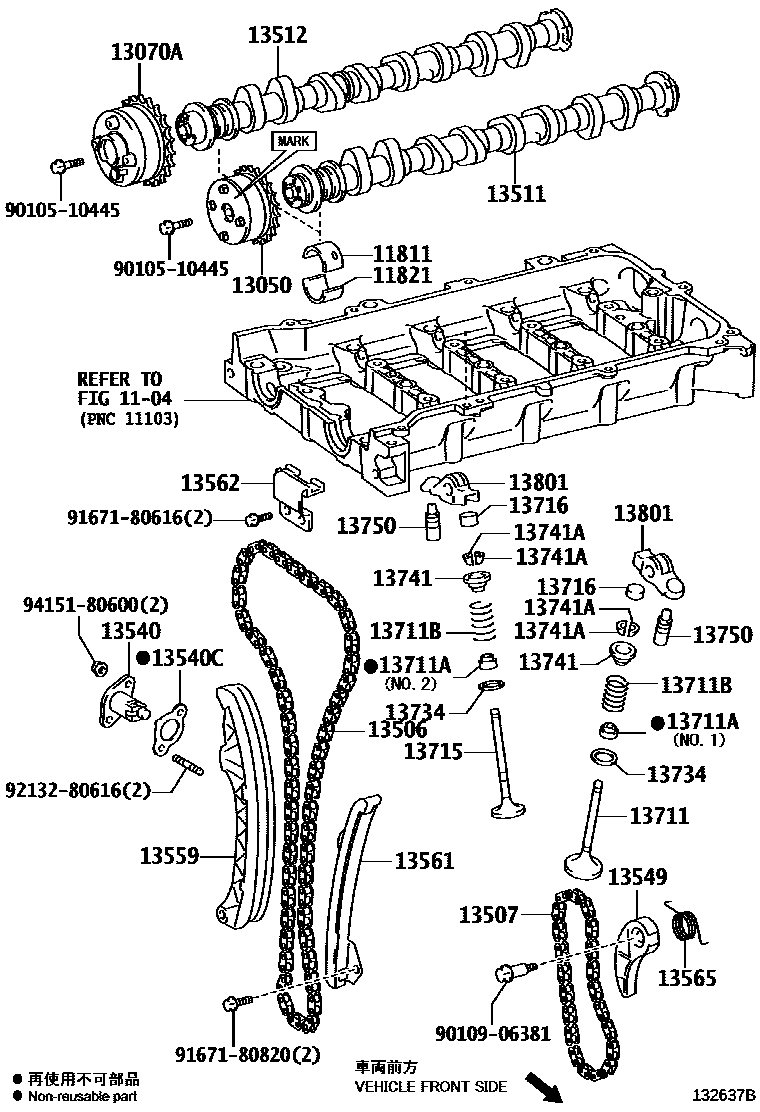

CAMSHAFT & VALVE
1104CYLINDER HEAD
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
MARK 13050-0T010
MARK 13050-0T011
MARK 13050-0T021
MARK 13050-0T022
W/O PART NO. MARK
W/O PART NO. MARK
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13565SPRING, CHAIN DAMPER
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
L=51.88
13715VALVE, EXHAUST
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010510445
main90105-10445
9010906381
main90109-06381
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
32 parts on this diagram · 2 diagrams in section
