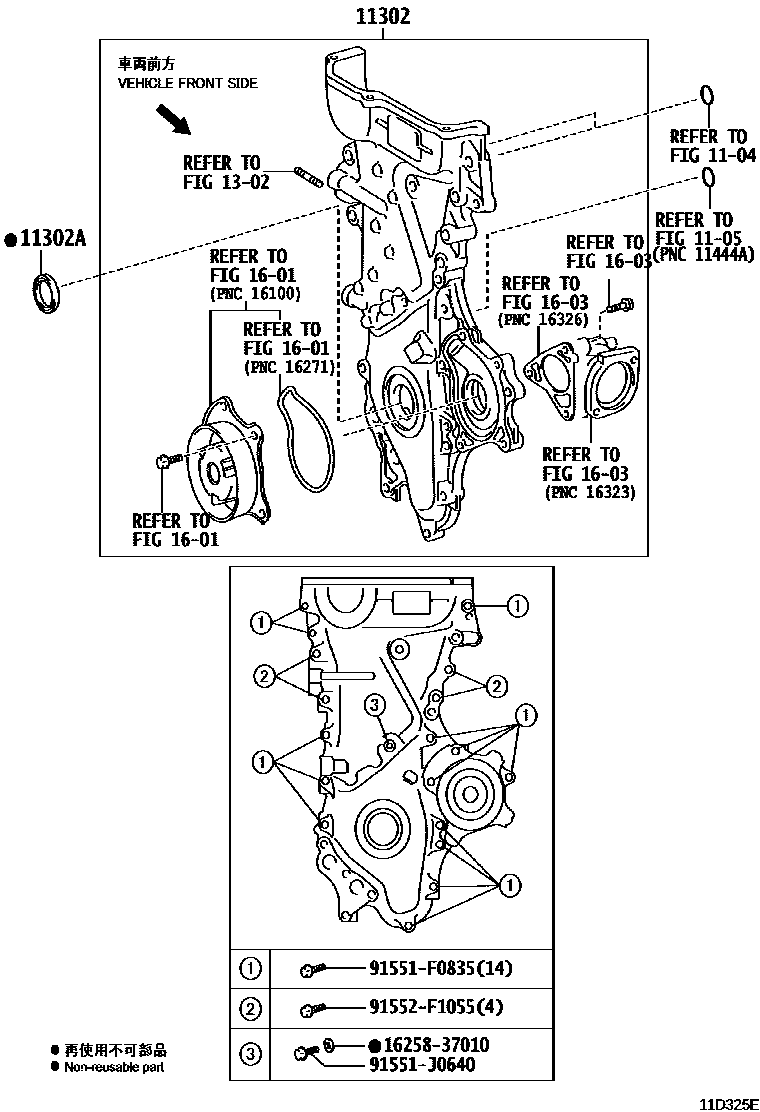

TIMING GEAR COVER & REAR END PLATE

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37031i3ZRFE..ZRR70200808-201004

main11310-37032i3ZRFAE..ZRR70..GEN201201-201401

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i3ZRFE..ZRR70200808-201004

main90311-38096i3ZRFAE..ZRR70..GEN201110-201401

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

11 parts on this diagram · 1 diagram in section
