MIRROR

0001 1 0002 1

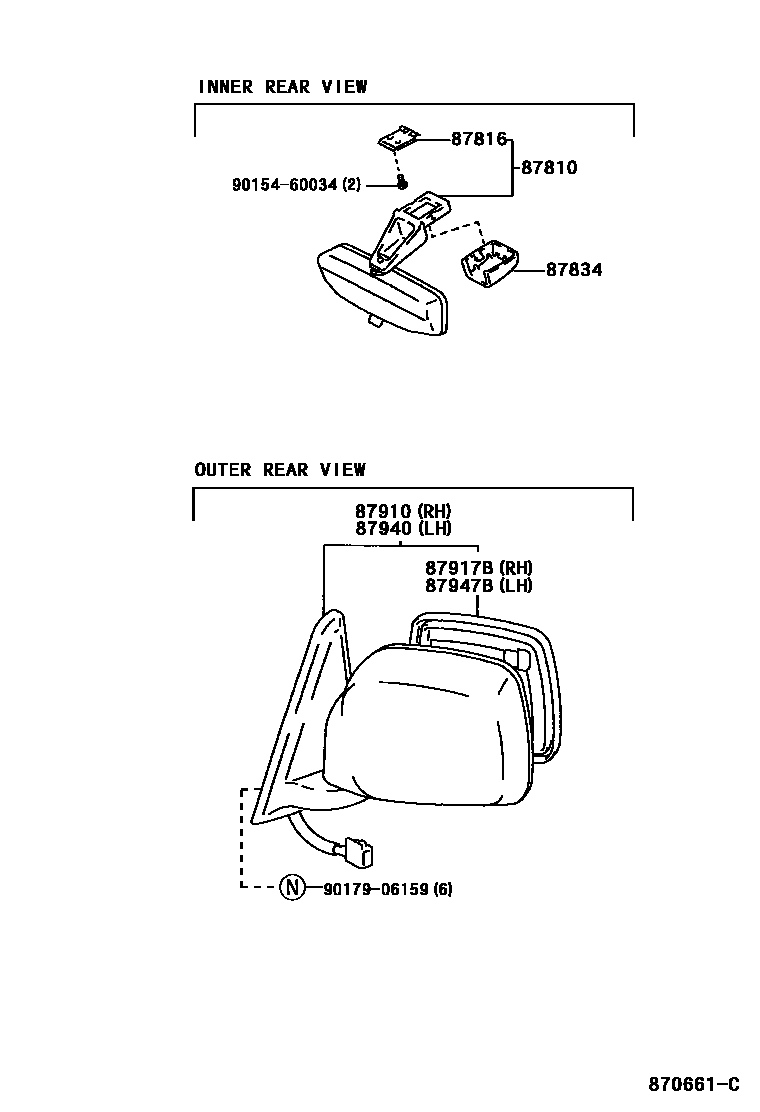

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-B2iCR41,KR4#..GEN199611-199801

MOON MIST,TRIM1#

main87810-12240-B4iCR41,KR4#;SR40..GEN199611-199801

W(DAY & NIGHT MIRROR),MOON MIST,TRIM1#

main87810-12270-B6iCR42200008-200412

LT.GRAY,TRIM1#

main87810-12280-B5iCR41199812-200112

W(REAR UNDER MIRROR),LT.GRAY,TRIM1#

main87810-28110-B0iCR41,KR4#,SR40199801-199812

W(DAY & NIGHT MIRROR),MOON MIST,TRIM1#

main87810-28120-B0iCR41,KR4#..GEN199801-199812

MOON MIST,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iKR42199812-200310

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B5iCR41,KR4#,SR40199611-199812

MOON MIST,TRIM1#

main87834-12030-B8iSR40199812-200111

LT.GRAY,TRIM1#

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28400iSR40..GEN199611-199801

W(ELECTRIC REMOTE CONTOROL MIRROR)

main87910-28420iCR41,KR4#,SR40..GEN199611-199812

main87910-28430iKR42..ARL199812-200310

main87910-28480iSR40..GEN199812-200111

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-28540iSR40..ARL199812-200111

87917BMIRROR, OUTER REAR VIEW, RH

main87917-60520iKR42..ARL199812-200310

main87917-60540iCR4#,KR42,SR40..GEN199812-200412

main87931-28540iSR40..ARL199812-200111

main87931-60570iSR40..GEN199812-200111

W(ELECTRIC REMOTE CONTROL MIRROR)

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28410iSR40..GEN199611-199801

W(ELECTRIC REMOTE CONTOROL MIRROR)

main87940-28430iCR4#,KR42;SR40..GEN199812-200412

main87940-28480iSR40..GEN199812-200111

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-28540iSR40..ARL199812-200111

87947BMIRROR, OUTER REAR VIEW, LH

main87947-60480iCR41,KR4#,SR40199611-199812

main87961-60490iSR40..ARL199812-200111

main87961-60510iSR40..GEN199611-199812

W(ELECTRIC REMOTE CONTROL MIRROR)

9015460034

main90154-60034

9017906159

main90179-06159

9 parts on this diagram · 2 diagrams in section
